Specifications
Cutter Suction Dredger Commins Engine Avaliable1.PLC control
2.Warman pump
3.ISO9001
4.Hydraulic control system
cutter suction dredger in China with dredging depth 15m
1.Features
a. It is suitable for the field of the gobi desert conditions such as the ancient river bed.
b.Design according to your requriments.
c.It is highly efficient with low cost, a good underwater dredging machine.
d.Simple,rapid assembly and dismantling
2.Basic parameter
| Basic CSD Parameter | |||||||
| Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
| Dredger Body | |||||||
| Dimensions(L*W*H)m | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | |||||||
| Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | |||||||
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Cutter head | |||||||
| Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
| Winch(hydraulic) | |||||||
| Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
| Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
| Spuds | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |
3. equipment component show
Cutter head
Winch

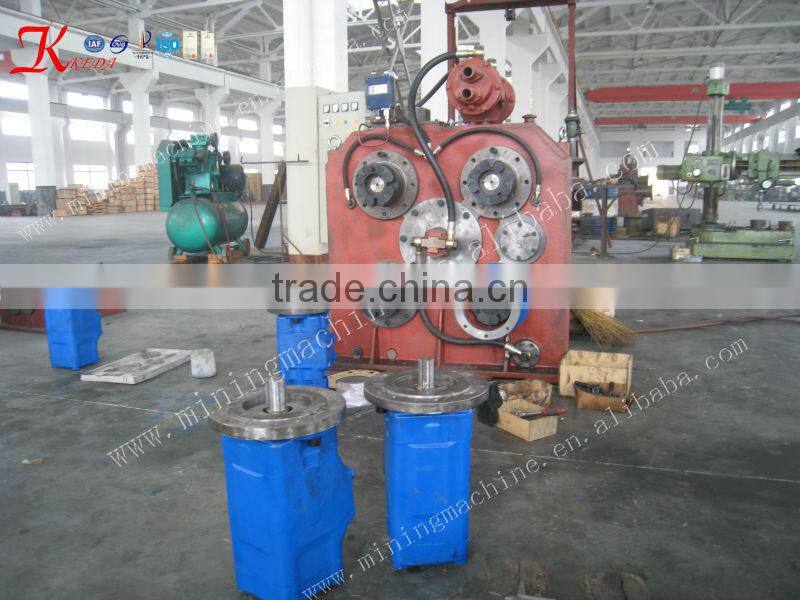

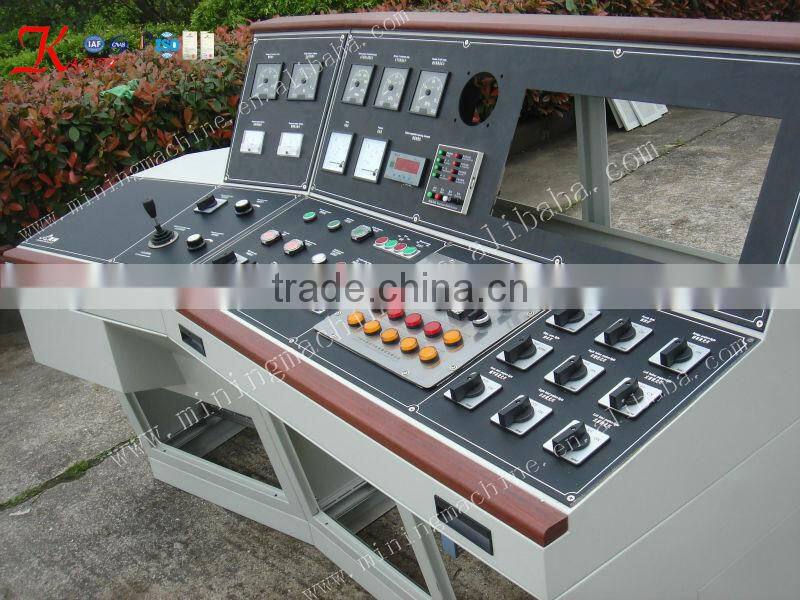

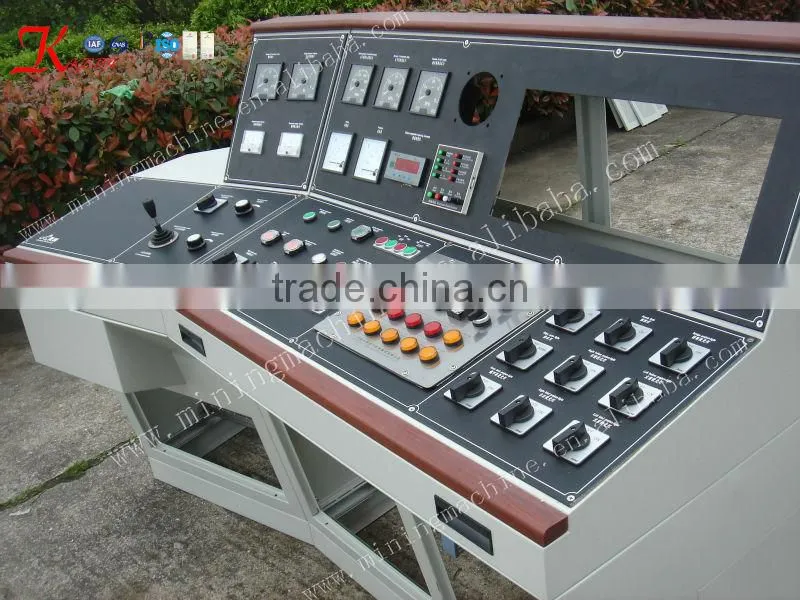

Hydraulic Control System

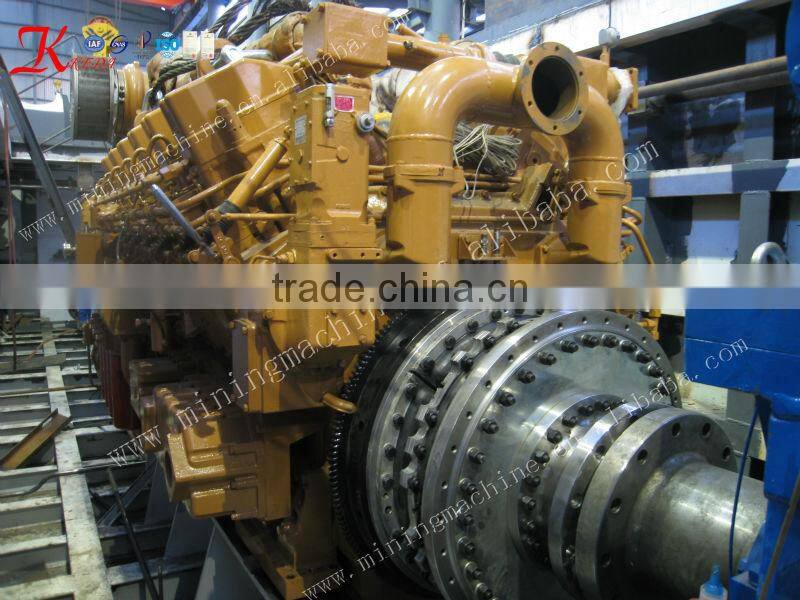

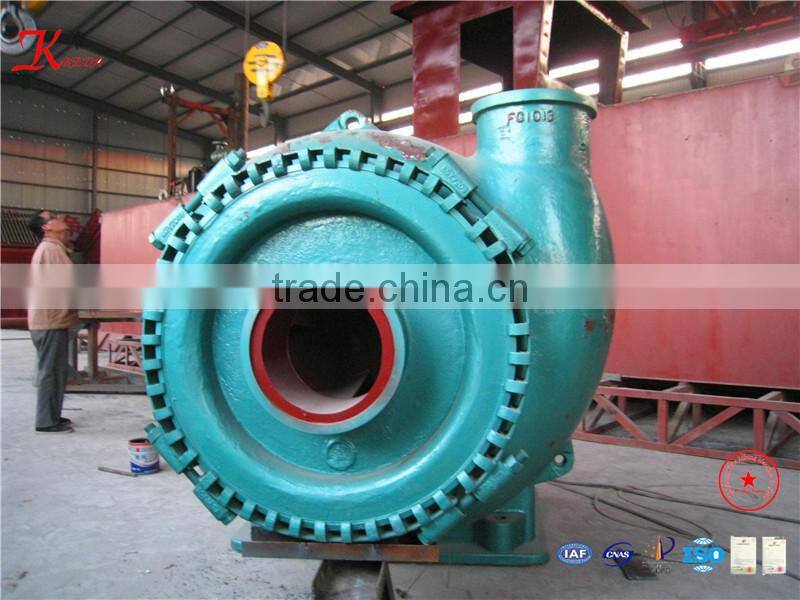

Engine and Pump

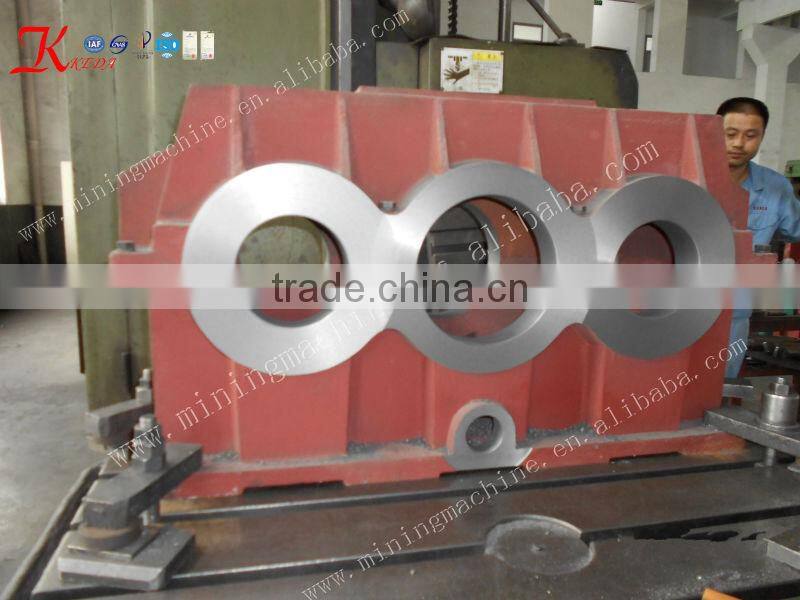

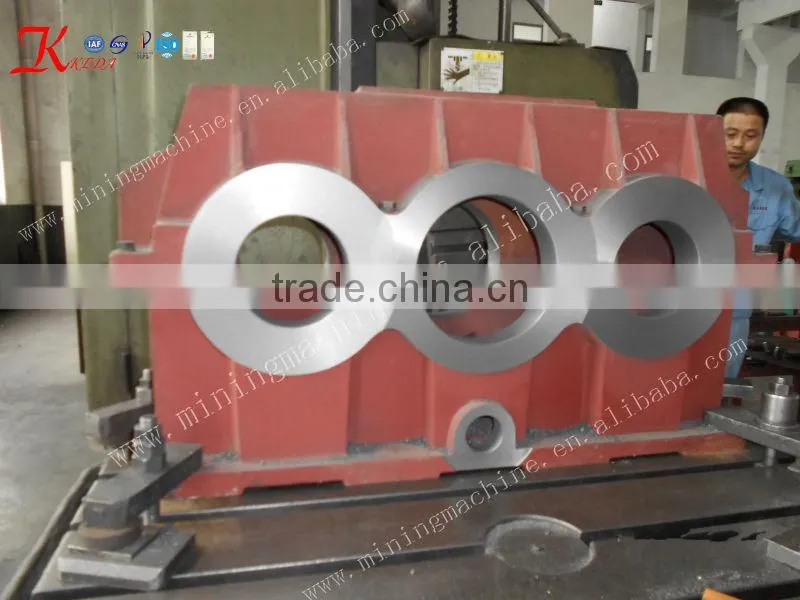

Gear Box

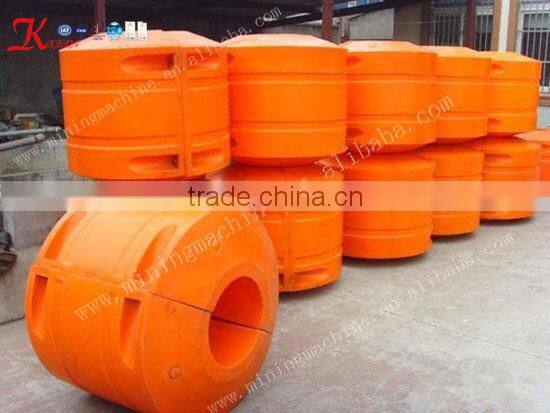

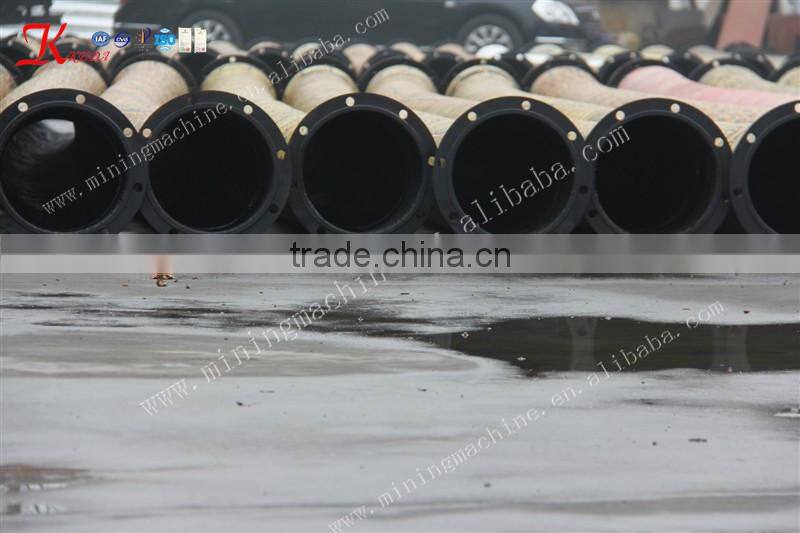

Rubber hose,float and PE pipeline
4.Company Introduction
1). We are professional cutter suction dredger manufacture with patent in china.
2).All products have been certified by ISO9001-2008. and have been exported to Ghana, Bangladesh, Sultan, Korea and so on.

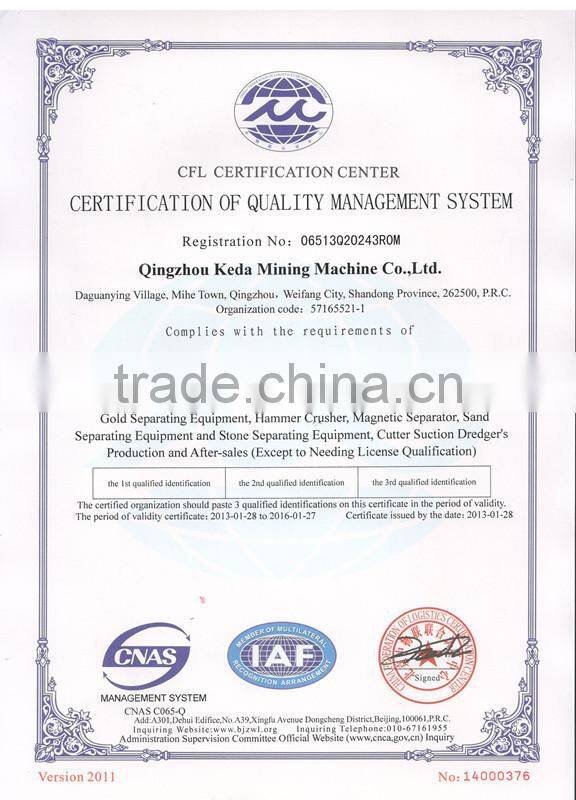

Certificate files
5.Contact Us
Welcome to visit our factory and please feel free to contact me.
Peter Pan
Skype:kedamachinery03
E-mail:sales03(@)
