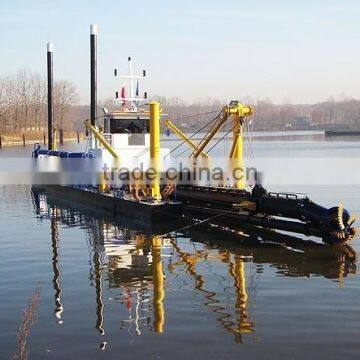

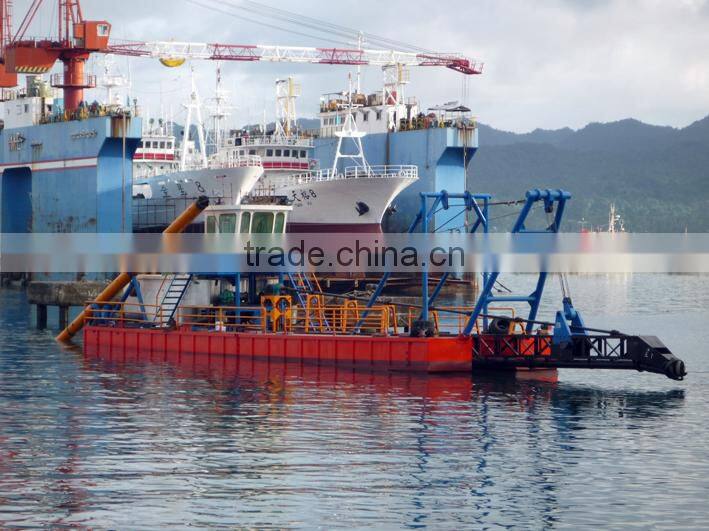

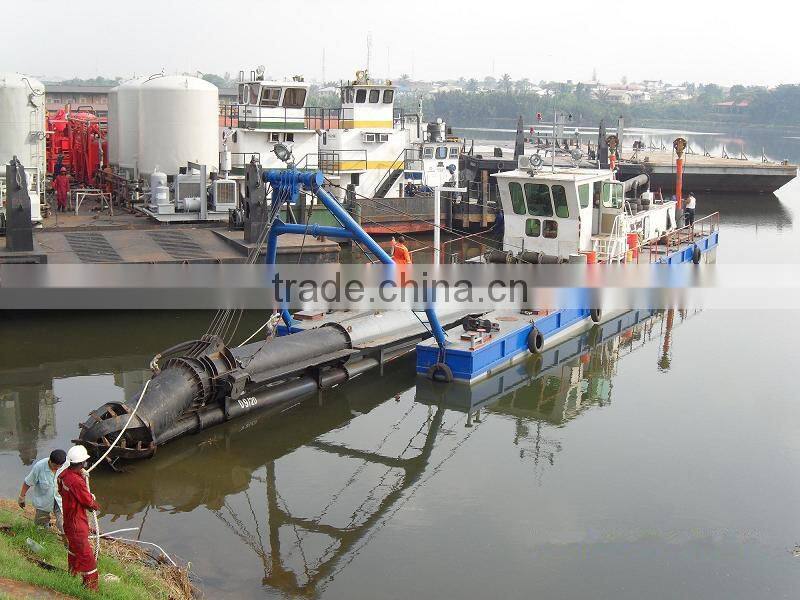

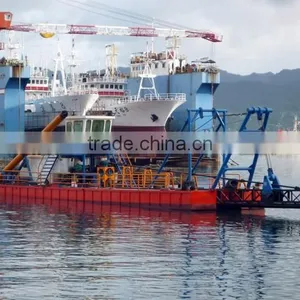

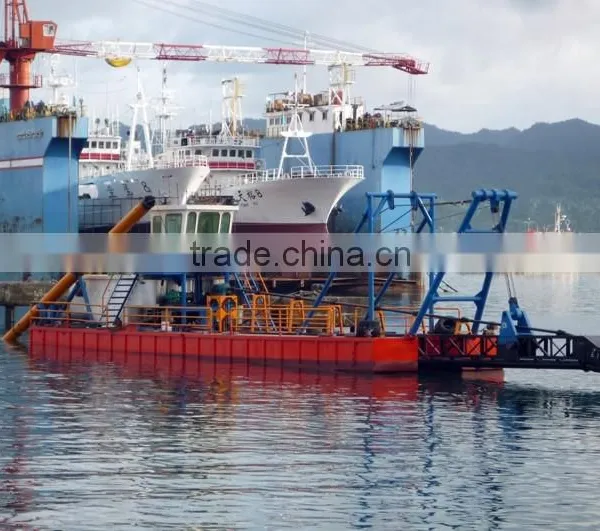

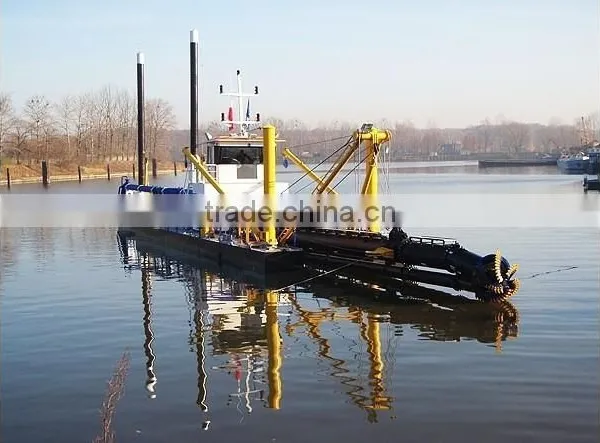

Hydraulic River Sand Dredger
A: --The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom.
B: --Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
Those are just basic parameters,please be noted that we can produce according toyour requirement!!
| Model | KDCSD200 | KDCSD260 |
| Dredger Body | ||
| Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 |
| Dredging data | ||
| Standard dredging depth | 6-7m | 6-8m |
| Pump model | 8/6” | 10/8” |
| Water flow | 450m3/h | 800m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 |
| Devices | ||
| Total power KW | 176kw | 258kw |
| Generator set(kw) | 24 | 24 |
| Cutter head | ||
| Diameter (mm) | 850-30 | 950-40 |
| Winch(hydraulic) | ||
| Ladder winches | JC-3000 | JC-4000 |
| Swing winch | JC-3000 | JC-4000 |
| Spuds | ||
| Quantity | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 |
| Spuds weight/pic | 900kg | 1500kg |

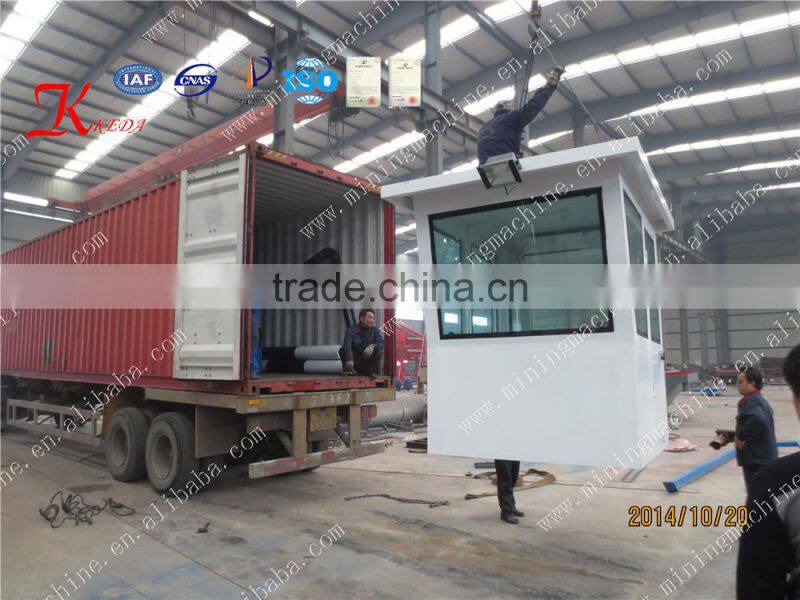

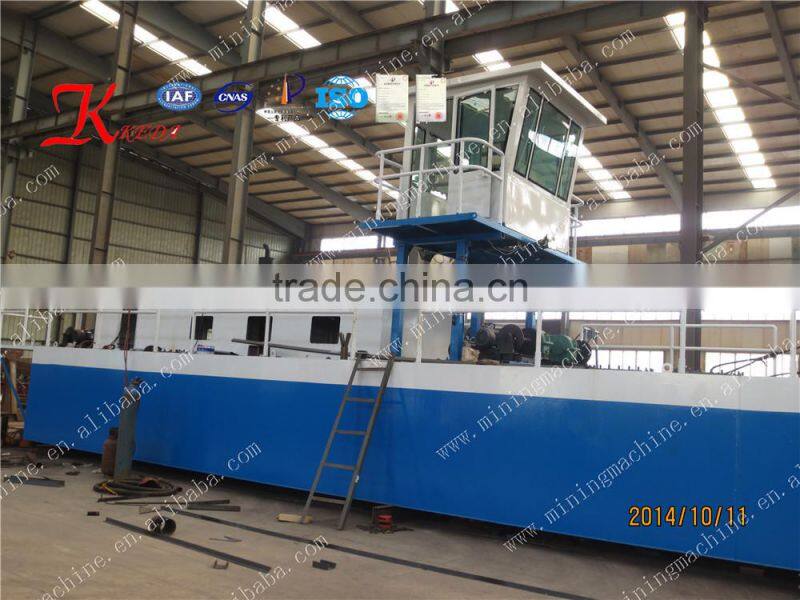

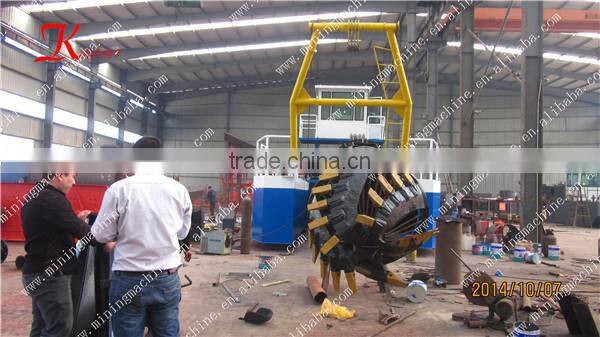

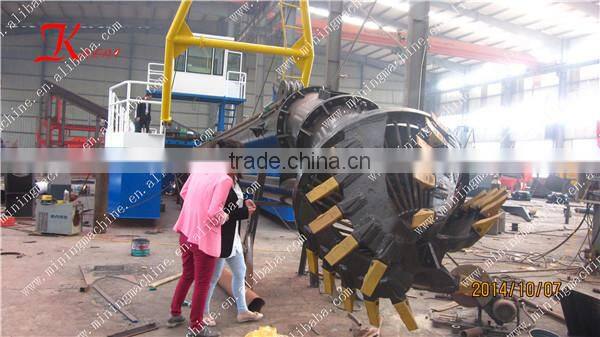

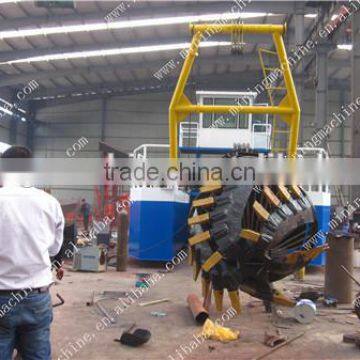

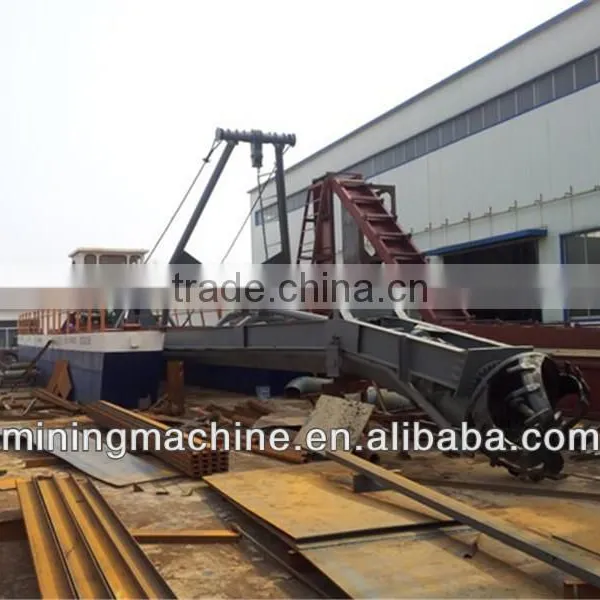

Dredgers in the workshop
KEDA Mining Machine Co.,Ltd.
- Professional and leading manufacturer
- Equipped with more than 10,000m2 area and many kinds of advanced facilities to build dredger and other equipment.
- Dredgers had been exported many countries such as Africa,North Asia,Northeast Asia and so on.
- Experienced techonolgy team for designing and consulting.
1.Is there any stone in the river ? If yes, what is the biggest size?
2.What is the Max. capacity do you want ?
3.What is the Max .dredging depth do you want ? (from the surface of the river)
4.What is the delivery distance ?
5.What is the vertical dimension between the working site and the sand discharging place ?
Contact Person
Eden Lee
Mobile:0086-536-2105419
skype:kedamachinery04
