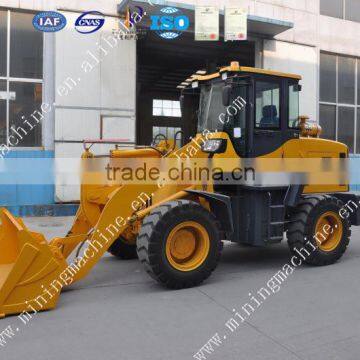

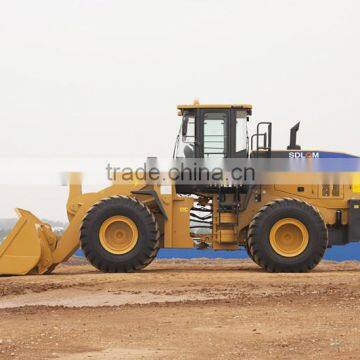

Front End Loader With Long Arm(5ton)

 1. Basic Parameter:

 2.Description:

Strong structure
Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
Large distance between up and down articulated boards, and large maintenance space. Resolve the load horizontally and vertically efficiently. Easier to access, the machine has more carrying capacity and larger opening space.
Each part passes the scientific analysis with professional stress analysis software to ensure that the reliability and carrying capacity of the structural parts could reach the design standard and meet the requirement of the tough condition.

Excellent performance
The strong breakout force of 17 tons and strong traction of 17.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
Quick action: the total time of three devices is only 10.3s, and the speed is 11.5 km/hour during the operation.
Strong adaptation to the work site: centered design, small turning raidus. No speed difference between front and rear wheels. The tyre is not easily worn.

Experienced drive parts
Famous brand engine; The machine adopts the latest planetary transmission with multiple unique technologies, featuring high reliability and strong adaptation to heavy load; the reinforced drive shaft provides more reliable drive; the powertrain assembly could provide the powerful guarantee for the machine to operate efficiently and reliably.
With large power and high torque conservation, the famous brand engine features strong power and adaption.
The transmission of 2BS315A (D) is superior in the efficiency delivery and overload adaption.
The drive shaft flange adopts DIN and SAE standard to increase the bolt circle diameter, and adopts the self-locking nut for connection and fixing, providing more reliable drive.
The reinforced drive axle features large carrying capacity, high reliability and conveninent maintenance.
With the special tyre face design, glue stock formula and strong body structure, the tyre of domestic famous brand features excellent heat-resisting and abrasion resistance performance, adapting to the mine, construction sites, and hydropower.

Comfortable and safe driving space
Provide the best operation environment for the user with the design concept of the people oriented.
•The luxurious cab features large space and wide visibility.
•Elegant adjustable instrument panel and comfortable operation.
Electronic control planetary box, air conditioner, radio with MP3 function and speaker could be equipped.
The operating floor takes the measure of punching antiskid. The all-round handrails ensure the safe operation. With the antiskidding groove, the ladder step features wide ladder face, guaranteeing the safety operation, and easily getting on and off.

Convenient maintenance for construction machinery
Convenient and practical maintenance guarantees the service life of each part to improve the usage economics of the machines.
The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
Optimized brake caliper structure, more convenient for the maintenance.
The remote oil and water drainage and centered lubrication provide more conveninence.
The hydraulic oil tank loader adopts independent oil return chamber to overcome the issue of hydraulic system cleaning or replacement. The oil enters the oil tank through the filter. It is not necessary to drain the oil when replacing the filter. The service and maintenance is fast and all-round.

3.Detial Image for the loader:

	Cabin: Closed cab. Roomy, quiet cab with readable instrumentation and equipment control console and shock absorbing seat provides  the best possible working environment for the operator
	Engine: Weichai Huafeng 4105 72KW. Speed: 2400rpm. Vertical, in-line, water cooled, 4-stroke diesel engine. 4 Cylinders
	Brake system:air assist disc brake on 4 wheels
	Tyre: Bias tyre 16/70-20.
	Lamp: Adopt LED light. Beautiful appearance. Long life span.

1) We are Factory (Not Dealer)

All machines from Qingzhou Keda Mining Machine CO., LTD. They are made by ourselves with lower price, good quality and we assure for full after sales service.

2) Trainning & Service

Give us your requirement and here we provide you with the prophase plan, process flow design and manufacture equipment according to your specific demand.

3) Excellent after-sales service

To establish long-term business ship, we will regularly pay reture visit to our clients. In addition, we also offer one year warrantee to make sure your equipment runs properly. We always keep certain inventory level of spare parts, which means the replacements could be shipped to you when you are in need.

In order to give you a more better service, could you let me know below questions:

1) What will you use the loader for? Sand? Mud? Stone?

2) Bucket capacity  you need(m3)?

3) Which engine brand do you prefer?

4) Dumping clearance(m)?

Sincerely welcome you to visit our factory. If need more details, please feel free to contact us any time!
