Specifications
Small Gold Dredging Equipment1.1 year warranty
2.ISO9001
3.5-10 years service life
4.Easy to transportation

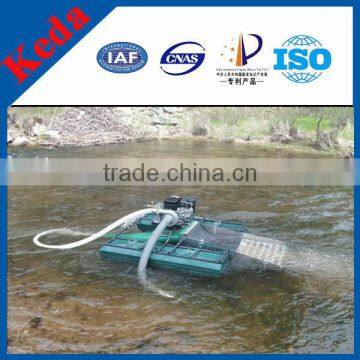

Beneficiation River Small Gold Dredging Equipment
1.Feature
1. It is widely used for working of gold mining in mini river channel.
2. Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.
3. The equipment is small, light weight, easy to assemble, easy to transport.
2.Introduction
The small gold dredging equipment is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.
3.Basic parameter
Our company can supply kinds of type dredger according to customer’s requires. Flowing is the detail parameters:
Small Gold Dredging Equipment | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 8m | 8m | 8m |
Work capacity | 6m³/h | 10m³/h | 15m³/h |
Gold chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |
4.Small Gold Dredging Equipment
Float
5.Guarantee and after-sale service
1).1 year warranty for import parts.
2).Profession technology provide installation,commissioning services.
3).24 hours technical support by e-mail or telephone.
6.Our Company
1). We are profession small gold dredging equipment manufacture in china.
2).All products have been certified by ISO9001-2008. and have been exported to Ghana, Bangladesh, Sultan, Korea and so on.
.
7.Thank you for your interest
Could you tell me your situation and requires,such as:
1).The working capacity you want to get?
2).What's is the type that you have a interest?
It is appreciate that you can discuss it with me,hope i can assist you
8.Contact to me
June Ma
Skype:kedamachinery02
Tel/Fax:0086-536-3880600
Mob:0086-18353690657
If you want to know more,welcome to our company and contact to me,we will give you the best service.
Thanks for your browse!
