Specifications
Mini Portable Dredger1.Easy to assembly
2.ISO9001
3.1 year warranty
4.Good after-sales service
Beneficiation River Mini Portable Dredger For Sales
1.Beneficiation River Mini Portable Dredger,Feature
1. It is widely used for working of gold mining in mini river channel.

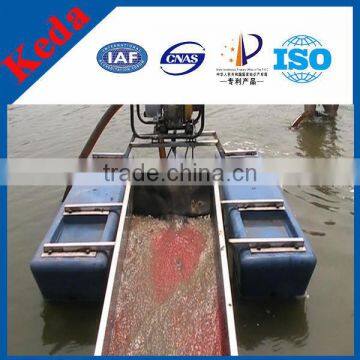

2. Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.
3. The equipment is small, light weight, easy to assemble, easy to transport.
2.Beneficiation River Mini Portable Dredger,Basic parameter
Our company can supply kinds of type dredger according to customer’s requires. Flowing is the detail parameters:
Mini Portable Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 8m | 8m | 8m |
Work capacity | 6m³/h | 10m³/h | 15m³/h |
Gold chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |
3.Beneficiation River Mini Portable Dredger,Introduction
The mini portable dredger is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.
Float
4.Beneficiation River Mini Portable Dredger,Guarantee and after-sale service
1).1 year warranty for import parts.
2).Profession technology provide installation,commissioning services.
3).24 hours technical support by e-mail or telephone.
6.Beneficiation River Mini Portable Dredger,Our Company
1). We are profession mini portable dredger manufacture in china,other main product are cutter suction dredger and kinds of gold mining machine.
2).All products have been certified by ISO9001-2008. and have been exported to Ghana, Bangladesh, Sultan, Korea and so on.
.
7.Thank you for your interest ,It is appreciate that you could send me a inquiry
Could you tell me your situation and requires,such as:
1).The working capacity you want to get?
2).What's is the type that you have a interest.
It is appreciate that you can discuss it with me,hope i can assist you
8.Contact to me
June Ma
Qingzhou Keda Mining Machine Co,.Ltd.
Skype:kedamachinery02
E-mail:sales02(at)
Mob:0086-18353690657
If you want to know more,welcome to our company and contact to me,we will give you the best service.
Thanks for your browse!
