AMPHIBIOUS MULTIPURPOSE DREDGER WITH FACTORY PRICE
Brief Introduction:
Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:
Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
Self-propulsion with propellers;
Work stable, with spuds and support legs to keep balance;
High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
One person operation. Workers with excavator operation skills can operate easily after a little training;
Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
Lights on dredger are available to make sure constant work for maximum efficiency.
Parameter:
No. | Name | Specification | Remarks |
1 | Size(L*W*H) | 11*3.3*3.1m |
|
2 | Weight | 20t |
|
3 | Engine | Cummins Made In China |
|
Cooling type | Turbocharged and inter-cooled | ||
Power | 194kw (260hp) |
| |
Rotation speed | 2200r/min |
| |
Fuel tank | 2000L |
| |
Electric system | 24V |
| |
4 | Hydraulic System | Rexroth series Made In China | |
Axial piston pump A | For dredge pump and propeller | ||
Max. operating pressure | 25MPa |
| |
5 | Excavator |
|
|
Swinging angle | 180º |
| |
Bucket cylinder force | 80kn |
| |
Lifting capacity at max. reach | 22kn |
| |
Lifting capacity with Power Lift at max reach | 25kn |
| |
6 | Stabilizer |
|
|
Front stabilizer, max depth | 5m |
| |
Rear tilting stabilizer, max depth | 6m |
| |
7 | Hull | 8 compartments, corrosion resistant painting outside and inside, protective skid bars on bottom, slip-safe deck, handrails | |
8 | Operation Room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights | Self-propulsion, speed of 4 knots |
9 | Optional Equipment | Reamer pump, mud pipe, nozzle, rake, clam shell, vertical pile bucket, steel sheet pile head, maintenance crane, side pontoon | |
10 | Dredge Pump |
|
|
Outlet diameter | 250mm |
| |
Max. dredging depth | 6.5m |
| |
Max. discharging distance | 1500m |
| |
Water flow | 400m3/h | ||

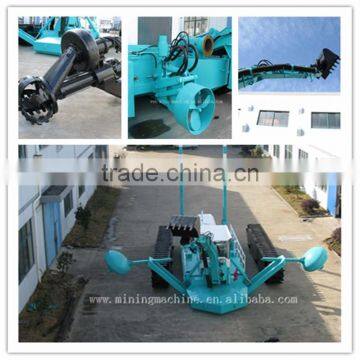

Picture showing

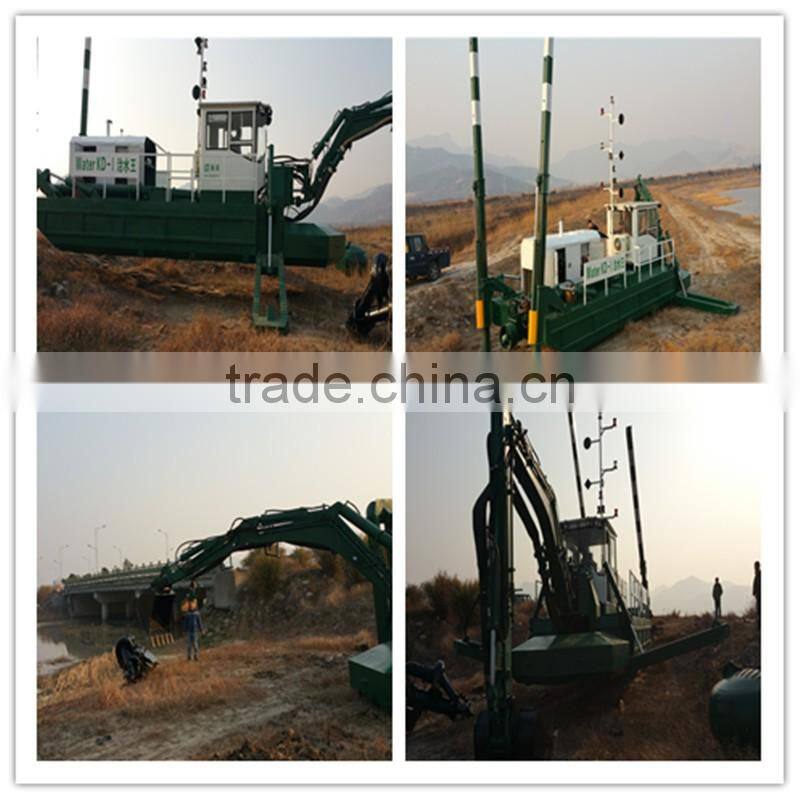

Working

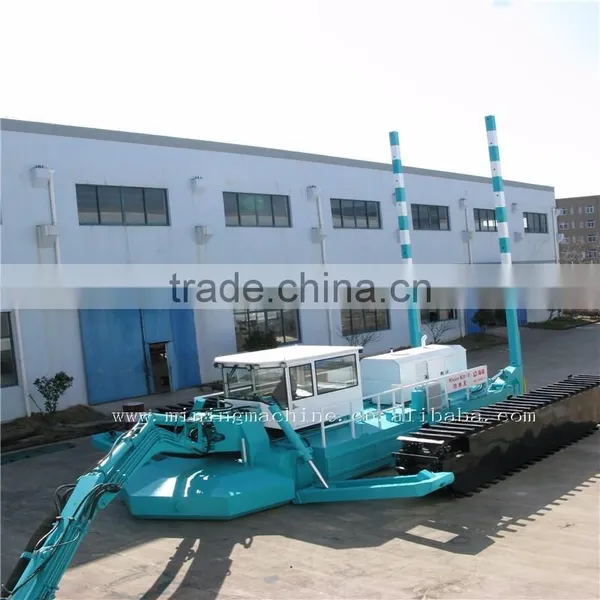

Shipping
About company information
Clients visiting
FAQ
1. Is our company a direct or indirect producer?
— Our company is a direct producer.
2. What's the main product of our company?
— Our main product is gold extracting equipment.
3. Are our products certified or patented?
— Yes, we only provide certified products.
4. Can we offer good after sale service?
— Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
Contact person
Catherine zhang
Email :sales04(at)
If you have any quuestion about our company or products, please feel free to contact with me, and i will try my best to make you satisfied.
