Water KD-1 multifunctional dredger
- 10 Set / Sets per Month
- Qingdao
- Credit Card
-
bucket wheel excavator 2000m3/h-7000m3/h
-
bucket wheel excavator 500m3/h-7000m3/h
-
bucket wheel excavator 500tph-2500tph
-
2021 Hot newest small 350 1000m3 Cutter Suction Dredger
-
Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
-
Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Other, Comprehensive water operating equipment | Power Type: | Diesel |
Dredging Depth: | 6.5 m | Draught: | 150 cm | Place of Origin: | Shandong, China |
Brand Name: | KEDA | Model Number: | Water KD-I | Dimension(L*W*H): | 11*3.3*3.1m |
Weight: | Approx. 20t | Certification: | ISO 9001:2008 Quality Certificate | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

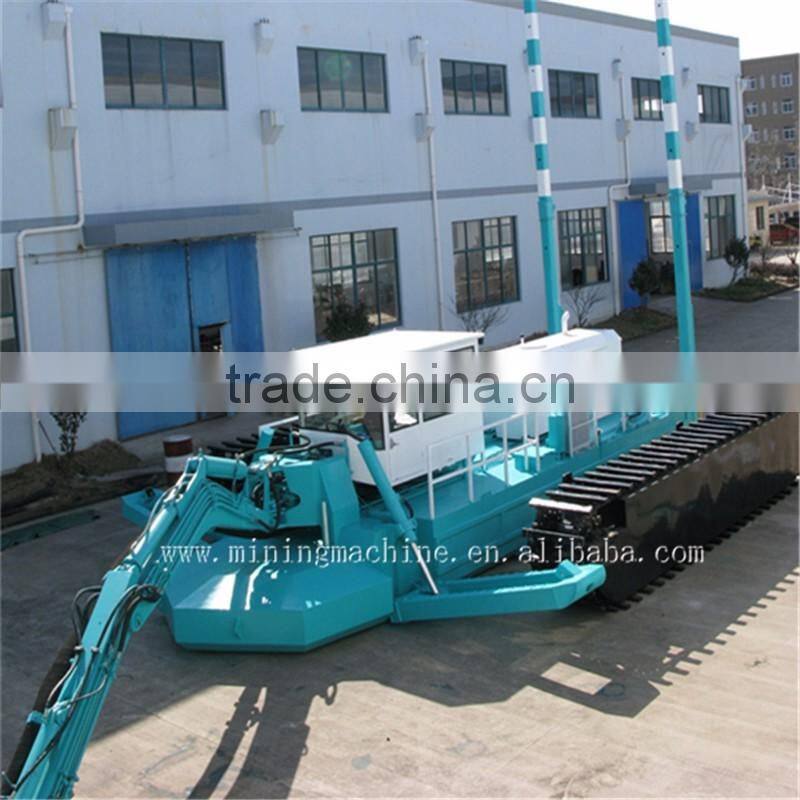

Water KD-1 multifunctional dredger
Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:
1. Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
2. Self-propulsion with propellers;
3. Work stable, with spuds and support legs to keep balance;
4. High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
5. One person operation. Workers with excavator operation skills can operate easily after a little training;
6.Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
7.Lights on dredger are available to make sure constant work for maximum efficiency.
The basic technical parameter
No. | Name | Specification | Remarks |
1 | Size(L*W*H) | 11*3.3*3.1m |
|
2 | Weight | 20t |
|
3 | Engine | Cummins Made In China |
|
Cooling type | Turbocharged and inter-cooled |
| |
Power | 194kw (260HP) |
| |
Rotation speed | 2200r/min |
| |
Fuel tank | 2000L |
| |
Electric system | 24V |
| |
4 | Hydraulic System | Rexroth series Made In China |
|
Axial piston pump A | For dredge pump and propeller |
| |
Max. operating pressure | 25MPa |
| |

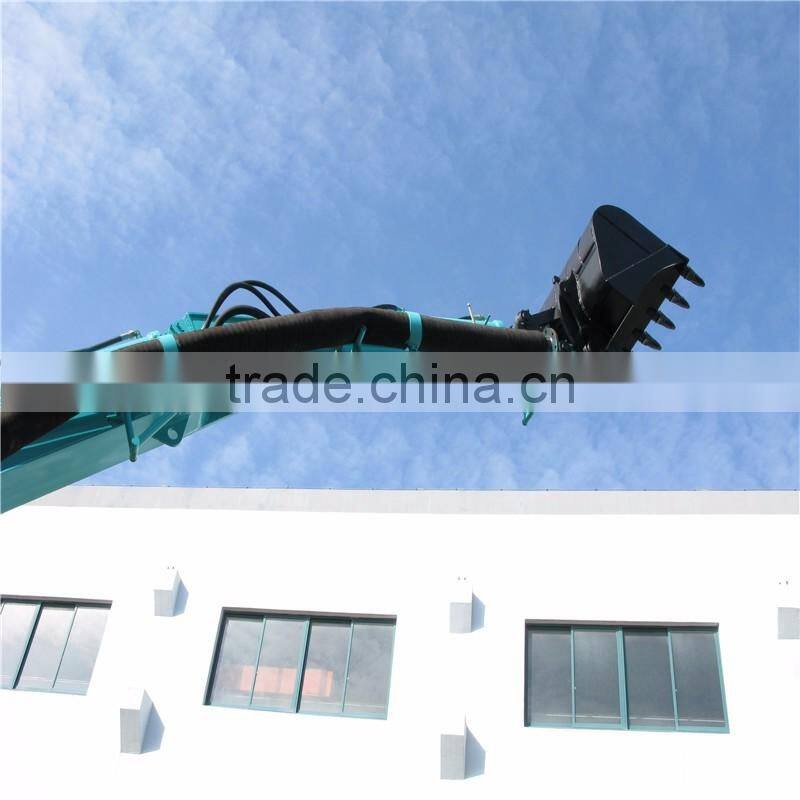

5 | Excavator | ||
Swinging angle | 180º |
| |
Bucket cylinder force | 80kn |
| |
Lifting capacity at max. reach | 22kn |
| |
Lifting capacity with Power Liftat max reach | 25kn |
| |
6 | Stabilizer | ||
Front stabilizer, max depth | 5m |
| |
Rear tilting stabilizer, max depth | 6m |
| |
7 | Hull | 8 compartments,corrosion resistant painting outside and inside,protective skid bars on bottom,slip-safe deck,handrails | |
8 | Operation Room | Adjustable chair,movable side-window, air condition,PLC system,signal lights and floodlights | Self-propulsion, speed of 4 knots |
9 | Optional Equipment | Reamer pump,mud pipe,nozzle,rake,clam shell, vertical pile bucket, steel sheet pile head,maintenance crane, side pontoon etc. | |
10 | Dredge Pump |
| |
Outlet diameter | 250mm |
| |
Max. dredging depth | 6.5m |
| |
Max.discharge distance | 1500m |
| |
Water flow | 400m3/h |
The Detailed Shows:
In working location
1.Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
3.After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Qingzhou Keda Mining Machine Co., Ltd is a factory with professional manufacture experience, compared with trading company, we have more advantages as below:
1)competitive price
2)customers can visit our factory and test our machines at anytime.
3)repairing the machine in time.
4)on-time delivery
