stainless steel cabinet oven
- 20 Set / Sets per Month
- Shanghai
- T/T
- Environmental Testing Walk In Humidity Chamber Door To Door Installation
- Factory Price Melt blown Fabric Production Equipment and Extruder Line
- X-ray Fuorescence Spectrometer
- Pressing Punching Servo Press Machine Positioning Straightening Calking
- Manual 2.5 D Video Measuring Machine 92 mm Working Range Multiple Data Processing
- 200KN Universal Material Compression Bending Tensile Testing Machine
Product Details
Product Type: | Other, Circulating air oven | Place of Origin: | Jiangsu, China | Brand Name: | Jiangsu |
Model Number: | CT,CT-C |
Product Description
Specifications
(1).Name:CT-C hot air circle Oven(2).Widely used
(3).Easy Flammable and Explosive Material is Forbidden.
(4).GMP

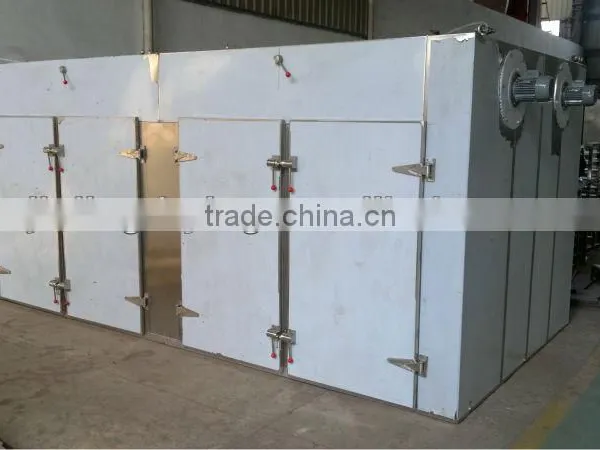

CT-C series hot air circulating oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH.
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 °C , Max.140 °C .
3.Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.
4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140 °C or less than 60 °C , please indicate when order.
Explanation:
1. There are four kinds of heating resource for choice: steam, electricity, heat conducting oil, both steam and electricity.
2. The temperature (steam heating): 50-140°C, Max 150 °C
3. The temperature (when using electricity and far-infrared): 50-300°C
4. The automatic control system or the computer control system is selectable.
5. Commonly used steam pressure 0.2-0.8 MPa (2-8kg/cm2).
6. Standard electric heating is 15kw for type CT-1,CT-C-1, easy flammable and explosive material is forbidden.
7. The special requirements should be indicated at the time of order.
8. The price for the non-standard oven should be consulted.
9. If the operation temperature is more than 140°C or less than 60°C, it should be indicated at the time of order.
10. The oven and baking tray made by our factory are uniform in the dimensions, and can be exchanged with each other.
11. Baking tray dimensions: 460*640*45mm
12. Explosive-proof motor and control cabinet as option.
Application
The drying oven is suitable for the material, product hot solidification and drying de-watering in the pharmaceutical, chemical, food, farming industries, side-product, aquatic product, light industry, heavy industry and so on. Such as raw material medicine, crude drug, prepared herbal traditional Chinese medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish etc.
Technical parameter
