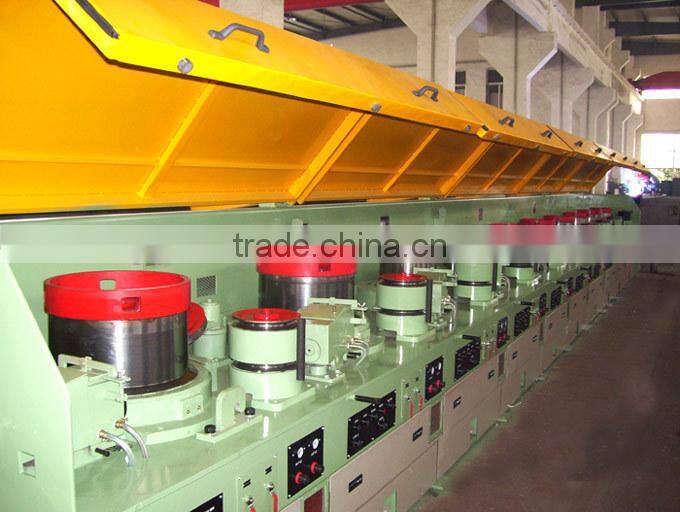

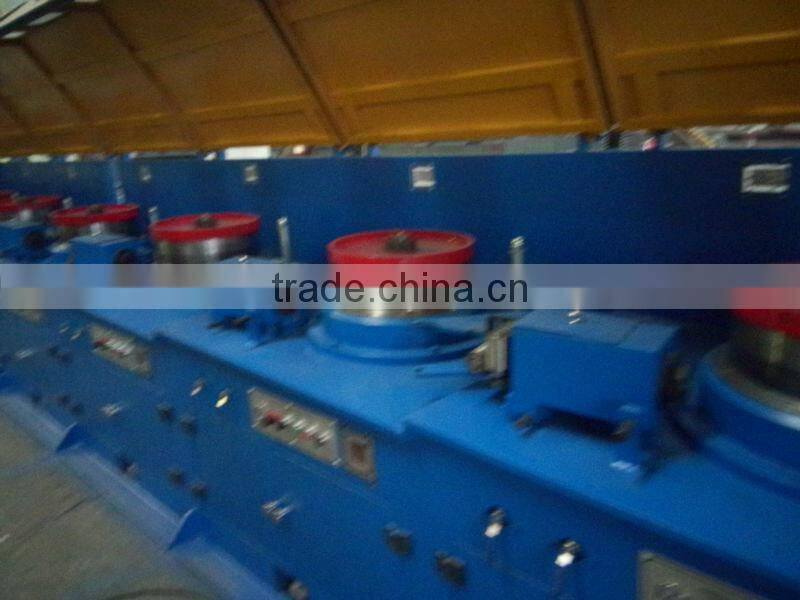

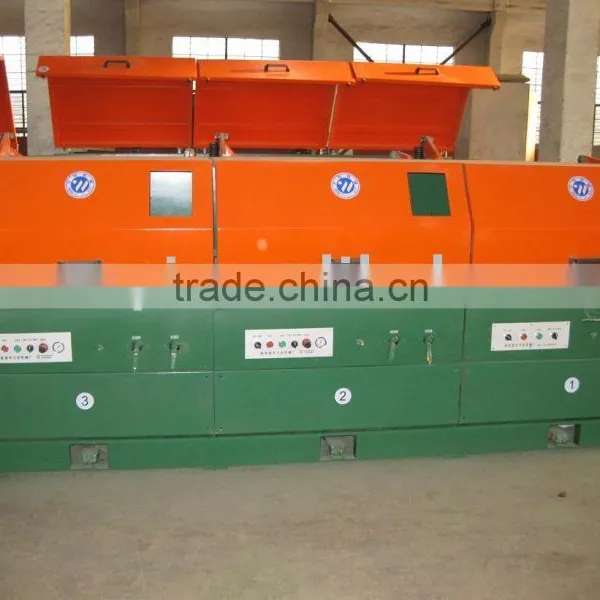

LZ200-1200 wire drawing machine serous:
High carbon steel wire, low carbon steel wire, stainless steel wire, steel core ,CO2 gas shielded welding wire,flux cored welding wire.
Model | LZ 200 | LZ 280 | LZ 350 | LZ 400 | LZ 450 | LZ 500 | LZ 560 | LZ 600 | LZ 700 | LZ 800 | LZ 900 | LZ 1200 |
Drawing Passes
| ~14 | ~12 | ~12 | ~12 | ~12 | ~12 | ~12 | ~10 | ~9 | ~9 | ~9 | ~9 |
Max.Inlet Dia.(mm) | 1.4 | 1.8 | 3.5 | 4.2 | 4.6 | 5.5 | 6.5 | 6.5 | 8 | 10 | 14 | 16 |
Min.Outlet Dia(mm) | 0.2 | 0.4 | 0.6 | 0.7 | 0.8 | 1 | 1.35 | 1.8 | 2.5 | 3 | 3 | 3 |
Drawing speed | Design and determine speed & power according to drawing material strength and customer’s requirements | |||||||||||
wire drawing machine
the main technical parameters and key points:
(1) into the line of maximum intensity: ≤ 450MPa
(2) Max diameter: diameter 6.5mm
(3) into the line of minimum diameter: 2mm
(4) The maximum compression ratio: 92.5%
(5) The maximum drawing speed: 16m / s
Normal drawing speed: 10m / s (used the word wheel close-ray machine can make the speed of 16 m / s)
(6) water and pressure: 8m3 / h Pressure ≥ 0.25MPa
(7) gas consumption and pressure: 2.0m3 / h Pressure ≥ 0.6MPa
