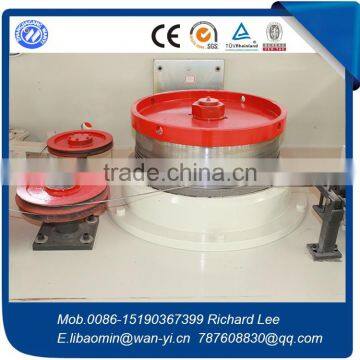

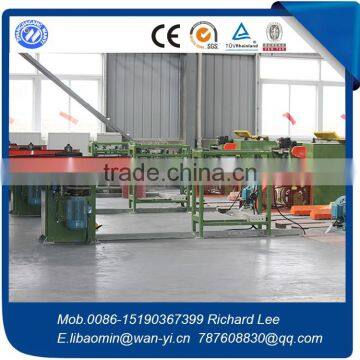

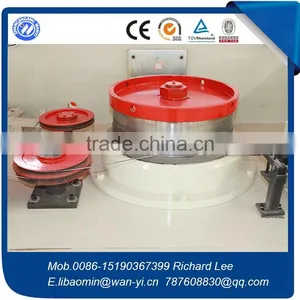

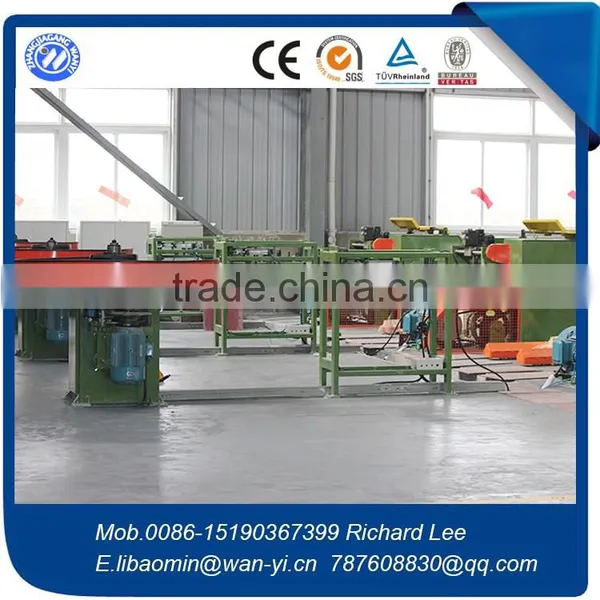

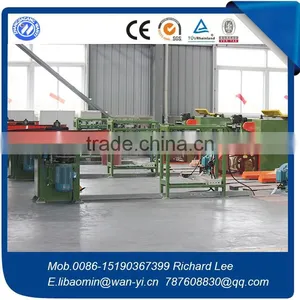

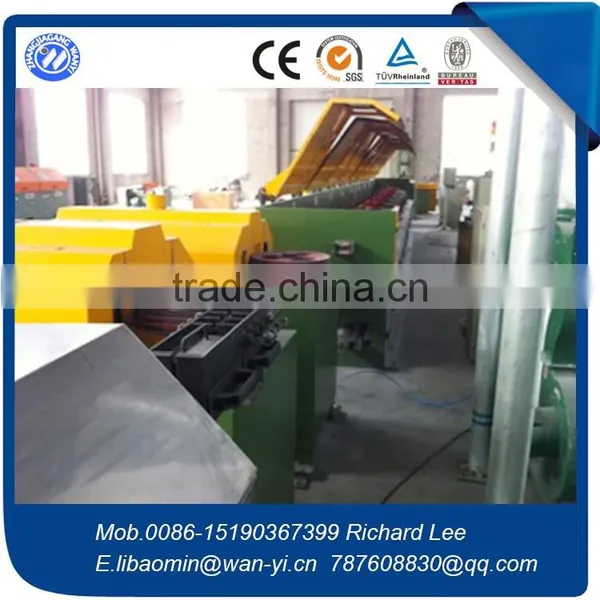

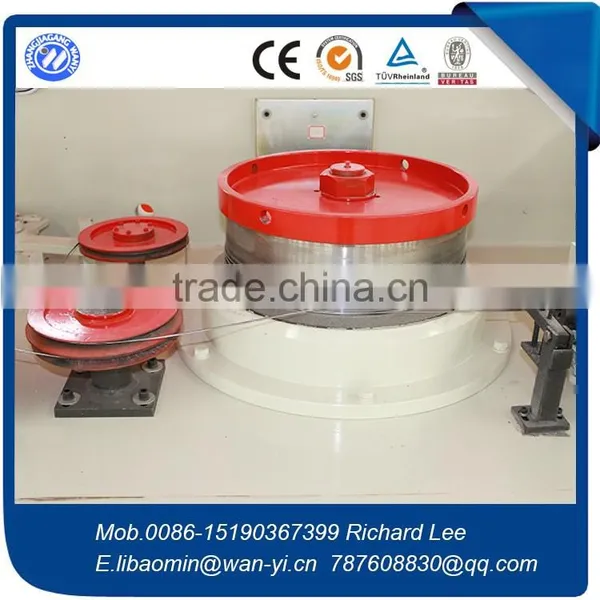

6-head wire drawing machine(XZ-YL-6/450) 1 set Main technical parameter 1. Machine composition (1)XZ-FX-800 Pay-off rack(mechanical part) (2)XZ-YL-6/450 straight line wire drawing machine(mechanical part) (3)XG800 bobbin coiling machine(mechanical part) 2. Parameter (1)Wire material: Flux –core wire (2)Diameter of inlet wire: Φ5.1mm~Φ4.1mm (3)Finished wire spec.: Φ2.25mm~Φ2.8mm (semi-finished flux core wire) (4)Max inlet wire strength: ≤700Mpa (5)Max. diameter of inlet wire: φ4.8mm (6)Min. diameter of outgoing wire: φ2.8mm (7)Max drawing speed: 9m/s (8) Water consumption and pressure: 3m3/h Water pressure ≥0.3Mpa (9)Air consumption and pressure: 0.6m3/h Air pressure ≥0.4Mpa (10)Motor 1. Host machine: 15kwAC variable frequency motor 2. Wire coiler: 15kwAC variable frequency motor Noisy of one machine: ≤81db
