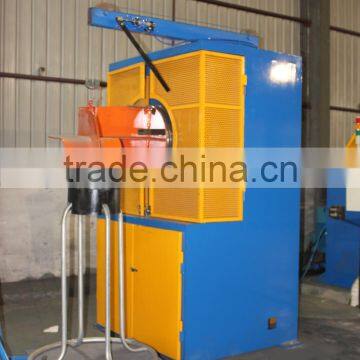

stand-on-head type wire rolling machine group
1. Specifications and state of steel wire: annealed wire,zinc coated wire,phosporic wire of φ1.0~φ6.5
2. Weight of each piece of steel wire:500KG~1000KG
3. Diameter of roll:600 or 400
4. No.of head of wire rolling machine:10-40 heads
5. Speed adjustment range:10~60m/min
6. Each head is provided with a frame ,carriage and rail.....
Specifications
1.ISO 9001:2008 standard certification
2.main foreign markets: mid-east,southeast Asia,south Asia,Africa,etc.
Detailed Sell Lead Description:

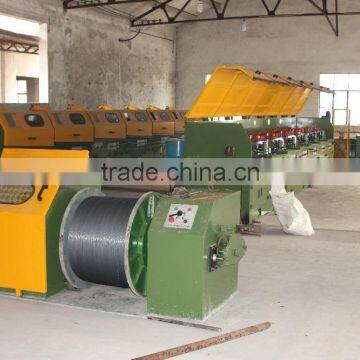

Description: LZ600 High speed straight wire drawing machine
Place Of Origin: Zhangjiagang City, Jiangsu, China
Company Published: 2009
Business type: Manufacturer
Number Of Employees: 50-100
Package: wooden case..
Feature: Applicable for drawing high, medium, low carbon steel wire/ alloy steel wire/ stainless steel wire,
with the feature of continuous pass drawing. The machine is controlled by PLC which is driven by frequency converter.
Specification:
Item | LZ200 | LZ300 | LZ400 | LZ500 | LZ560 | LZ600 | LZ700 | LZ750 | LZ900 | LZ1200 |
Dia. of Capstan | 200mm | 300mm | 400mm | 500mm | 560mm | 600mm | 700mm | 750mm | 900mm | 1200mm |
Capstan Nos. | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 | 2~9 |
Inlet wire size | 2.5mm | 2.8mm | 4.2mm | 5.5mm | 6.5mm | 8mm | 10mm | 10mm | 14mm | 16mm |
Finished wire | 0.3mm | 0.6mm | 0.7mm | 1.2mm | 1.3mm | 1.6mm | 2.2mm | 2.2mm | 3mm | 3mm |
Max. Speed | 20m/s | 20m/s | 20m/s | 18m/s | 15m/s | 12m/s | 10m/s | 10m/s | 8m/s | 6m/s |
Power (Kw) | 5.5~7 | 7.5~11 | 7.5~22 | 22~45 | 22~55 | 45~75 | 45~90 | 55~90 | 90~132 | 90~160 |
