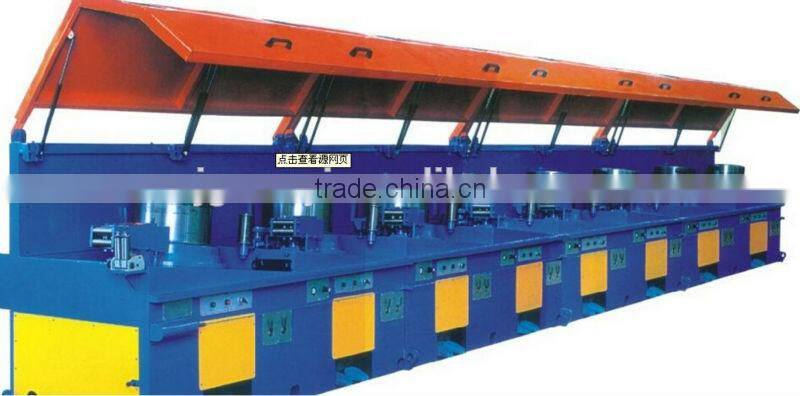

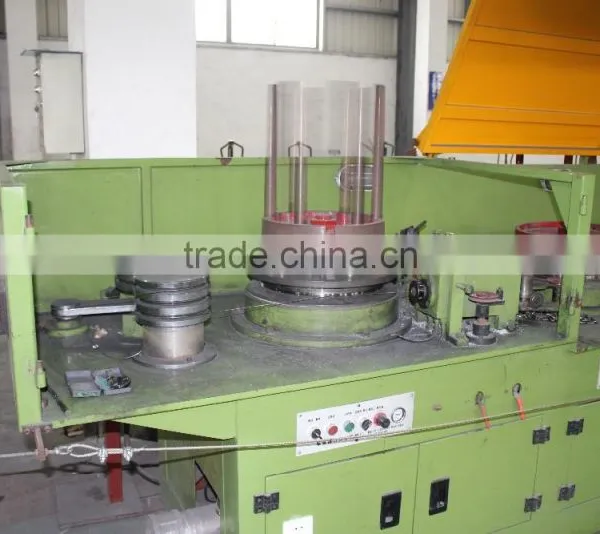

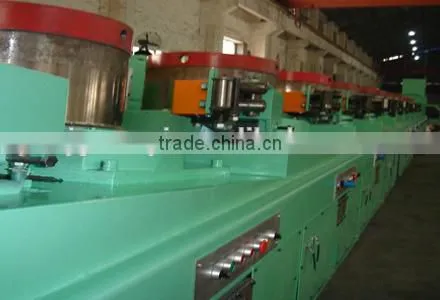

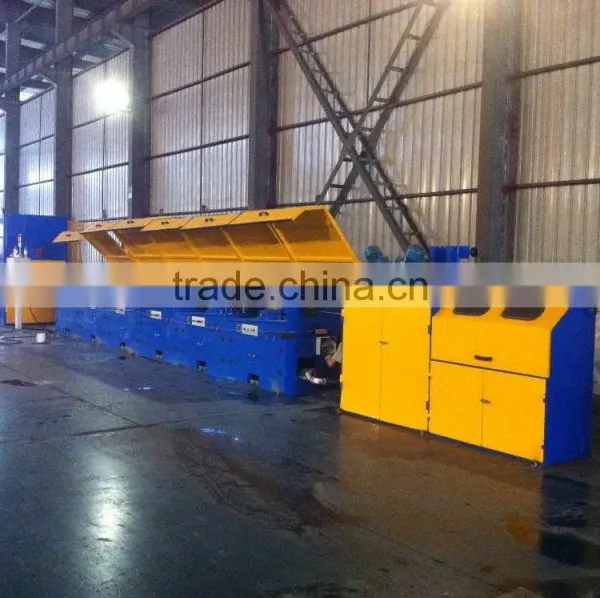

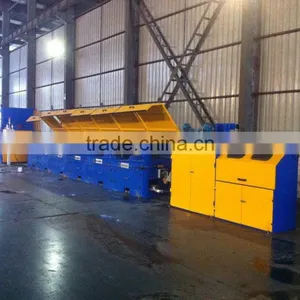

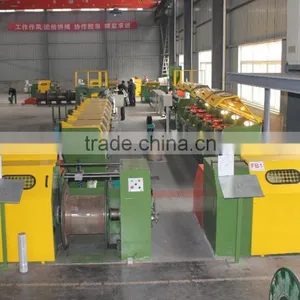

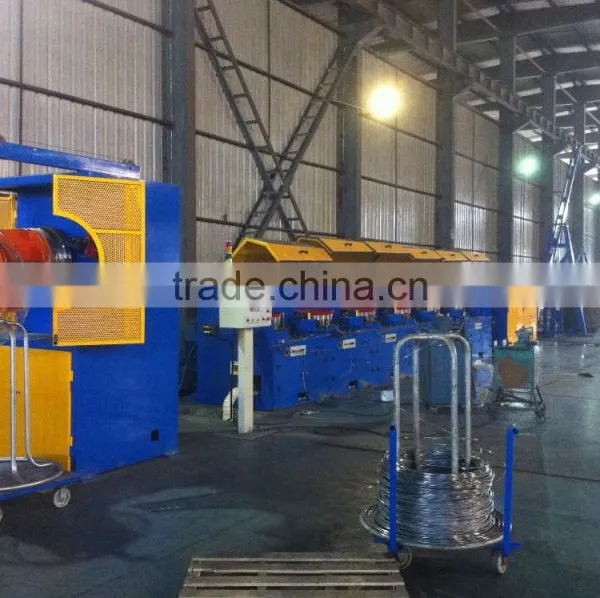

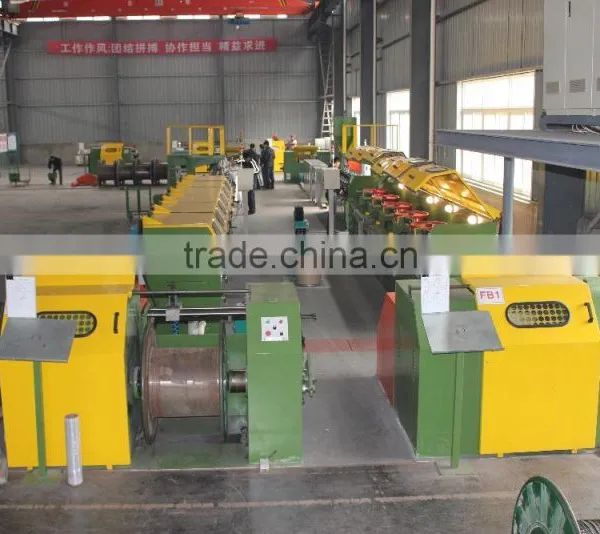

Carbon Wire Drawing Machine
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set -
Combined Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Stress Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Best Quality Wire Drawing MachineUS$ 20,000 - 20,000MOQ: 1 Set
-
Spring Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ10/400
Voltage
380v
Power(W)
80KW
Dimension(L*W*H)
8500X1560X1560MM
Weight
8500KG
Certification
CE or SGS or third parts
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specification
Items |
Unit |
LZ9-12/1200 |
LZ10/800 |
LZ9/700 |
LZ10/560 |
LZ10/400 |
Capstan diameter |
mm |
1200-900 |
800 |
700 |
560(600) |
400(450) |
Drawing dies |
time |
9-12 |
10 |
9 |
10 |
10 |
Max inlet diameter |
mm |
φ14-8 |
φ10-8 |
φ8-6.5 |
φ6.5-5.5 |
φ3.5-2.5 |
Min outlet diameter |
mm |
φ5-3 |
φ4-2.5 |
φ3-2.5 |
φ2-1.8 |
φ1.1-0.8 |
Drawing speed |
m/min |
300 |
360 |
480 |
720 |
840 |
Tensile strength |
Mpa(max) |
1300 |
1300 |
1300 |
1300 |
1300 |
Total compression rate |
% |
87.24-92.89 |
90.53-90.23 |
85.94-85.21 |
90.53-89.29 |
90.12 |
Average compression rate |
% |
20.45-19.58 |
21.00-20.75 |
19.58-19.13 |
21.00-20.02 |
20.50 |
Motor Power |
Kw |
110-90 |
90-55 |
75-55 |
37-22 |
15-7.5 |
