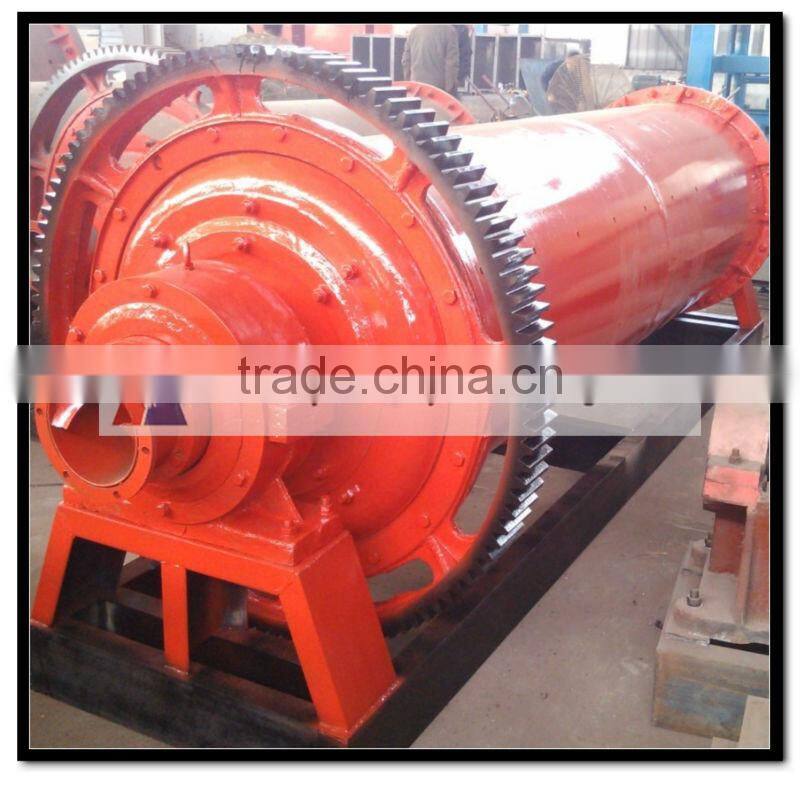

First Class Explosion-proof Ball Mill From China Manufacturer

First Class Explosion-proof Ball Mill From China Manufacturer thumbnail-1
First Class Explosion-proof Ball Mill From China Manufacturer photo-1
US$ 12,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
1-50 T/H
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 1-50 T/H
Place of Origin Henan, China
Brand Name Lanji
Model Number 2.2*7.0
Voltage 220/380 V
Power(W) 100-1600 KW
Dimension(L*W*H) 8.0*2.0*2.5 M
Weight 3-50 T
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

First class explosion-proof ball mill from China manufacturer



Product Description



Cement mill Application:



Cement mill is LanJi machinery company for grinding ball mill can break the characteristics of the new building materials production, is the key equipment for grinding after the crushing process. Mill widely used in cement, Portland products, new building materials, refractory material, chemical fertilizer, black and non-ferrous metal processing and glass ceramics production industry, of all kinds of ores and other materials may be grinding of dry or wet grinding. And the appearance of the cement mill, speeding up the building construction pace, promote the development of the construction industry.



Cement mill characteristics:

Cement mill is mainly formed by the feeding part, discharging part, Rotary Department, Transmission Division (reducer, small transmission gear, motors, electrical control) and other major components. Hollow axis adopts cast steel, lined with removable, rotary gear hobbing using castings, cylinder liner wear studded body, has good wear resistance. The machine running smooth, reliable work .



Cement mill Principle:

Cement mill for horizontal cylinder rotating device, the outer gear transmission, two storehouse, grate ball mill. The material is feeding device into the hollow shaft for the spiral evenly into the mill first storehouse, the warehouse liner or there were ladder corrugated linings, in a different specifications steel ball, cylinder rotation will produce centrifugal force steel ball to a certain height down after, to material produce slams and abrasive. The material in the first storehouse reach coarse grinding, through the single diaphragms in the second class, in the warehouse with flat liner, with steel ball that will further grinding materials. Powder which through the unloading Bi board eduction, finish grinding homework..

Note: according to material and row ore way, can choose dry type ball mill and wet grate ball mill.

Main Parameters





Technical data:

Item

Model(m)

Capacity
(T/H)

Milling

type

Transmission

type

Power
(KW)

              Reducer

Weight
(T)

Remarks

  model

   speed ratio

1

Φ2.2×7m

8-9

open flow

brim

380

ZD70

5

54



2

Φ2.2×7.5m

10-11

open flow

brim

380

ZD70

5

63



3

Φ2.2×8m

10-12

open flow

brim

380

ZD70

5

65



4

Φ2.2×9.5m

14-16

open flow

brim

475

ZD70

5

70



5

Φ2.4 ×10m

18-19

open flow

brim

630

JR75

5.64

94.5

without motor

6

Φ2.4×11m

19-21

open flow

brim

630

RZD80

6.3

99.2

without motor

7

Φ2.4×13m

21-23

open flow

brim

800

MBY710

7.1

115.2

without motor

8

Φ2.6×13m

28-32

open flow

brim

1000

MBY800

7.1

148



9

Φ2.6×13m

28-32

open flow

brim

1000

MFY100

19.5

101.73



10

Φ3×12m

32-35

open flow

brim

1250

MBY900

7.1

168.6



11

Φ3×13m

34-37

open flow

brim

1400

MBY900

7.1

172.26



12

Φ3.2×13m

45-50

open flow

brim

1600

MBY1000

7.1

196.26

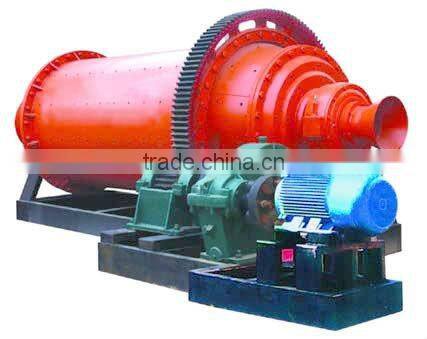

 First class explosion-proof ball mill from China manufacturerFirst class explosion-proof ball mill from China manufacturerFirst class explosion-proof ball mill from China manufacturer



Certifications

 First class explosion-proof ball mill from China manufacturer
