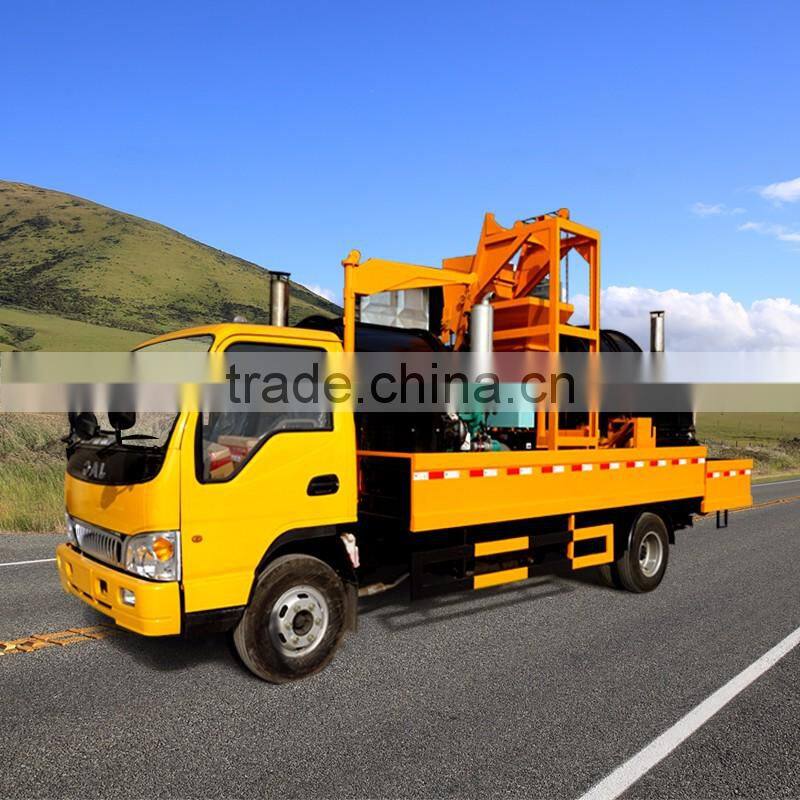

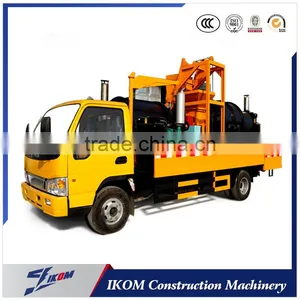

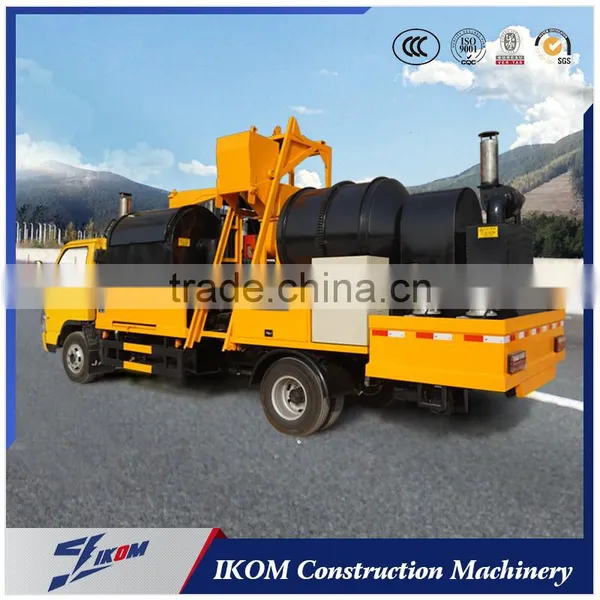

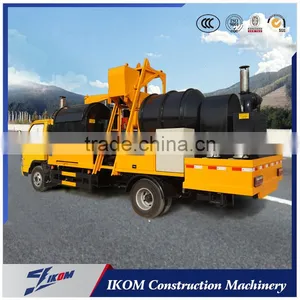

China Factory Mobile Truck Mounted Asphalt Patch Plant

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	IKOM
Model Number	ZQZ5080YH		After-sales Service Provided	Engineers available to service machinery overseas

Parameter

Specifications of Truck Mounted Asphalt Patch Plant

Item	Parameter
Name	Truck Mounted Asphalt Patch Plant
Dimension	7360X2200X3450mm
productivity	5T/h
Total power	35kw
Generator output power	20 kw
Hopper capacity	0.15m³
Maximum capacity of batch heater	0.3m³
Max lifting weight of hoist	0.3T
working voltage	Three-phase 380V,50hz
Max operating temperature of heat transfer oil	230℃

Product Description

Brief Introduction

A unique solution to small paving projects and patching jobs requiring 4 to 9 TPH and pat hole works.

l Dryer and mixer are separated to prevent asphalt from burning.

l The dust is removed by induced draft fan when drying, makes the mixture smooth appearance.

l All the systems are electric driven by Cummins generator Unit. It is easy for the repairing.

l Use automatic Italy Riello efficiency burner with heating transfer oi system.

l Batch heater with no wastage

Details information

Construction drawing
