Standard Asphalt Distributor
ZQZ5160GLQ standard asphalt distributor is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects.

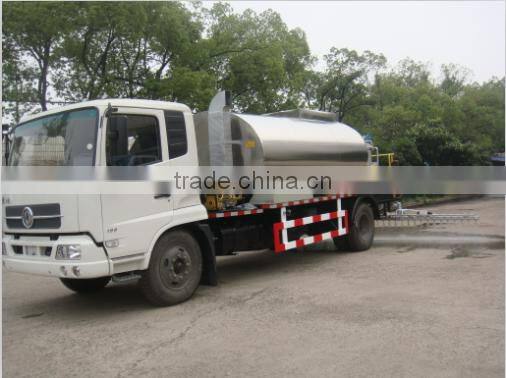

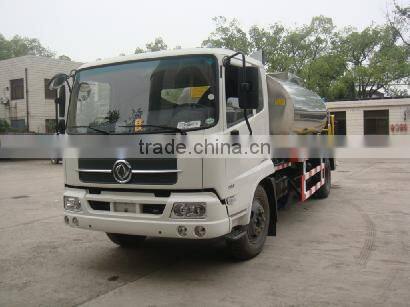

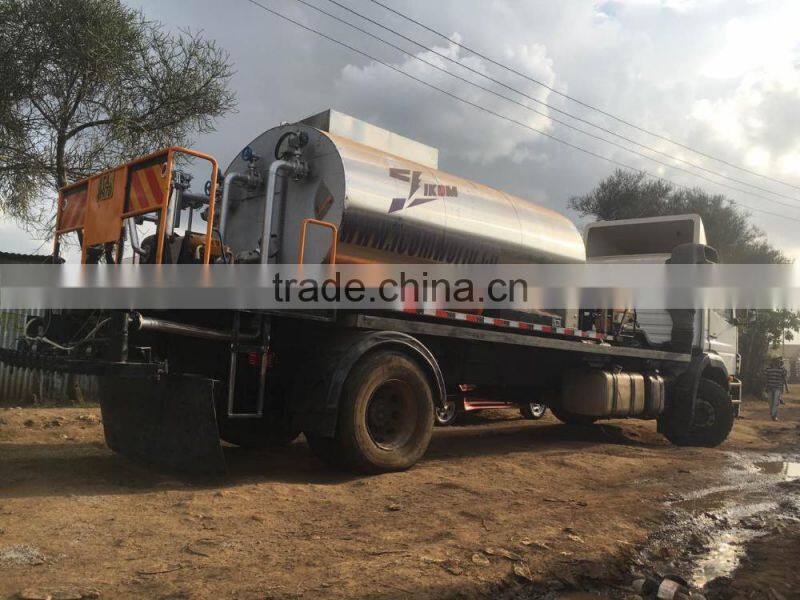

Pictures Of Standard Asphalt Distributor
Parameter Of Standard Asphalt Distributor
Mass parameter: | |||
Kerb Weight(kg) | 8900 | Total Weight(kg) | 16000 |
Rated loading Weight(kg) | 7100 | Dimension(mm) | 8995×2490 ×3160 |
Chassis Parameter: | |||
Chassis Model | DFL1160BX7A | Tyre model | 9.00-20 |
Wheelbase (mm) | 5000 | Tread mm | 2020/1860 |
Front Overhang(mm) | 1430 | Rear Overhang(mm) | 2565 |
Approach angle,Departure angle | 20°/11.3° | Minimum Ground Clearance (mm) | 250 |
Engine parameter: | |||
Engine model | EQH160-30 | Manufacturer | DongFeng Motor Co., LTD |
Max.Power(kw) | 118/2400 | Max. Torque(N.m) | 550/1300-1800 |
Fuel | Diesel | Displacement(ml) | 4752 |
Spray specification: | |||
Tank Capacity(L) | 8000 | Spray width | 6000mm |
Hydraulic pump model | CBQ-F550 | Spray Value | 0.5-3.0(Kg) |
Hydraulic motor | L2F63W2P2 (Liyuan) | Insulation Thickness | 50mm |
Controller | / | Nozzles | 39 |
Burner | G20(Riello) | Asphalt pump | CB450 |
Generator(Converter) | YGBT2500 |
|
|
Other parameter: | |||
Max. truck speed(km/h) | 95 | Max. Grade ability | >23% |
Spring films(Front/Rear) | 11/10+10 | Minimum turning diameter (m) | 18.4 |
Axis No. | 2(4*2) |
| |
Pictures Of Construction
Information Of Company
Hangzhou IKOM Construction Machinery Co., Ltd is a professional manufacture of road construction machinery in china. Management team with many years of experience in the design and manufacture of construction equipment and trained world renowned equipment manufacturing experts at home and abroad a number of important new technology road works promotion of new equipment , get a good project results. Especially developed to optimize applications with industry-leading levels of construction equipment and asphalt in the asphalt performance .My company has a system integration technology road construction equipment, to meet the equipment requirements of the whole process . Management team has a strict work style and good business philosophy of cooperation between the parties work together to provide integrated services industry demeanor , higher precision , specialized in the development of the road .
Best Services Just For You
The extremely considerate and sincerely service would be provided to our customers immediately in CNCAC once made the order. This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support
4. we can supply installation, commissioning, training etc
5. welcome to visit our factory at any time any where!
The Information You May Like To Know Before Order
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.MOQ:
No requirement for testing and trial order
3. Handling time for an order
Within 10 days supplied from stock
4. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea.
5. Quality Control
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded) b. Technical Support will be available in any time c. Free replacement will provide once the failure confirmed caused by our product quality.
