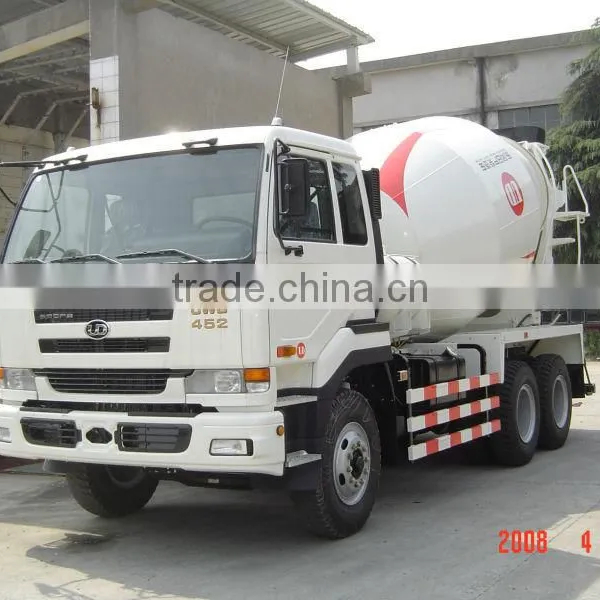

Used Concrete Pump Car

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

DND

Hangzhou IKOM Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name DND

Model Number DND5241GJBCW452H

Motor Power 235/2100

Mixing Power 12.2

Speed of Mixing Drum 8-12rpm

Water Supply Mode pump

Outline Dimension 8250X2490X3800

After-sales Service Provided Overseas third-party support available

Specifications

DND brand: Dongfeng Nissan Diesel
Concrete mixer
9000L
CBW452

CONCRETE MIXER

MIXER CAR
MODEL	DND5241GJBCW452H	DND5241GJBCWB452K
Dimension(mm)	8250X2490X3800	8660X2490X3800
Tread(front/rear)	3200+1300	3650+1300
Min. Turning Circle Dia.(m)	15.8	16.8
Min.Groud Clearance(mm)	240
Vehicle Kerb Mass(kg)	11805	11905
Total Mass(kg)	24000
Oil Consumption(L/100km)	35
Max.Gradeability(%)	24
Max.Speed	90
Truck Type:	6X4
Engine Type	four stroke, water-cooling,in-line six cylinder,charge-air intercooling,Electronic fuel injection.
Engine model	PF6
Displacement(L)	12503
Net.Power /rotate speed	235/2100
Max.Torque(N.m/r/min)	1323/1200
Min.Fuel consumption	195g/kw.h
Emission Standard	EII
Fuel Tank Capacity(L)	200L
Transmission	MTS60
Cluch	430mm Monolithic dry
Braking system	double-circuit air brake
Tyre Model	11.00-20-18PR
Mixer Capacity	12.2	14.8
Feed Speed (rpm)	1~16
Discharge Speed(rpm)	1~16
Reducer	VB99-11	VB99-17
Hydraulic pump	KYB PSVS-90A
Motor	KYB MSF-85
Water supply system	Electric water pump
Water Tank Capacity(L)	200L
