Home > Products > New Products > China large capacity good quality Circulating Agricultural Rice/grain Dryer

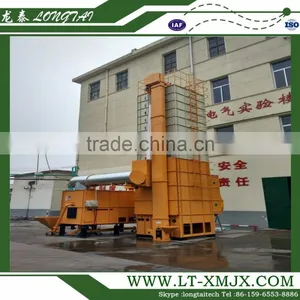

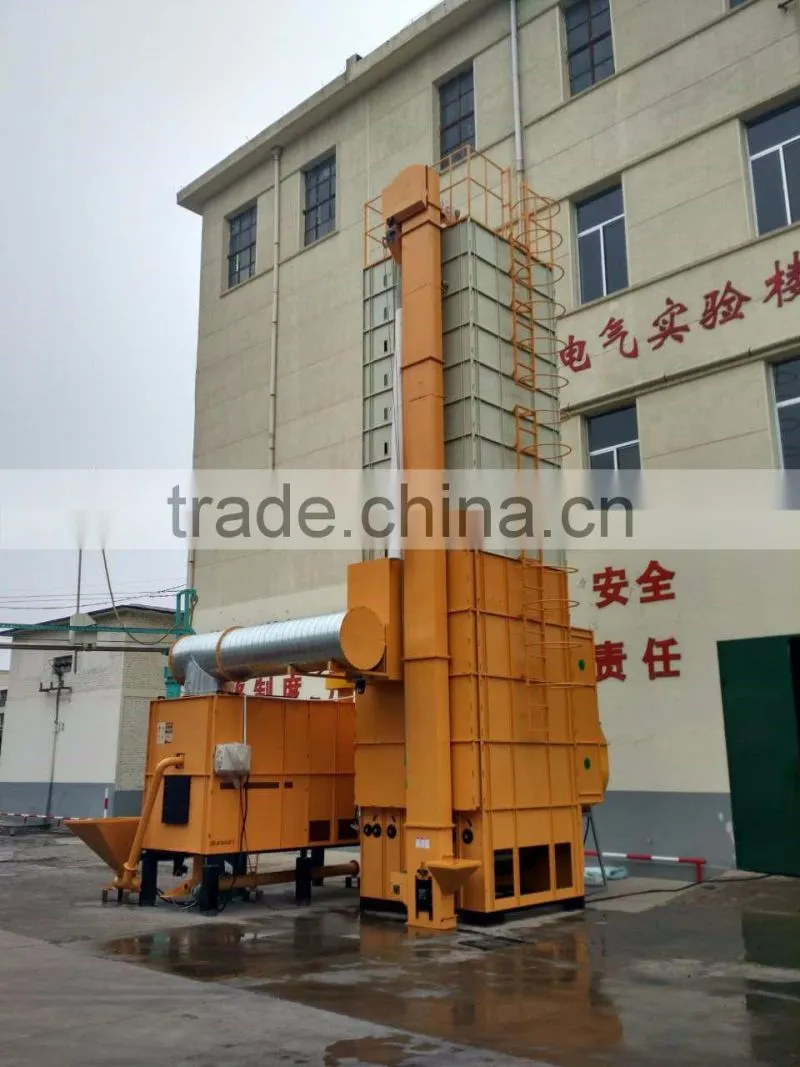

China large capacity good quality Circulating Agricultural Rice/grain Dryer
- 25 Set / Sets per Month
- Qingdao
- T/T
Product Details
Type: | Farm Equipment | Use: | Agriculture | Certification: | ISO9001 |
Place of Origin: | Shandong, China | Brand Name: | LONGTAI | Model Number: | Dryer |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China large capacity good quality Circulating Agricultural Rice/grain Dryer
Advantage ,
The 50T drying equipment developed by our company adopts two-way cross-drying, enlarges the area of dry layer, and adjusts the device by grain diversion. It evenly drys the grain and improves the drying efficiency, meanwhile, it saves the floor area.
1. Large dry area, good penetration of drying medium, Average drying , high efficiency
2. hot stove heating dry grain indirectly . During drying process, the grain cycle , grain friction between each other and remove the grain between the mans, velvet, etc. Then remove out of the machine by the dust collector to improve the grain cleanliness after drying .
3. low-temperature balanced drying in the drying process can effectively reduce the rate of grain bursting, and improve the grain finishing rice rate, thereby enhancing the quality of rice .
4. the control system uses man-machine interface display desiccant action state, simple operation, automatic and manual operation, automatic display failure at a glance which is good for find out quickly, safe and practical;
5. the drying cycle without residual dead angle, uniform, clean easily to prevent mixed species .
6, It uses Japan KETT resistive on-line moisture detector which is one of the world's three major brands . Automatic moisture control and control desiccant precipitation rate set the value of automatic shutdown after the high-precision sensing control equipment .
7. all designed for low-speed drive bearings and three dust protection device make the bearings can not enter the dust in the rotation to the internal .
8. the centrifugal fan and axial fan are improved to a mixed-flow fan . Hot air’s maximum air flow reaches17500m / h . The total pressure is 950pa which effectively improve the drying effect and low noise .
9. Auger blades with 40Mn steel and the surface is special treatment .
10. High degree of automation (hot air, valley temperature, moisture on-line automatic monitoring, automatic fault alarm, automatic grain circulation, discharge, the system automatically shut down).
Technical Parameters ,
Capacity(T) | Rice | 33.5 | Size(mm) | Length | 4570 |
| Wheat | 36 |
| Width | 4200 |
Power Supply | 380V/50HZ |
| Height | 12620 | |
Motive force | 23.37KW | Total weight kg (Except Radiator) | 7000 | ||
Properties | Infeed timing(min) | 45---55 |
|
| |
| Discharge time(min) | 50---60 |
|
| |
Safety Device | 1. automatic alarm (fault and over-temperature) 2. automatic shutdown 3. temperature control device 4. electrical overload protection device 5. leakage protection devices 6. fire extinguishers |
1. Our Expert give you professional pre-service for your consultation , and proving system evaluation to give you a best solution for your demand .
2. We have set up atechnology & installation & sale department to design , install and test run the production line you need .
3. We insist on " train before sale , service after sale " all the time , so we provide producing , management , maintenance training andytime if the customers needed .
4. We provide high-quality original accessories by sending the accessories to the service network to promise the high speed and efficient after sale service .
5. We guarantee that we'll visit out customers regularly to solve all the problems happened when producing .
LONGTAI is professional manufacturer and exporter that is concerned with the design development and production of livestock machinery . We boast state-of-the-art automatic production lines of wire industry, domestically advanced production technologies and complete testing equipment and quality systems. It gives us a broad development space. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. In addition, all our product are high quality and low overhead and have passed the certification of ISO9001 .
1. Are you Manufacturer or Trading Company ?
We are Manufacturer with 10 years experience .
2. What is the lead time ?
Normally it takes 10 to 30 days after your advanced payment .
3. How should I pay if I place an order from your company ?
We prefer 30% TT first , balance70% TT before shipment . 30% TT first , rest 70% LC is also acceptable and negotiable .
4. Do you have overseas service ?
Yes .
5. How about your quality ?
All our spare parts are from the original manufacturers , the quality is 100% guaranteed .
WELCOME TO OUR FACTORY - LONGTAI GUOXIANG AUTOMATIC MACHINERY CO.,LTD!
Contact Us
- Shandong Long Tai Guo Xiang Automatic Machinery Co., Ltd.
- Contact nameElsa Fong
- Phone86-533-15965538886
- AddressNo.148 zhenfu road huantai country Zibo,Shandong
