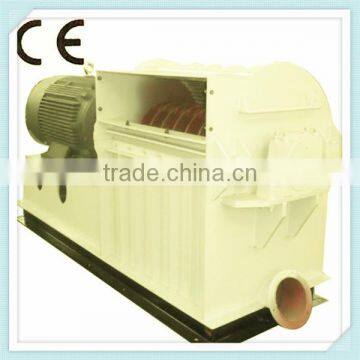

CSHM 2016 high quality wood chips hammer mill

wood chips hammer mill

below is the working video link for your info:

/v_show/id_XNzU0Njc5Mjg0.html?from=y1.7-2

1. wood chips hammer mill is mainly used to crush wood, wood waste, wood shaving, wood chips straw shell rice husk etc into powder. Fineness can be 1-20mm.

 2. wood chips hammer mill can crush fertilize waste such as animal manura,plant waste etc, also can crush animal feed materials such as soybean, maize, grain, etc. Tell us what kind of raw materials will crushe and the last dimension after crushed, then we will help you choose best models.

3. wood chips hammer mill is mainly used in wood factory, feed factory, cultivation factory, Fertilizer, chemical industry , power plant and so on.

4. wood chips hammer mill usually works with cyclone, air lock, fan blower, bag dust collector, air control pannel.

5. wood chips hammer mill can be used by two methods, positive presssure and negative pressure. The picture showed to you is negative press, which means fan blower is installed after cyclone. It is sure that we can make it into positive as per your request.

6. wood chips hammer mill Different sizes of sieves can be installed at the bottom of the hammer mill as per the particle size you need.

7. wood chips hammer mill key spare parts such as hammer blades are 65mn alloy steel, crushing system is setady, wear resistance, and function is good.

8. wood chips hammer mill raw material should be not too wet, if moisture kept between 15-20%, then will be the best. Low moisture, then per hour capacity is more higher, or will be lower.

 We are in the international bioenergy exhibiiton:

below is our machining workshop:

Below are packing and shipping of wood chips hammer mill

Technical parameters of wood chips hammer mill

Our CE certificates for our wood chips hammer mill

Below are our wood chips hammer mill on the international EXPO:

Notifications when using wood chips hammer mill

 1. wood chips hammer mill can be installed with different kinds of sieves, you can choose according to your actual need. If you want to process different size powder, then you need different size sieve,( sieve size:0.8cm, 1cm, 1.2cm. 1,5cm, 2.0cm)

2. wood chips hammer mill is high speed rotorying parts, hammer blades must be fixed firmly, avoid hard rawmterial entering into.

3. wood chips hammer mill blades are of wear parts, should be checked time to time, when having no edges and conners, reversible or swithcing to use. But the position of hammer blades cant be changed, or will effect balance.

4 If raw material is too big, then should be make into small one to feed in.

The year 2005 saw that Shandong Changsheng Machinery was born in the Zhangqiu Industrial Park with well-developed industrial foundation, Shandong Province; the first phase of the project covers an area of approx.100,000 square meters,with a total investment of nearly USD35 million and registered capital is USD12.5 million. Currently we have 900-plus staff. Having six departments-Administration, International Trade, Development, Finance, Production and Logistics, our company is a high-tech private enterprise, centering on production, R & D and sale of various large and medium pellet machines and complete pellet production lines. Our company has over 40 patents, 9 of them are invention patents. Over 15 years’ innovation, we are successively awarded numerous honors-Shandong Brand Product, Zhangqiu Top 10 Tax Payer Enterprise, Jinan Mayor Quality Prize, National High-tech Enterprise, Shandong Innovative Enterprise, Shandong Star Enterprise of China's patent, etc.

   Quality stems from innovation technology which originates from creative talents. Changsheng Machinery establishes a world-class environmental machinery technology research center, having a 40-plus-member research and management team, with their average age 32, and 12 of them have industrial senior titles. Led by returned elites with advanced R & D experience in pellet machines, we have launched the products fitting the clients most by combining foreign advanced manufacturing technology, our many more years’production and design basis with the clients’ practical needs. We successively carry our in-depth cooperation with Shandong University, SDUT and HIT, thus giving full play to powerful strength of enterprises-universities-researches Integration. Be of global top production level, we have bloomed into a pellet machine manufacturing and research enterprise equipped with global competitiveness, moreover, many more world-leading pellet production lines centering on GZLH480, GZLH560 and GZLH860 have been launched.

  Today, our products have been sold worldwide and our technology has reached the international advanced level, and a number of techniques have filled the domestic blank.

Changsheng Machinery spent heavily on building the world’s advanced pellet machine processing line and comprehensively achieved the synchronization with globally highest level of production. We are furnished with five professional shops for production, processing, assembly, paint and test running.

Hundreds of sophisticated precision machining equipments-CNC machining center, Longmen planer, horizontal boring and milling machine, large flat grinder, multifunctional CNC bending knee type milling machine, large radial drill, open-type inclinable press, NC cutting machine, NC lathe, etc.

Being field-experienced, 85% of staff carry out the scientific production process in the standardized factory and strive for excellence. There are rigorous standards on every link. All equipments must be tested severely before leaving the factory, and the passing rate is 100%.

We are committed to sharing quality products with the world. The first domestic Changsheng pellet machine was born in August, 2009; in 2011 our pellet machine was exported to Malaysia for the first time; and our international trade department was established in 2012. This way, Changsheng products are sold around the world. We are delivering unceasing surprises and achievements to our partners in China mainland, Taiwan, America, German, Korea, Brazil, Portugal, Russia, Australia, South Africa, Kenya, etc. Explore more financial sources and blaze a new way to the wealth.

We build our own 5S service project: special oil, special fitting, special services, specialist training and standardized management. We offer our clients such services as equipment installation and usage, etc. Our training content includes equipment maintenance, simple repair, electrical equipment operation, daily management, and so on.

We set up after-sale service offices in East China, North China and other districts. 24/7 telephone support services are available, and our engineers are able to solve all clients’ questions and problems anytime. Upon receiving domestic clients’ call, our after sales service personnel shall reach the client’s worksite within 24hours; for southeastern Asian clients, our related personnel shall reach the destination within 48hours, and it will be 72hours for European and American areas. Excellent after-sale services have earned widespread acclaim for our company.

The sky is the limit for the development of Changsheng Machinery. The grand prospect of Changsheng Machinery is unfolded. Nowadays, bearing new hope and taking advantage of new opportunities, Changsheng people are marching toward to new heights and brilliance.

Q:What parameters we should offer to get fittest pellet machine?

 A: Raw materials, moisture content in raw materials and capacity per hour.

Q: Can machine color be customized?

A: Yeah,no problem

Q: Are you a factory or trading house?

A: We are a factory of approx 100,000M2.

Q: Do you accept on-site inspection to check your pellet machine and your factory?

A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.

Q: What payment terms do you prefer?

A: T/T,L/C,West Union,Cash,and so on.

Q: What about your delivery period?

A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served."

Q: What about your warrranty for your machines?

A: Our machines are warranted for 12 months as of delivery,and we will offer you lifelong consultant services.If required,our engineers can go to your work site to help you solve you problems.

Q: How could we get working video of your machines?

A: We can trasnfer video online to you by Alibaba Trademanager or Skype or QQ,etc.

Q: How could you directly contact you:

A: You can contact us by Skype-oncle_hugo; email:info AT

Q: Do you need international commisison sale agent?

A: We hope to cooperate with world-wide agents for co-win benefits.

Q:Give us reasons to purchase your products:

A: First,our factory are top 3 all over China ; second,our services are humanizing,religious,hospitable and comprehensive; third, our products are CE approved,and warranted by our entity; fourth, we uphold the principle of Integrity and Morality; Last but not least,your personal visit to our factory will prove our words, believe it or not, as long as you visit our factory,you will definitely select us,We are expected your upcoming visit day and night!

Should you have any question,pls feel free to contact us asap.
