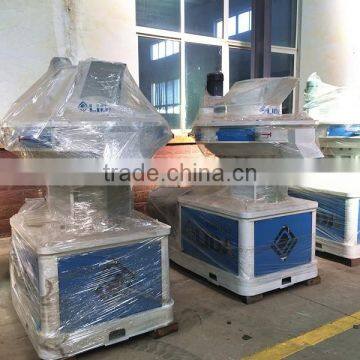

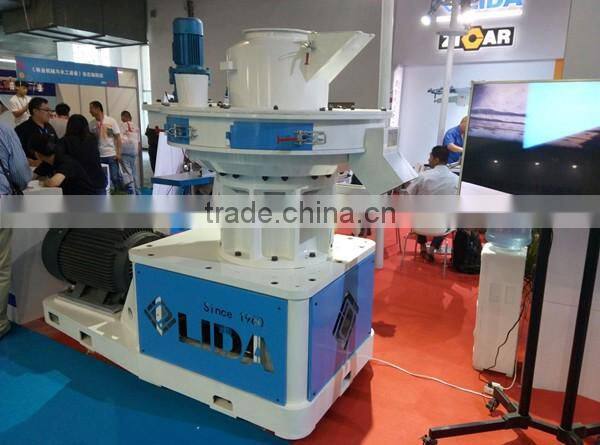

High efficiency wood pellet mill capacity 2-3ton/hour in China
With us ,anyone can set their own plan for pellets
Now ,enjoy the way to find your own solution with us ~~
Vertical Ring Die Pellet Mills”, have absorbed the quintessence of pellet mills in both domestic and international market, adopt ”double-layer die”as the unique structure;Rollers are made of abrasion-proof alloy steel,improving the using lifetime of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,durable use,supplying the blank of vertical feeding of ring-die pellet mill at home,reach the international advanced level.specialized for biomass pellets making with crushed powder of materiales like Wood Chips,Branches,Tree Trunk,Barks,Plant Waste, Crop Straw,Rice
husk,Peanut shells,Bamboo and Palm fiber, etc.
1. Feeding vertically, free of arch of the raw materials, easy for the heat emission in pelleting room. 2.Ring die with double layer, up and down dual use,reducing production cost.
3. Die fixed while rollers rotating, producing much higher presion, and materials are centrifugal,evenly distributed around, improving production capacity and also assuring pellets hardness and density.
4.With automatic lubrication system,easy maintenance,reducing cost, prolonging working life of the equipment.
5.24 hours continuous operation, saving labour .
| Model | Die Diameter(MM) | Pellets Diameter(MM) | Dimension (MM) | Weight (T) | Capacity(T/H) | Power(KW) |
| XGJ450 | 450 | Φ4-12 | 2400*1000*2100 | 4.5 | 0.8-1 | 75+1.5+0.55 |
| XGJ560 | 560 | Φ4-12 | 2600*1300*2300 | 6.1 | 1-1.5 | 90+1.5+0.55 |
| XGJ650 | 650 | Φ4-12 | 2950*1300*2450 | 9.5 | 1.5-2 | 160+1.5+0.55 |
| XGJ850 | 850 | Φ4-12 | 3350*1450*3180 | 14.5 | 2.5-3.5 | 220+3+0.55 |
| XGJ1050 | 1050 | Φ4-12 | 4200*1850*3700 | 22.5 | 4-6 | 315+5.5+3 |
