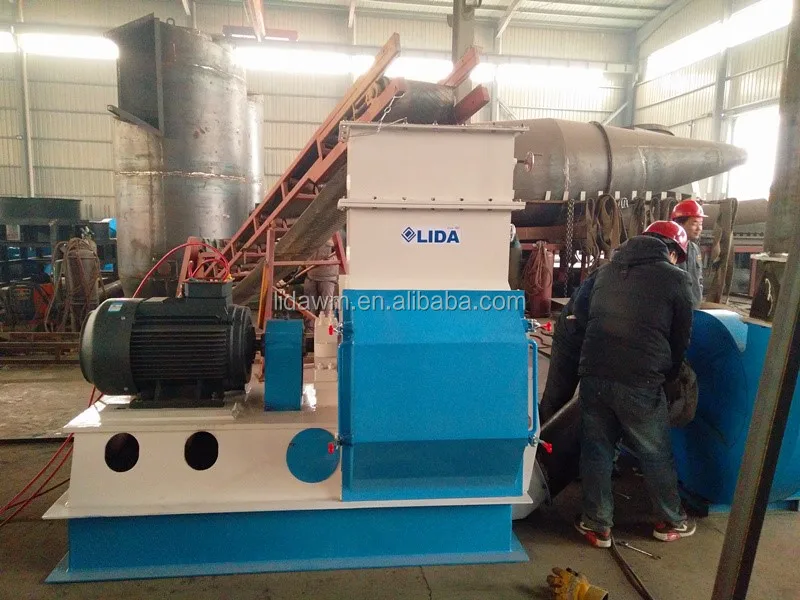

3.5 ton Hammer mill for fir wood make sawdust good price for sale

Name: 3.5 ton Hammer mill for fir wood make sawdust good price for sale
Brand: LIDA
Price: USD $15,000 - 16,500 / Set

FOB Price

USD $15,000 - $16,500 / Set

1 Set(Min.Order)

Supply Ability 25 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Mill Granularity:	Adjustable	Aperture Size:	Requried
Spindle Speed:	2200r/min	Number of Cutter:	30	Length of Cutter:	400-780mm
Cutter Diameter:	500mm	Inlet Diameter:	230*500mm	Brand Name:	LIDA
Model Number:	GXP65x100	Dimension(LWH):	154012401020mm	Weight:	2500kg
Certification:	ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Introduction:

Efficient hammer mill is a specialized crusher for biomass fule,there are two models,one is single shaft model the other is double shaft model.

Advantage:

1.Motor and rotor are directly connected by coupling.

2.Rotor passes dynamic balance test,which can rotate in forward and backward direction.

3.Crush wood chips,wood shaving,grass,straw,stalk,rubber etc into powder,which can directly press pellets.

3.5 ton Hammer mill for fir wood make sawdust good price for sale
Model	Power (kw)	Capacity (t/h)
GXP65x55	37-55	1-2
GXP65x75	55-75	1.5-2.5
GXP65x100	90-110	2.5-3.5
GXP130x55	160	3-4
GXP130x100	220	3.5-5

Detailed Images

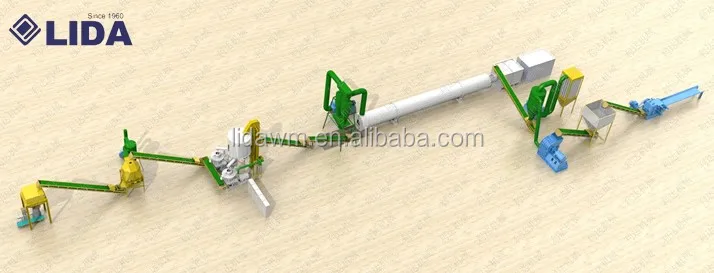

Production Line

LIDA wood chipper is primarily used to crush felled tree logs, bamboo stalks, or furniture wastes into small chips.It is commonly used in stock preparation of

particleboards, paper and pulp, and wood chips for

biomass pellets.

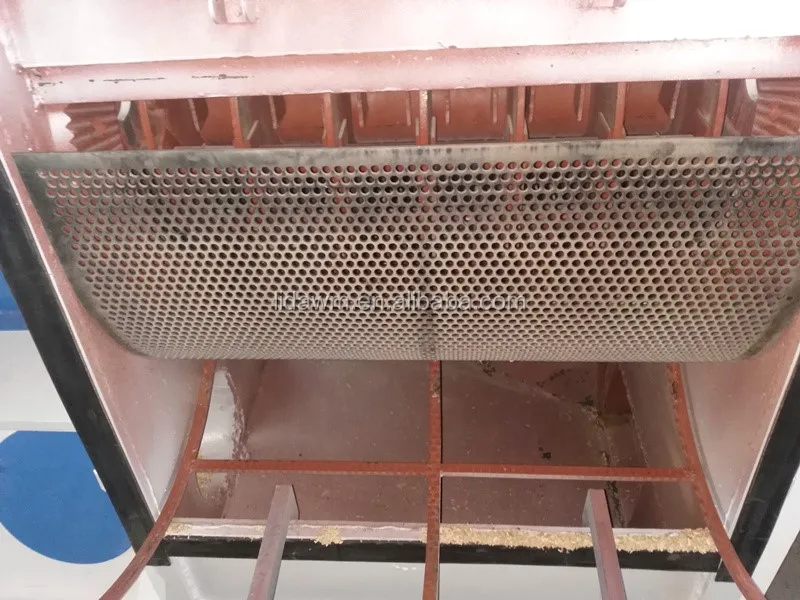

LIDA hammer mill reduces particle size by the beating of the hammer rotating at high speed resulting in the
particles being grinded and expelled through screens of a selected size. The gap between the hammer and the
screen is adjustable between 2 options, through
changing the position of the hammer, to produce coarser or finer particles as intended. .

LIDA dust rotary dryer is built with robust and high
temperature resistance material. We customized flight
designs lift the product and cascade it through the heated gas stream. Our internal designs provide maximum
production and assured moisture control.

LIDA pellet mill adopts double-layer die as the unique

structure. Rollers are made of abrasion-proof alloy steel, improving the using lifetime of spare parts greatly. For the drive parts, the grease is filtrated automatically

lubricated properly. Special design,rational structure, low power consumption, high efficiency, durable use,

supplying the blank of vertical feeding of ring-die pellet mill at home, reach the international advanced level.

FAQ

FAQ:

1.Will you send engineers to install the plant?
Our machines are well designed and easy installation. Engineers will be send when clients meet problems they can’t solve by themselves.

2.How about the quality of your products?
The materials we used purchase from stable supplier and our quality controller guarantee each process no-mistake. Most of our clients’ feedback said that LIDA has good quality control and the machine have good performance.

3.Do you provide after-sale service?
We believe that after-sale service is one of the most important section in whole sales process. So, our team will treat every client by a high standard.What's the lifetime of the wearing parts?. If you have any question after purchase, we will solve them.

4.What about the size of the final wood pellet product?
The pellets diameter between 4 to 12mm.Our standard ring die diameter are 6,8,10mm. We can also offer customization for each client.

5.What's the lifetime of the wearing parts?
It depends on the materials you use. The fewer impurities, the longer wearing parts will use. If you pay more attention to maintenance, it will make lifetime longer.

Our Company

Yantai Lida woodworking machinery Co.,ltd, which has over 50 years' history of manufacturing all kinds of China-made woodworking machinery since 1960, especially for the MQ ML series combined woodworking machine, it has the extremely important guiding function in the circle.

During the past few years, with the development of the company and the staffs, we also expanded our production to energy equipment industry .Now our main products cover biomass energy equipment ,feed processing equipment ,organic ferlizer production equipment three major series .With CE certificate and ISO9001 quality guaranteed and our consistant efforts ,our products have been exported to more than 30 countries in the world and enjoy fairly good reputation especially in Malaysia ,Vietnam ,Thailand ,Indonesia and other countries .

Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, we achieved advantages below :

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents.
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Inquiries are typically answered within 24 hours.
* After sale Service: experienced and knowledgeable team of technical support.
* Annual turnover: USD 10 million.

We trust that our experience and intimate knowledge of this line will entitle us to your confidence.
The more you know us, the more you trust us!
