CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-1

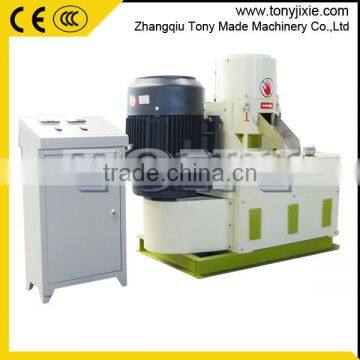

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-2

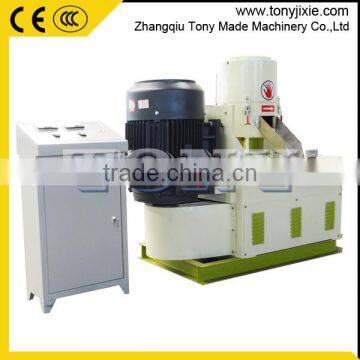

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-3
CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-4

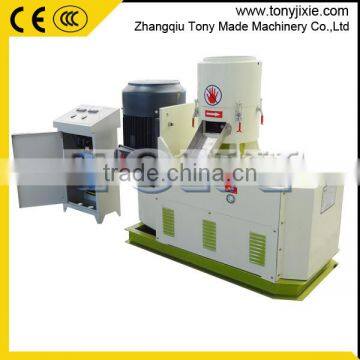

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-5

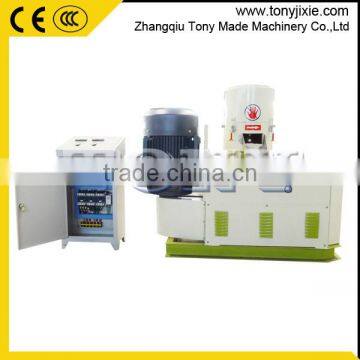

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale photo-6
US$ 800 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TONY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name TONY
Model Number SKJ350
Voltage Customized
Power(W) 30kw
Dimension(L*W*H) 1650*800*1350mm
Weight 800kg
Certification CE ISO SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Flat Die Biomass Wood Pellet Mill Machine

Professional Manufacturer



Product Description

Brief Introduction about biomass flat die pellet machine



Applied Field: used in the biomass-energy fuels plant,power plant,wood processing plant,fertilizer plant,chemical plant etc.Flat die pellet machine is the ideal pressing shaping equipments with low investment and high profit.



CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale

Features of flat die pellet mill machine

1. The flat die pellet mills are easier to clean than the ring die pellet mill.

2. Able to change die and roller faster and easier.

3. Small and light weight, relatively with small capacity.

4. Visibility. It is possible to view into the chamber when pelletizing,so you can solve any problem in time.

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale

Advantages of flat die pellet mill machine

1. Driven by electric motor, diesel engine or tractor engine, more convenient and environment friendly.

2. Flexible and movable pellet machine design; widely used in small wood pellet plant or home fuel pellets making.

3. Capacity ranges from 100KG/H to 2000KG/H, various models for choice

4. Equipped with gearbox which can control the material feeding speed and ensure wood pellet quality, at the same time prolonging pellet machine life.

5. All our pellet machines meet European standard -CE certified; the small wood pellet machine design is of closed house to cover motor.

6. Suitable for all kinds of biomass materials to make pellets.

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale



Technology

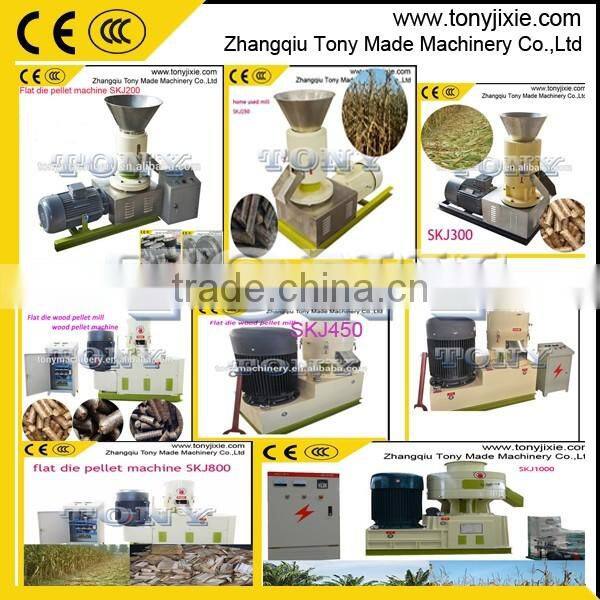

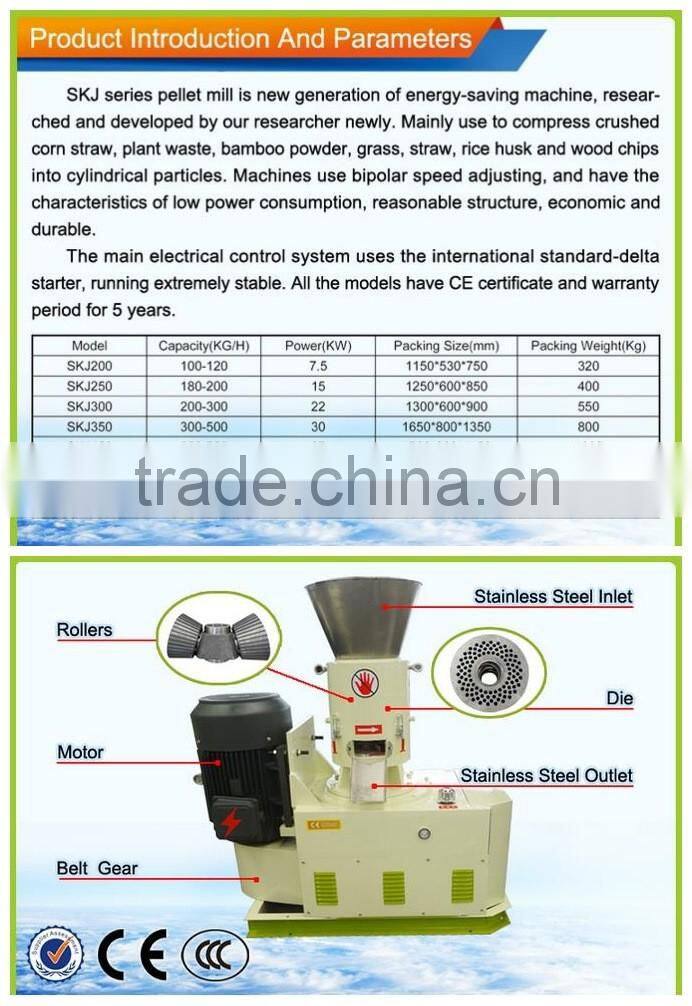

Technical Datas Of flat die pellet mill machine

1. Flat Die wood pellet mill machine with electric drive













Model

Capacity(kg/h)

Power(KW)

Packing Size(mm)

 Weight(Kg)

Remarks

SKJ200

100-120

7.5

1150*530*750

320

Reduction gear transmission

SKJ250

180-200

15

1250*600*850

400

SKJ300

200-300

22

1300*600*900

550

SKJ350

400-500

30

1650*800*1350

800

gear transmission with belt

SKJ450

650-750

37

1700*800*1450

1300

SKJ550

850-1000

45

1400*750*1650

2200

Big gear transmission

SKJ800

1500-2000

90

2250*1250*2200

3800

SKJ1000

2000-2500

110

2350*1150*2200

5000













2. Flat Die wood pellet mill machine with Diesel drive















Model

Capacity(kg/h)

Power(KW)

Packing Size(mm)

 Weight(Kg)



SKJ-200D

100-120

15HP

1200*850*900

450



SKJ-250D

180-200

22HP

1350*850*900

630



SKJ-300D

200-350

32HP

1500*850*1000

680















3. Flat Die wood pellet mill machine with Tractor drive















Model

Capacity(kg/h)

Power(KW)

Packing Size(mm)

 Weight(Kg)



SKJ-200T

80-100

15HP

450*400*1100

250



SKJ-250T

150-200

22HP

550*450*1100

300



SKJ-300T

200-300

32HP

600*550*1250

350



SKJ-350T

350-400

32HP

650*600*1300

400



 CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale

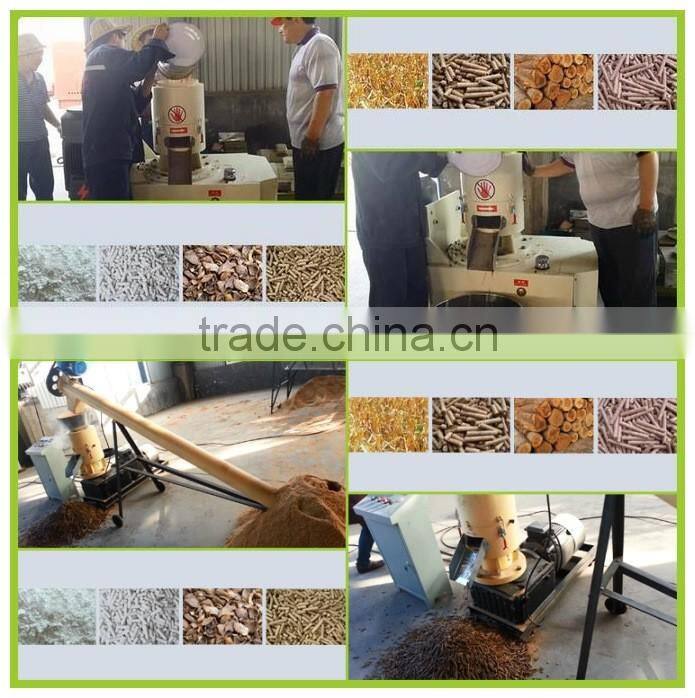

Flat die pellet machine testing

CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale



 More Details About Vertical Biomass Flat Die Pellet Mill Machine:










Item

CE ISO Vertical Flat Die Pellet Machine(SKJ Series)

Pellet Mill Style

-With Standard or anti-arching Feeder
-With or without conditioner

Optional Extras

-Screw feeder with anti-arching machanism
-Conditioner:To adjust the moisture and evenness of raw material.

Features

-CE&ISO&SGS
-electric motor or customized,NSK/SKF bearing
-Cutting mechanism

MOQ

1 set

Packing Details

wood case or wood pellet etc.

Warranty

1 year

Payment

L/C.T/T.Western Union

Successful Experiences Oversea

Our products have been exported to lots of Europe,South America,Southeast Asia
countries,and set agents in France,Gemany,Serbia,Bulgaria.

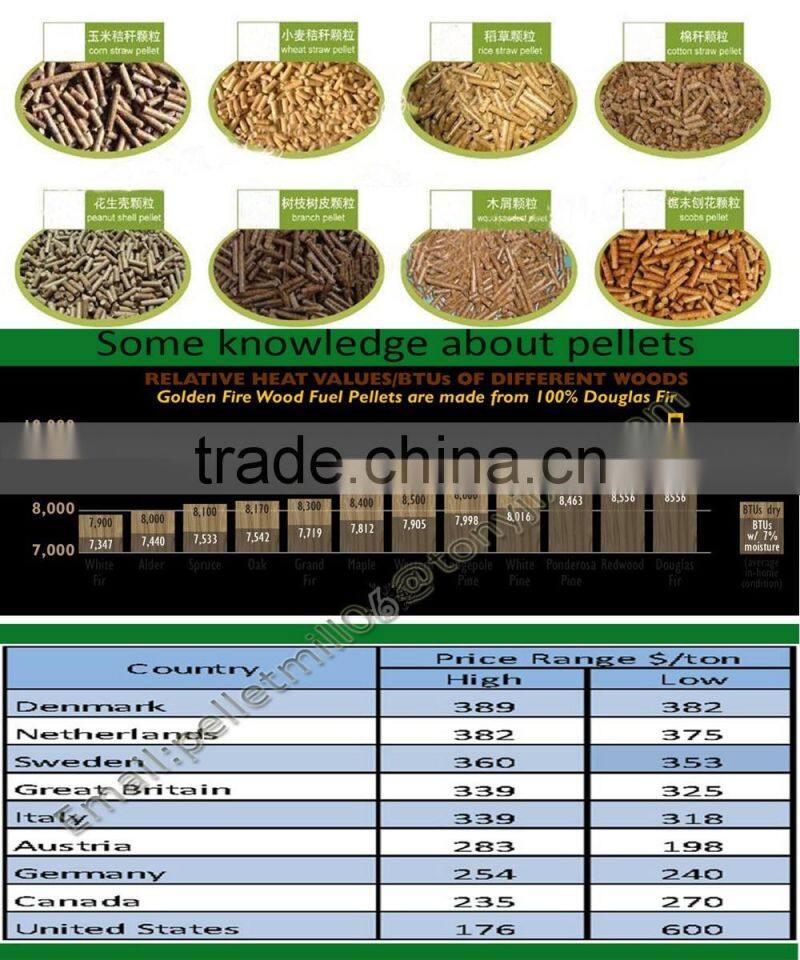

Pellet Show

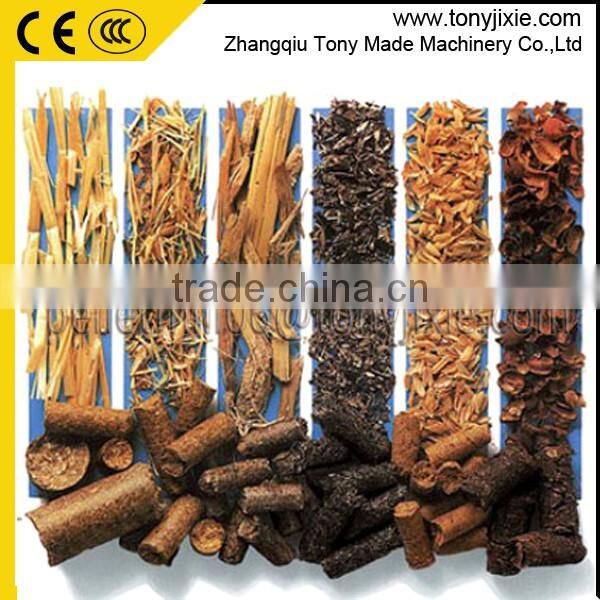

Raw Materials For Biomass Pellet Mill Machine



Pellet mill machine used to produce biomass pellets from the materials.such as wood,wood chips,pine,mahogany,rubber tree,rice husk,pennisetum,rn straw,cotton stalks,alfalfa grass,bagasse,palm fiber,non-phusical materials,etc.

Size:Less than 5mm(All the raw materials must be crushed into sawdust before going to wood pellet
        press machine,If not,you may need a wood chipper,wood crusher)
Moisture:Generally,10-15% is best for producing good quality pellet.

 CE Standard Biomass Flat Die Sawdust Pellet Mill Machine For Sale
