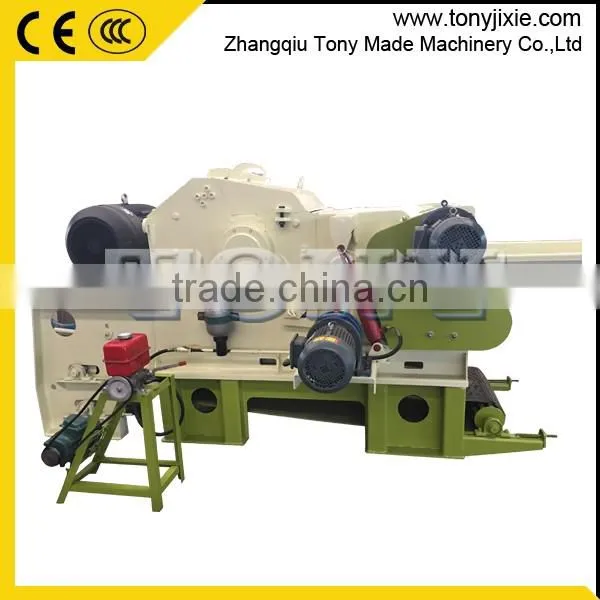

CE approved electric or diesel wood chipper
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details

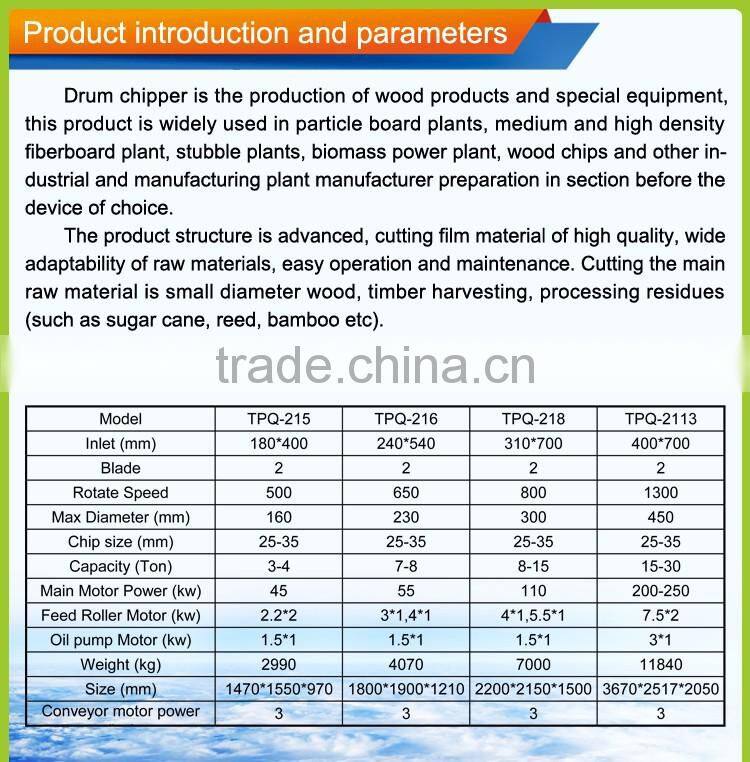

Condition: | New | Place of Origin: | Shandong, China | Brand Name: | TONY |
Model Number: | TPQ215 | Voltage: | 380V/50HZ | Power(W): | 45+0.5+3kw |
Dimension(L*W*H): | 1.8*1.55*1m | Weight: | 2990kg | Certification: | CE ISO SGS |
Warranty: | 13 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of the wood chipper
TPQ series wood chipper is a special equipment for producing wood chips. Tony wood chipper is widely used in particleboard plant, medium and high density fiberboard factory, stubble plants, biomass power plant, wood chip plants and other industrial and production factories in the preparation section before the device of choice.
The wood chipper structure is advanced , cutting sheet material of high quality raw materials adaptable light , easy operation and maintenance . The main raw material is cutting small trees , timber harvesting, processing residues ( such as branches, twigs ,skins, planks, logs core , waste veneer , etc. ) , can also be used to cut non-wood raw materials ( such as sugar cane , reeds, bamboo etc. ) .

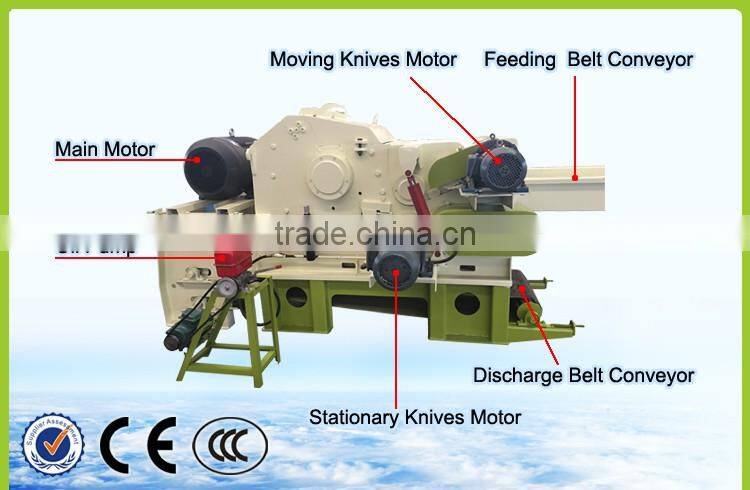

The wood chipper consists of the body, knife roller, upper and lower feed rollers , conveyor belts, hydraulic systems and other components. Body is made of high strength steel welded together, the whole machine is supporting foundation. Knife roller is installed on two or three , four throwing knives, knife with a specially manufactured bolts through the pressure block , knife and fixed knife roll. According to different thicknesses of cutting raw material , the feed roller assembly can make use of the hydraulic system to fluctuate within a certain range. Cutting down passing through the sieve holes flakes falling from the bottom of the discharge , the large flakes in the machine for cutting.
The wood chipper hydraulic system: the pump is supplied to the fuel tank , you can start cover for easy blade replacement ; maintenance can be looked at on a feed rollerassembly , easy to adjust the cutter, knife at the end of the gap and the comb plate disassembly.

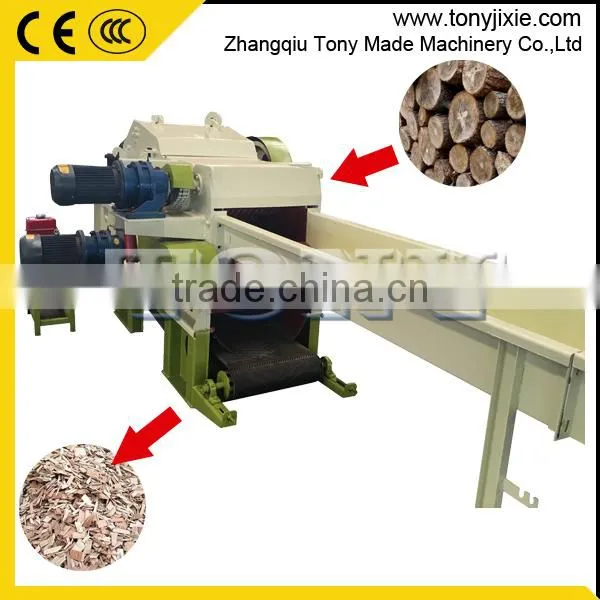

From raw materials to finished products

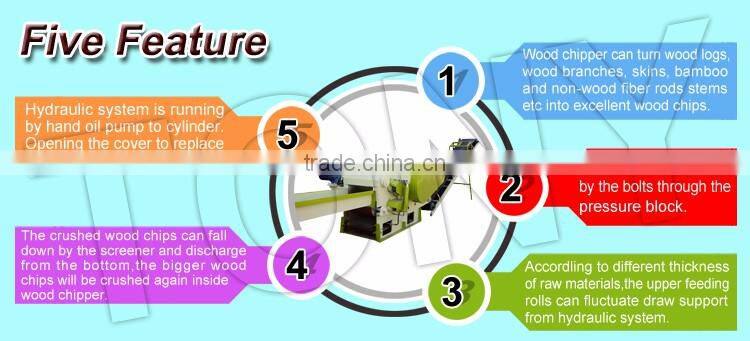

Advantages of the wood chipper
CE of the wood chipper

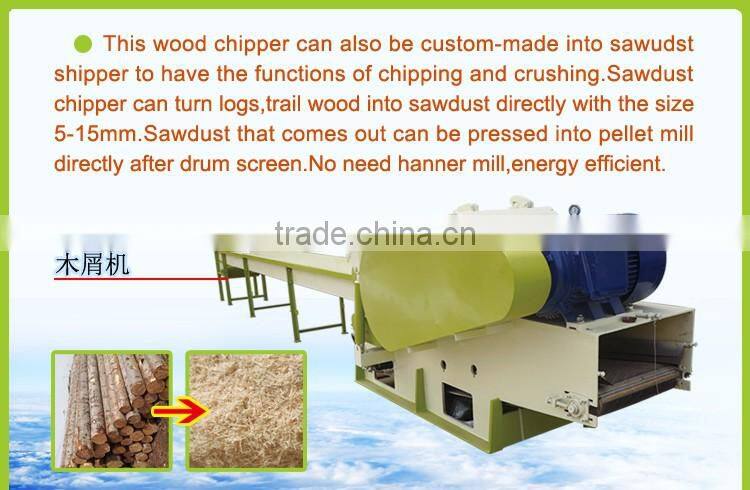

Wood chipper——> sawdust chipper
When you send inquiry to us, please kindly tell us:
ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.
We can supply the machines as following:
1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg per hour to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.Straw Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from capacity 0.5 ton per hour to 20 ton per hour.
