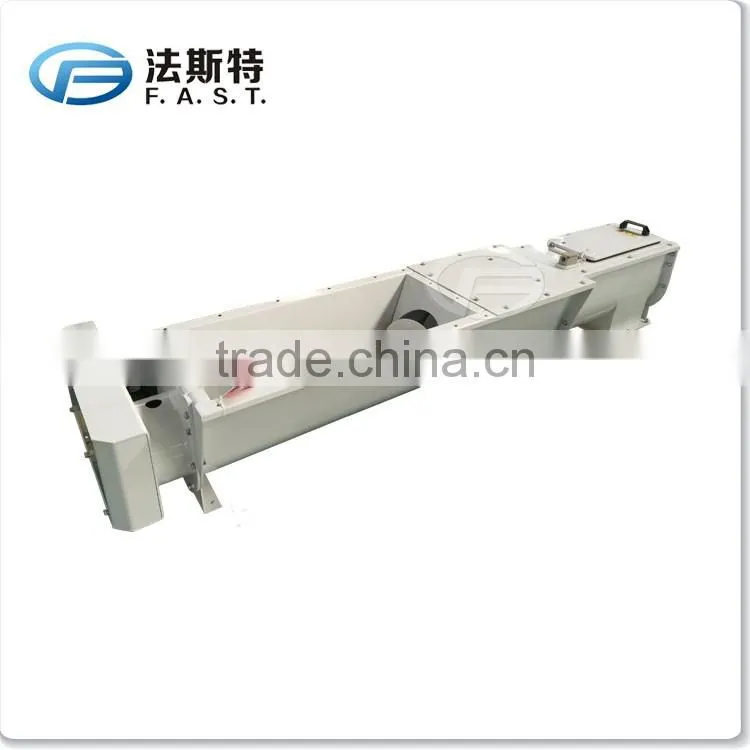

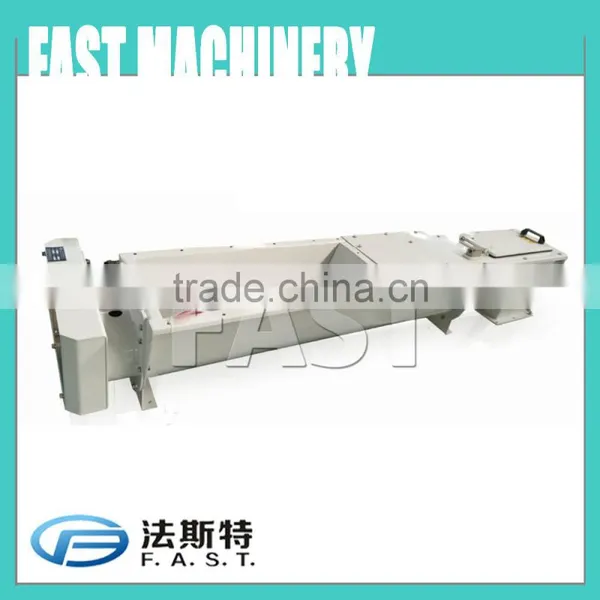

Trough Screw Conveyor
Application:

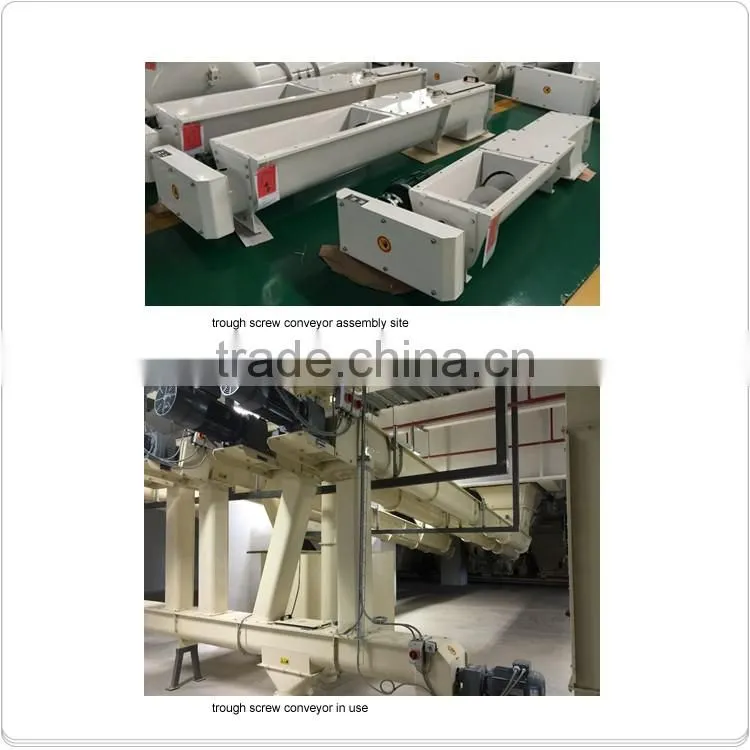

TLSU Trough Screw Conveyor is of high reliability and can achieve the best conveying, collecting and distributing of materials. It is suitable for the operation of animal feed, grain flour milling and malt processing. It can be arranged in level or incline type to convey grain, coarse powder, fine powder, animal feed and oilseed and so on. The capacity can reach 75t/h, which is very high.
Performance:
solid design, reliable operation
→ The design of collecting, distributing and mixing is solid, easy to maintain;
→ Stable sliding bearing, as intermediate bearing, ensures that the stable conveying distance up to 21m.
optimized design, highly sanitary
→ The head cover of TLSU trough screw conveyor can be removed, optional bottom gate. Both two components can ensure that trough body and screw can be reached easily.
→ Corners and slots are reduced to the minimum, exquisite design, low residual.
optimized design with high flexibility
→ The position of inlet and outlet can be configured according to your demand to make the collecting and distributing of products easy.
→ In addition to the carbon steel standard version coated with powder, we also offer stainless steel and galvanized version: according to the material and the application, TLSU screw conveyor can offer the most suitable material and surface finish.
→ Two types of screws to meet the specific requirements: solid helical blade is suitable for conveying, paddle blade is suitable for mixing.
Technical parameter:
MODEL |
POWER (kw) |
CAPACITY(t/h) CORN |
TLSU 200 |
1.1-5.5 |
5-10 |
TLSU 250 |
1.5-7.5 |
10-12 |
TLSU 315 |
2.2-11 |
18-32 |
TLSU 400 |
3-15 |
29-70 |
Jiangsu Fasite Machinery Co., Ltd.is a high-tech enterprise professional integrated providing solution for feed, agricultural machinery and turn-key projects. It covers an area of 33000m2, among which of factory building is 20000m2 . Its registered capital is 10 million RMB and has invested 30 million during the first stage. There are various advanced processing equipments such as large imported laser cutting, machinery, bending machinery, conveying equipment, surface treatment and the electrostatic powder coating production line etc., which makes it manufacture quality a leading level in China.
è Standardized engineering installation
We have trained a professional installation team to avoid some malpractice due to outsourcing, so that the installation demands from customers can be met more quickly.
è Mechanized technology reform
We have a high-efficient mechanization technical team, which can meet the technical renovation and temporary rush-repair task at any time.
è Professional after-service
We are adhering to the idea "the management is law, the service is the morality" and makes a rapid response service system, so that our after-service and spare parts could be supplied to customers within 24 hours.
