Home > Products > Feed Machinery > China Best Pellet Feed Machine to Make Animal Food
China Best Pellet Feed Machine to Make Animal Food
- SHANGHAI
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | F.A.S.T. | Model Number | SZLH | |
| Type | Feed Pellet Machine | Voltage | 380-420v | |
| Power(W) | 110-250kw | Dimension(L*W*H) | 3000*1260*1860mm | |
| Weight | 3270 kg | Certification | ISO9001, CE & ISO9001 | |
| Warranty | One Year, 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China best pellet feed machine to make animal food
1.1 Features of the pellet mill:
1.Employs classical gear drive with high transmission efficiency and high throughput. The bearings and oil seal are imported.
2.Ring mould with cone installation makes it more convenient and easier to change the ring die.
3.Quick change of die device to enhance productivity.
4.Automatic lubrication and adjustment device: the automatic lubrication of main shaft and roller bearing, the automatic adjustment of the gap between mould and roller.
5.Different conditioners can be selected to suit for the best effect of condition of poultry &livestock feed and normal aqua feed.
1.2 Parts of the pellet mill:
The parts of F.A.S.T. pellet mill are from world-famous brands which can ensure smooth operation.
Different sizes of ring dies to make different kinds of animal feeds.
1.3 Technical Parameters of the pellet mill:
We provide the following models for you. You can choose the right machine according to your own demands.
Model | Main power(kw) | Capacity(t/h) |
SZLH420 | 110 | 3-12 |
SZLH520 | 132/160 | 4-18 |
SZLH558 | 160/200 | 5-22 |
SZLH680 | 220 | 10-25 |
SZLH760 | 250 | 10-30 |
In addition, we can customize all kinds of pellet machines based on your request.
1.4 The complete production line
A complete production line consists of the following 7 processes:
Hammer Process→Mixing Process→Pelletizing Process→ Cooling Process→Crumbling Process→Sieving Process →Packaging Process.
Packaging: According to your requirements.
Shipping: on-time shipping of high efficiency
è Standardized engineering installation
F.A.S.T. has trained a professional installation team to avoid some malpractice due to outsoucing, so that the installation demands from customers can be met more quickly.
è Mechanized technology reform
F.A.S.T. has a high-efficient mechanization technical team, which can meet the technical renovation and temporary rush-repair task at any time.
è Professional after-service
F.A.S.T. is adhering to the idea "the management is law, the service is the morality" and makes a rapid response service system, so that our after-service and spare parts could be supplied to customers within 24 hours.
Jiangsu F.A.S.T Machinery Co., Ltd.
Jiangsu F.A.S.T Machinery Co., Ltd.is a high-tech enterprise professional integrated providing solution for feed, agricultural machinery and turn-key projects. It covers an area of 33000m2, among which of factory building is 20000m2 . Its registered capital is 10 million RMB and has invested 30 million during the first stage. There are various advanced processing equipments such as large imported laser cutting, machinery, bending machinery, conveying equipment, surface treatment and the electrostatic powder coating production line etc., which makes it manufacture quality a leading level in China.

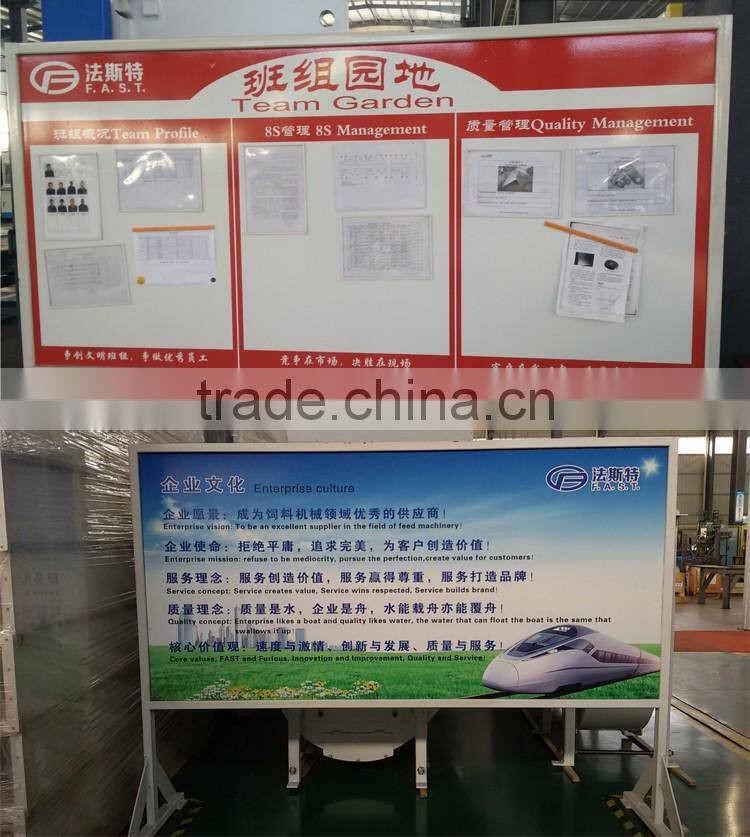

company culture
