Home > Products > mixing machine > automatic paint and coatings mixer for chemical
automatic paint and coatings mixer for chemical
- 20 Set / Sets per Month
- Qingdao
- Credit Card
Product Details
| Condition: | New | Mixer Type: | Screw | Product Type: | Paint |
| Application: | Viscous Fluid | Additional Capabilities: | Drying | Place of Origin: | Henan, China |
| Brand Name: | XINYU | Model Number: | TH-SMJ-1000 | Max. Loading Capacity: | 1000L |
| Voltage: | 380V | Power(W): | 5.5 kw | Dimension(L*W*H): | 2.5*0.8*1.7 m |
| Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

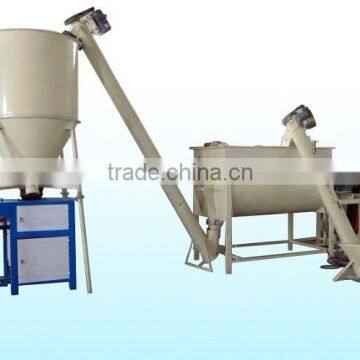

automatic paint and coatings mixer for chemical
Machine video link in Youtube:
machine application:
1.The machine is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2.The machine is a new type of mixing equipment with high efficiency, high
uniformity, high load factor,low energy consumption, low pollution and little
destruction to frangible material.
3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging
port and driven unit.
4.Double ribbon mixer drive the material from two ends to center through the help of
the outer ribbon, while the inner ribbon push the material from center to two ends,
thus, material achieve a high mixing effect at short time.
5.The machine adopts horizontal body, covers small area, automatic charging, easy
operate, double helix structure, simple maintenance, high efficiency, save both time
and labour. Complete shut--up, no vibration, no noise and dust. It is very popular in
domestic and foreign.
machine parameter:
Model | THSMJ1000 |
Capacity | 1000Kg |
Thickness of screw | 8mm |
Diameter of screw shaft | 90mm |
Mixing motor power | 7.5Kw |
Electric heating power | 24Kw |
Reduction gear model | 350 type |
Mixing time | 8-10 minute |
Mixing vessel dimension | 1800*900*1050mm |
Whole machine dimension | 3100*980*1900mm |
Machine material | Carbon steel/stainless steel |
The following are related mixing machine series, click the picture and have a view of it!
Package for product:
Shipping for product:
Business type: manufacturer, trading company
Location: Henan, China(Mainland)
Year established:2014
Registration No.:41110300001503
Our philosophy is to provide our customers with a wide choice of quality
products and satisfactory services. We assure our customers of a mutually
beneficial relationship as we look forward to building business cooperation
in the future.
1.How do you guarantee I can receive the goods that ordered after make the
payment?
We are the golden member of Alibaba and has been checked by the third party as the
real and legal company, what is more important, honest and trustworthiness is our
basic principle and our company's life,our factory was built nearly 10years.
2.How to make the payment?
Generally, for different country different payment is available.
Normally, when the order value is below USD10,000, we accept the payment by T/T
or Western Union or Cash, L/C will be accepted when the order value is over USD10,000.
For T/T, the customer can choose 100% in advance or 30% in advance, and pay
the 70% balance within 3-5 days before shipment.
3.Date of delivery?
We will arrange the production and shipment as soon as possible when we received the
deposit, and update the information with the customer on line.
4.After sale service?
Quality guarantee term: one year warranty, but not including manmade and operation
mistake. If any problem during one year, we will provide spare parts for free, but buyer
should pay the freight for some complicated machine or plant, we can send our
engineer overseas too.
Why Choose Us
1.Alibaba golden supplier
2.Professional design team and sales department
3.All the questions will be dealt within 24 hours
4.Professional, reliable, honest, manufacturer.
5.Gain a good reputation from long-term partner, agency, and client.
6.Offer most suitable and efficient packaging solution according to your specific require.
7.Good after sale service.Good after sale service. According the actual situation
offer 24 hours on-line service or send working videos.
Our Service
1.Professional Salesmen provide you guidance to realise our products and company
2.Experienced engineer and workers complete your orders
3.Professional inspector check production quality before delivery
4.Excellent technician guide assemble at your place
5.Creative Designers Programme your indoor or outdoor site, and design Customized according to your demand.
Kind Remind:
If you are interested in this machine, please detail your requirements and click the "Send"
below, I will reply you very soon and supply more information!
And: Don't forget to choose the "I agree to share my Business Card to the supplier", for I can contact you via Email/phone as soon as possible.
Contact Us
- Luohe Tianheng Machinery Co., Ltd.
- Contact nameseaya Zhang
- Phone86-0395-6936688
- AddressMiddle Sec. Of Wenming Rd., Mengmiao Town, Yancheng District
