small ribbon blender 304 stainless
- 200 Set / Sets per Month
- Qingdao /Tianjin
- T/T Credit Card
Product Details
Condition: | New | Mixer Type: | Screw | Product Type: | Paint |
Application: | Powder | Additional Capabilities: | Drying | Place of Origin: | Henan, China |
Brand Name: | xinyu | Model Number: | smj1000 | Max. Loading Capacity: | 1000l |
Voltage: | 220V/380V | Power(W): | 7.5KW | Dimension(L*W*H): | 3.1*0.98*1.9m |
Certification: | ISO | Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description

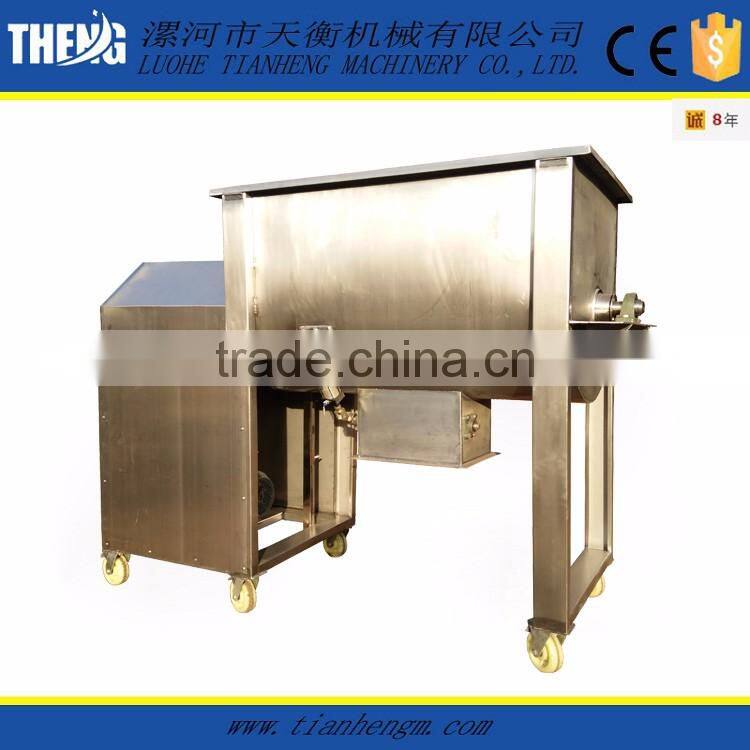

small ribbon blender 304 stainless
It is widely used in food processing, chemical industry. It can mix many kinds of material especially for the powder and granule which is with stick or cohesion character, or add a little liquid and paste material into powder and granule material.
This machine consists of two parts,feeding and stirring mixer.
1.The feeding part: the material feed in from the feed hopper, through the screw blade, to upgrade the material to the mixer to the mixer tank for mixing.
2. Mixing part: when the material feeds into the mixing tank, the outer ribbon make the material move from the sides to the center, and the inner ribbon moves the material from the center to the sides. So the material in the U-tank will get the complete mixing .
Features of mixing machine
1. Horizontal tank body, covers small area
2. Bearing is on both ends of the mixer, the material is not easy to enter, repair rate is low.
3. Gear box drive the auger shaft, simple maintenance ,high efficiency,save both time and labour.
4. U- Shape tank bottom, easy operate, stir uniformly, no dead angle, better for material discharge and cleaning.
5. Screw conveyor feeds conveniently, inlet flushes with the ground, feeding saves energy and convenient.
6. The machine can be designed to cool or heat the powder inside .
7. Under the bottom or the sides of the tank , there is a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design to make sure no material deposit and no dead angle when mixing .There is a lid and fence on the top of the tank, it seals the tank well, so that no powder will come out during mixing
The technicial parameter of powder mixing machine
Model | SMJ100 | SMJ200 | SMJ300 | SMJ500 | SMJ1000 | SMJ1500 | SMJ2000 |
engine power(KW) | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 11 |
total capacity(kg) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 |
outlet dimension(m) | 1.5*0.8*1.1 | 2*0.8*1.2 | 2*0.8*1.2 | 2.5*0.8*1.7 | 3.1*0.98*1.9 | 3.3*1.0*1.9 | 3.5*1.25*2.15 |
mixing tim(min) | 4-8 | 4-8 | 4-8 | 5-8 | 5-8 | 5-8 | 5-8 |
screw shaft(mm) | 65 | 65 | 65 | 65 | 90 | 90 | 90 |
ankle strap(mm) | 4 | 4 | 4 | 6 | 8 | 8 | 8 |
the dimension of the mixing tank | 1.05*0.5*0.6 | 1.15*0.55*0.65 | 1.2*0.65*0.7 | 1.26*0.73*0.85 | 1.8*0.9*1.05 | 2.0*1.0*1.15 | 2.2*1.2*1.35 |
The focus u care
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so o
2. Bearings: NSK/TNT and so on
3. Heating
4 Heavy duty type ( loading your material into the mixer first and then start the mixer)
5 Platform: we build the platform for you or we design it and you build it locally
6. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
Customizing according to client’s specific requirement.

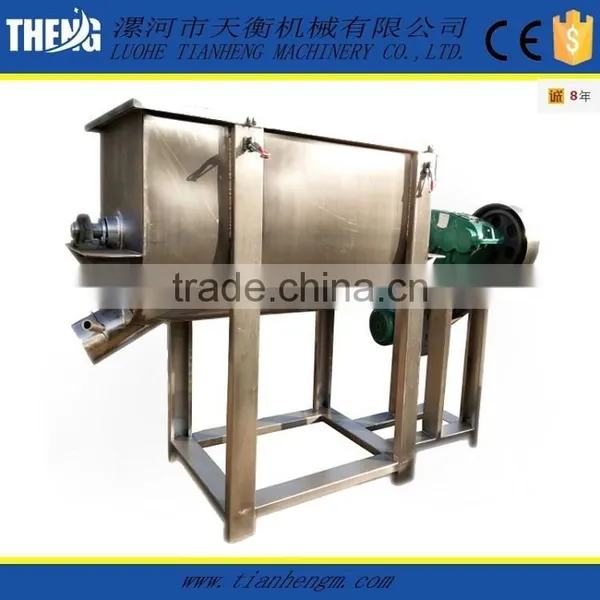

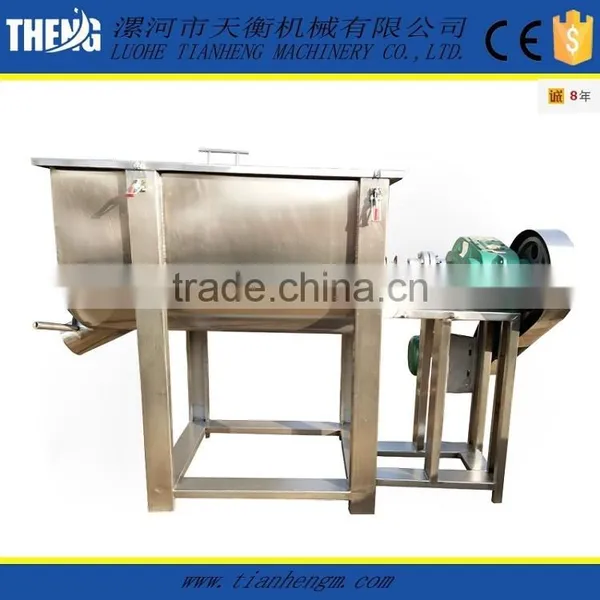

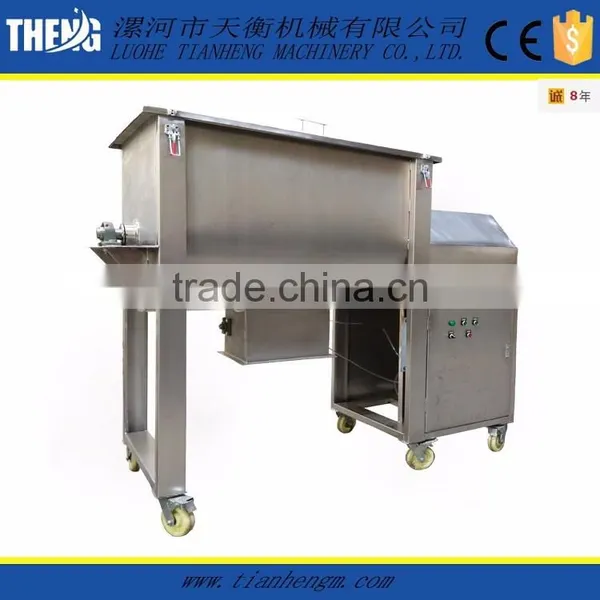

The detailes of mixing machine

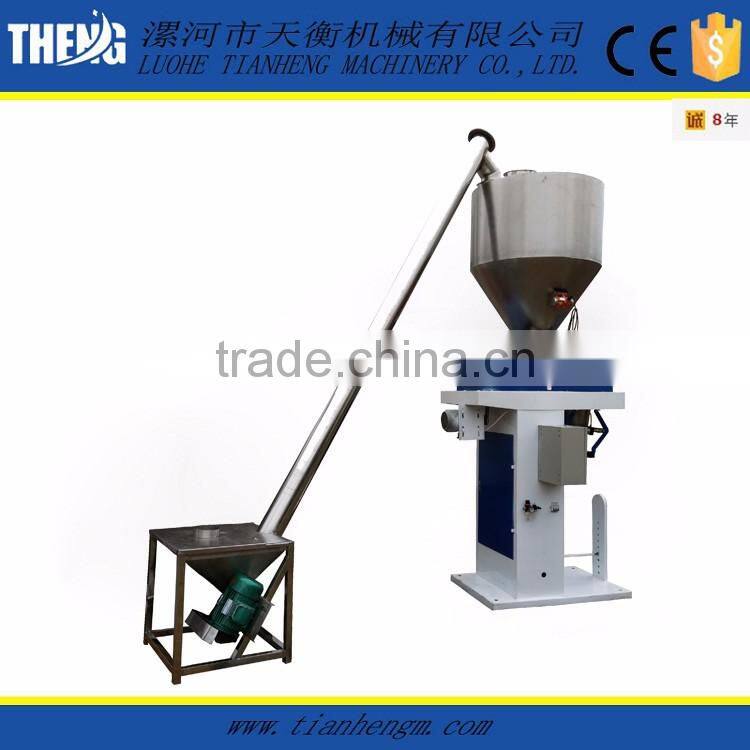

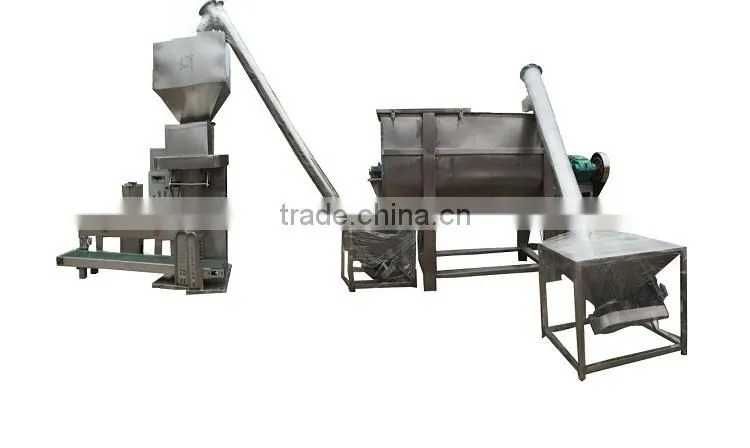

Complete line u may interested
Our company
Business type: manufacturer, trading company
Location: Henan, China(Mainland)
Year established:2014
Registration No.:411103000015035
Main products:
Our philosophy is to provide our customers with a wide choice of quality products and satisfactory services. We have automatic constweigh packing machine, dry powder mixer, putty powder mixer, wood pellet machine, pellet cooler, crusher and conveyor. We assure our customers of a mutually beneficial relationship as we look forward to building business cooperation in the future.
Quality first, reputation above all !
.
Kind Remind:
If you are interested in this machine, please detail your requirements and click the "Send"
below, I will reply you very soon and supply more information!
