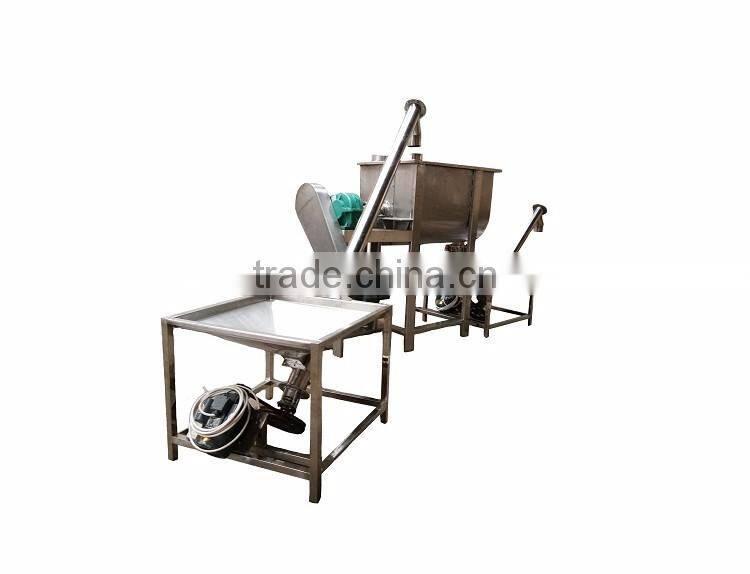

horizontal spices mixing machine 304 stainless
Features of mixing machine
1. Horizontal tank body, covers small area
2. Bearing is on both ends of the mixer, the material is not easy to enter, repair rate is low.
3. Gear box drive the auger shaft, simple maintenance ,high efficiency,save both time and labour.
4. U- Shape tank bottom, easy operate, stir uniformly, no dead angle, better for material discharge and cleaning.
5. Screw conveyor feeds conveniently, inlet flushes with the ground, feeding saves energy and convenient.
6. The machine can be designed to cool or heat the powder inside .
7. Under the bottom or the sides of the tank , there is a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design to make sure no material deposit and no dead angle when mixing .There is a lid and fence on the top of the tank, it seals the tank well, so that no powder will come out during mixing
The technicial parameter of powder mixing machine
| Model | SMJ100 | SMJ200 | SMJ300 | SMJ500 | SMJ1000 | SMJ1500 | SMJ2000 |
| engine power(KW) | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 11 |
| total capacity(kg) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 |
| outlet dimension(m) | 1.5*0.8*1.1 | 2*0.8*1.2 | 2*0.8*1.2 | 2.5*0.8*1.7 | 3.1*0.98*1.9 | 3.3*1.0*1.9 | 3.5*1.25*2.15 |
| mixing tim(min) | 4-8 | 4-8 | 4-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| screw shaft(mm) | 65 | 65 | 65 | 65 | 90 | 90 | 90 |
| ankle strap(mm) | 4 | 4 | 4 | 6 | 8 | 8 | 8 |
| the dimension of the mixing tank | 1.05*0.5*0.6 | 1.15*0.55*0.65 | 1.2*0.65*0.7 | 1.26*0.73*0.85 | 1.8*0.9*1.05 | 2.0*1.0*1.15 | 2.2*1.2*1.35 |
The focus u care
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so o
2. Bearings: NSK/TNT and so on
3. Heating
4 Heavy duty type ( loading your material into the mixer first and then start the mixer)
5 Platform: we build the platform for you or we design it and you build it locally
6. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
Customizing according to client’s specific requirement.
The detailes of mixing machine
