Specification:
Model | Capacity each batch(kg) | Heating source | Power (KW) | Baking trays | Trollys | Diemension |
HXD-1 | 60 | Electrical or steam | 9 | 24 | 1 | 1380*1200*2000mm |
HXD-2 | 120 | Electrical or steam | 15 | 48 | 2 | 2260*1200*2000mm |
HXD-3 | 240 | Electrical or steam | 30 | 96 | 4 | 2260*2200*2000mm |
HXD-4 | 360 | Electrical or steam | 45 | 144 | 6 | 2260*3200*2000mm |
HXD-5 | 480 | Electrical or steam | 60 | 192 | 8 | 4280*2200*2270mm |

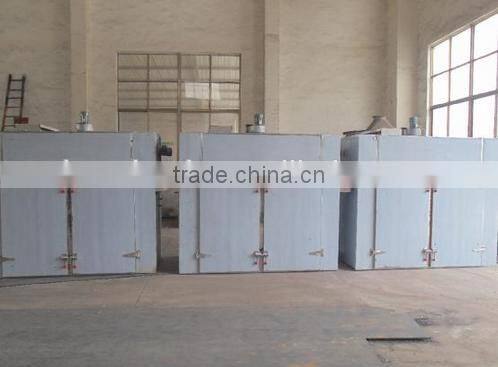

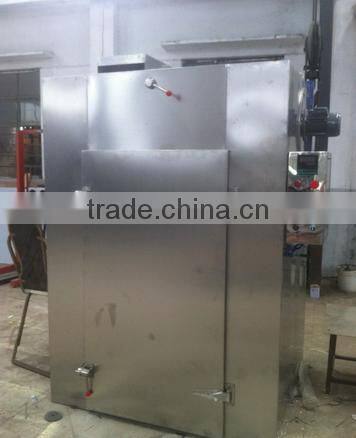

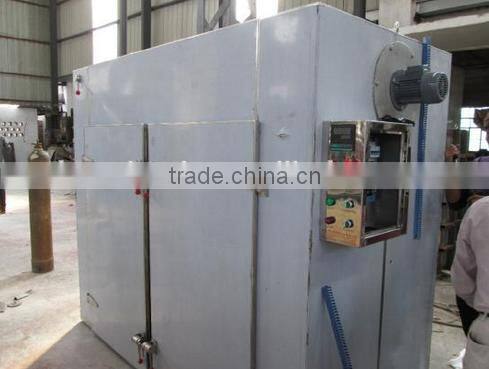

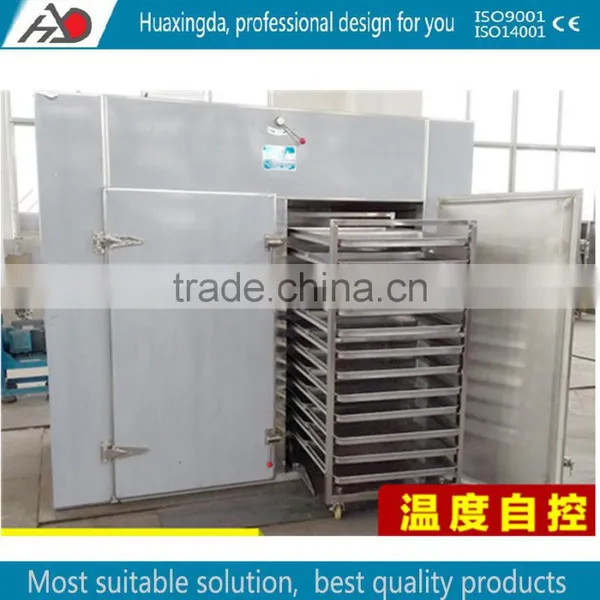

Machine pictures
Oven reaches the working standard:
Operating temperature range: 50 ~ 140 ° C (can be adjusted according to job requirements set).
The total flow of hot air circulating fan is: 3450x3 = 10350m3 / h
Heat source: Electric heating
The maximum loading capacity material: 96x5 = 480kg / times
Material requirements:
Inside walls made of stainless steel 0.8mm, 1.2mm wall using stainless steel sheet production, the middle frame with 5 # angle iron support production.

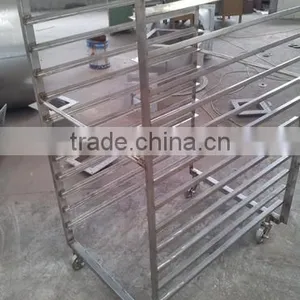

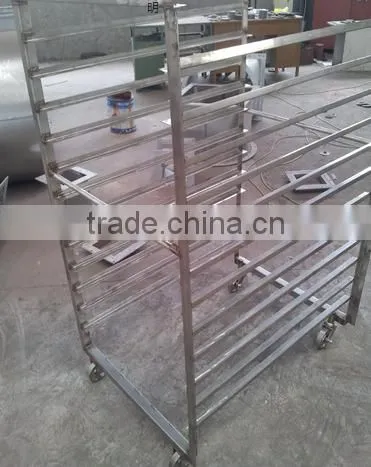

Bake car uses 38x38, 38x25 stainless steel tube production, rungs using δ1.5mm stainless steel sheet production.

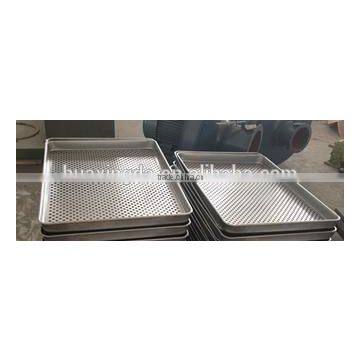

Baking tray using the punching mechanism, baking tray size: 640x460x45mm silicate insulation materials are cotton insulation, insulation thickness of 80mm.
Oven door seal made of food grade silicone rubber ring (custom-made according to the requirements of the door)
Production requirements:
Assembled box for the whole top of the cabinet patchwork of <2mm
Tank shell temperature <40 ° C (in contact work more than three hours)
Noise of <72dB (decibels)
Cabinet duct inner and outer surfaces smooth and no glitches, no obvious bump phenomenon, no dead ends, easy to clean. Flatness of the outer surface of the housing is not more than 5/1000.
Product quality and service commitment;
1, the device warranty period of one year, during the warranty period, free wearing parts (except for man-made damage)
2,Usually in 2 working days after receiving the maintenance of telephone or fax to reach the,demand side (except in exceptional circumstances);
3,Outside the warranty period, for the supply of all kinds of spare parts (nuclear closing cost fees), long-term supply;
