Turmeric Mixing Machine Turmeric Blending Machine Turmeric Mixer

FOB Price

US$ 5,000 - 80,000 / Set

1 Set(Min. Order)

Port Shanghai Port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Mixer Type	Ribbon
Product Type	Detergent Powder	Application	Powder
Additional Capabilities	Other, turmeric	Place of Origin	Jiangsu, China
Brand Name	BrightSail	Model Number	BS
Max. Loading Capacity	10000L	Voltage	Customized
Power(W)	0.75KW~45KW	Dimension(LWH)	Referring
Certification	CE ISO	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

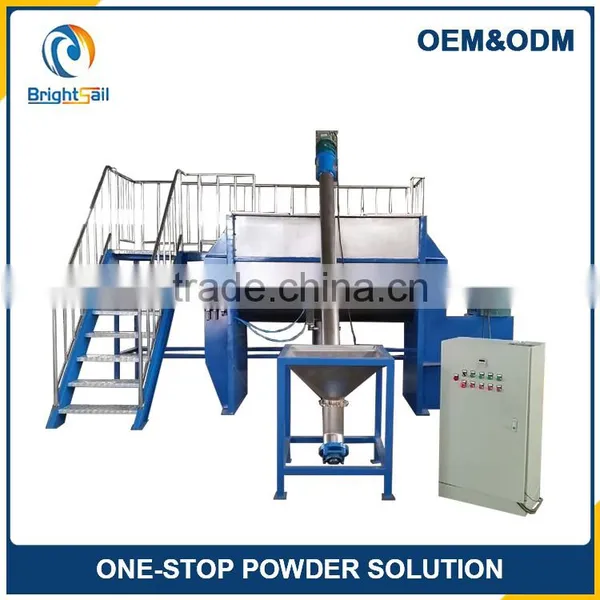

Ribbon mixer

Product Application

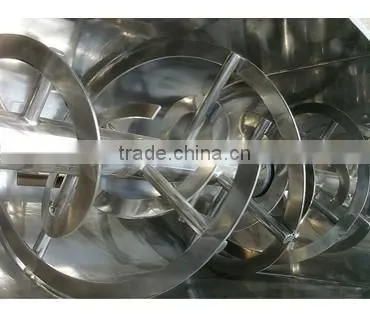

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.

It has a very good effect for blendibg turmeric.

Model	Max work volume(L)	Rotate speed (rpm)	Overall size (LWH) (mm)	Weight(kh)
BSR-300	180	66	1550(L)812(W)1015(H)	780
BSR -500	300	66	1975(L)1059(W)1120(H)	955
BSR-1000	600	41	2340(L)1380(W)1455(H)	1400
BSR-2000	1200	33	2480(L)1651(W)1805(H)	2500
BSR-3000	1800	33	2945(L)1896(W)1980(H)	3300
BSR-4000	2400	29	3038(L)1946(W)2205(H)	3600
BSR-5000	3000	29	3932(L)2010(W)2035(H)	4620
BSR-6000	3600	26	3938(L)1882(W)2246(H)	5300
BSR-8000	4800	26	3986(L)2160(W)2516(H)	6800
BSR-10000	6000	19	4500(L)2270(W)2667(H)	8900

Main Features

1) Simple structure in horizontal U shape ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ，bearings and operation parts.

3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material

Detailed Images

Ribbon mixer cover (safety net)

There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.

Discharge Type

Pneumatic valve is adopted to discharge material

Seal Type on sides of mixer

hermetic seals are adopted on both sides of our ribbon mixer, so powder will not leak into bearing and powder leakage will not happen.

TO ACHIEVE BEST QUALITY

1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF

Our Service

Pre-Sales Service

* Inquiry and consulting support within 24 hours

* Sample testing support.

* View our Factory.

After-Sales Service

* Instructing how to install the machine, instructing how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	It depends
Weight	It depends
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20ft container 40 ft container
Weight	It depends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
