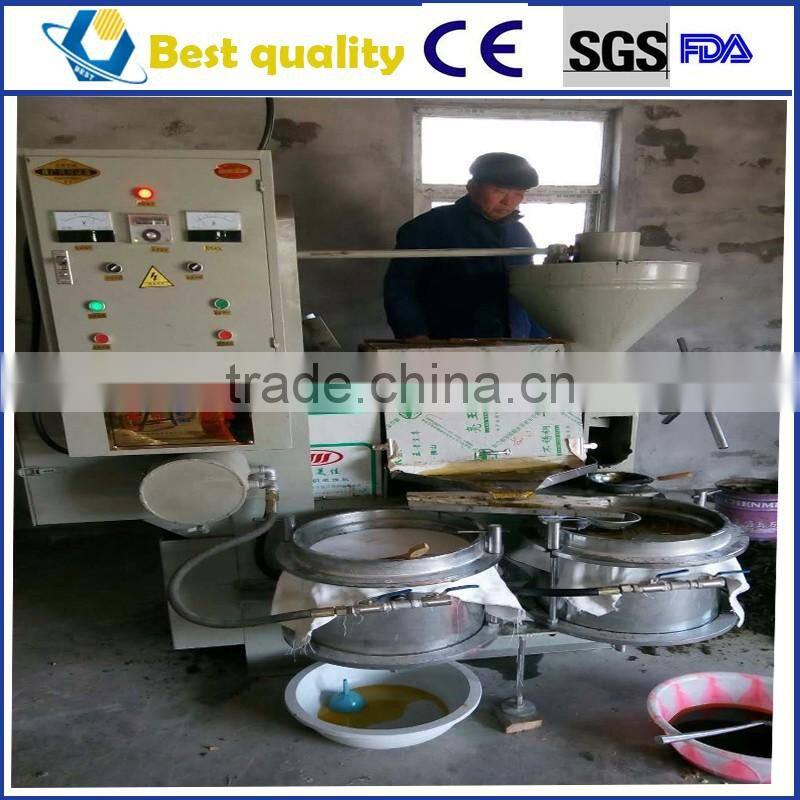

6YL-130 automatic hot pressing oil machine for peanut
1. Widely used : it can press more than 20 kinds of oil seeds.
like, soybean, rape seeds, sunflower seeds, peanut, cotton seeds, hemp seeds, sesame, flax seeds, copra seeds, casters seeds, coconut, palm fruit, moringa seeds, black seeds, canola seeds, chilli seeds, and etc.

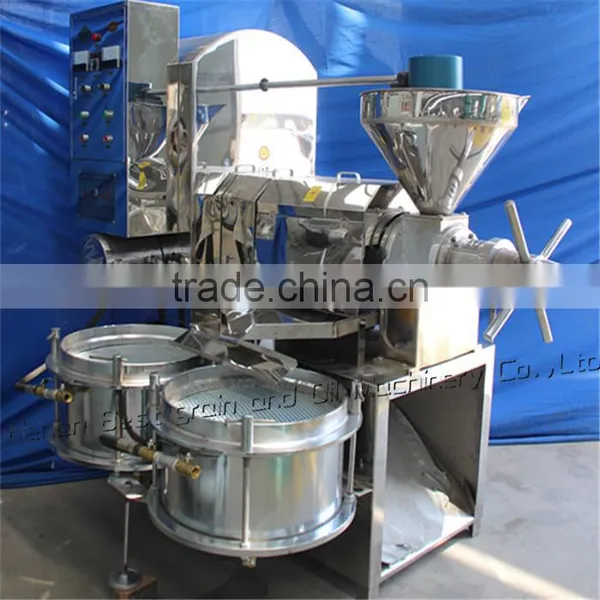

2. Main structure of the 6YL series oil press machine:
Feeding hopper
Temperature controlling system.
Pressing Screw axis and Pressing cage
Vacuum oil filters
Cake outlet and cake thickness adjusting part
this is the cake thickness adjustness:
t
the filtering barrel:
3. The main features: Both cold press and hot press.
And the vacuum filter can filter the raw oil directly at the same time pressing. So that the oil can be filtered to ensure oil quality.
Technical parameter:
Model |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-130 |
6YL-160 |
Speed of press screw |
30-45r/m |
30-40r/m |
30-40r/m |
28-40r/m |
28-40r/m |
Gear ratio of gear case |
14/42x19/57=1:6.63 |
15/40x15/55=1:9.78 |
15/34x15/55=1:9.59 |
15/38x19/48=1:7.38 |
15/38x15/52=1:8.78 |
Boundary dimension(mm) |
1650*1150*1750 |
1950*1300*1900 |
2050*1350*2000 |
2200*1600*2150 |
2500*1600*2500 |
Handling capacity |
80-150kg/h (1.92T~3.6TPD) |
150-250kg/h (3.6T~6TPD)
|
200-300kg/h (4.8T~7.2TPD)
|
250-400kg/h (6T~9.6TPD)
|
400-600kg/h (9.6T~14.4TPD)
|
Weight |
760kg |
950kg |
1100kg |
1300kg |
2000kg |
Main engine power |
Y160L-6-5.5KW |
Y160M-6-7.5KW |
Y160L-6-11KW |
Y180L-6-15KW |
Y200L-6-18.5KW |
Vacuum pump power |
Y90S-4-0.55KW |
Y90S-4-1.1KW |
Y100L1-4-1.5KW |
Y100L1-4-2.2KW |
Y100L1-4-2.2KW |
Heater power |
2KW |
3KW |
3.3KW |
3.8KW |
4KW |
The oil press must be installed by bolts firmly on the foundation and keep horizontal
1.Screw oil press machine is an advanced oil pressing machine in edible oil market.
2.It is used for both cold and hot oil extrusion process from a wide range of oil plants such as peanuts, rapeseed, cotton seeds and copra and so on.
3.Integrated screw oil press machine enjoys wide popularity in small and large scale oil pressing plants because it can not only press oil but also filter oil by vacuum filtering device, thus saves cooking oil extracting time , reduce cost and simplifies oil pressing.
Cake thickness adjusting:
Rotating adjusting handle clockwise will make the cake thicker, and otherwise will make it thinner.
Each circle of adjusting handle will change the thickness to 0.4-0.5mm.
Company information :
1. Over 30 years of experience in grain and oil machinery processing.
2. Got CE ,ISO 9001:2008,FDA,SGS certificates approved.
3. Long term cooperation with famous gain colleges and mechanical design research institutes.
4. Keep doing research and application on oil equipment, protein extraction, phospholipid extraction, etc.
5. Equipped with modern manufacturing workshops,strictly inspection for materials and fabrication.
6. Overseas installation, commissioning, test-run and after-sales service is available.
7. Welcome to visit our factory anytime.
1,How long can we get the goods?
we usually delivery in 25 working days, we will inform you shipping time .
2,How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
3,How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
4,What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected .
Western Union ,L/C ,Trade Assurance,Etc.
5,What’s your MOQ
1 set
