Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant

Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant thumbnail-1
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant thumbnail-2
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant thumbnail-3
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant thumbnail-4
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant photo-1
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant photo-2
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant photo-3
Oil Seeds Steaming Cooker for Cooking Oil Pretreatment Plant photo-4
US$ 3,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, for oil seeds sofetening and cooking
Type:
Seed Roaster
Contact Supplier Request Quote Chat Now
Henan Best Grain & Oil Machinery Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
anyport of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, for oil seeds sofetening and cooking
Type Seed Roaster
Automatic Grade Automatic
Production Capacity 80- 100T/D sofetening capacity
Place of Origin Henan, China
Brand Name beiside
Model Number YZCL 210*5
Voltage 380V/50HZ
Power(W) 37kw
Certification CE ISO FDA CAC
After-sales Service Provided Overseas service center available

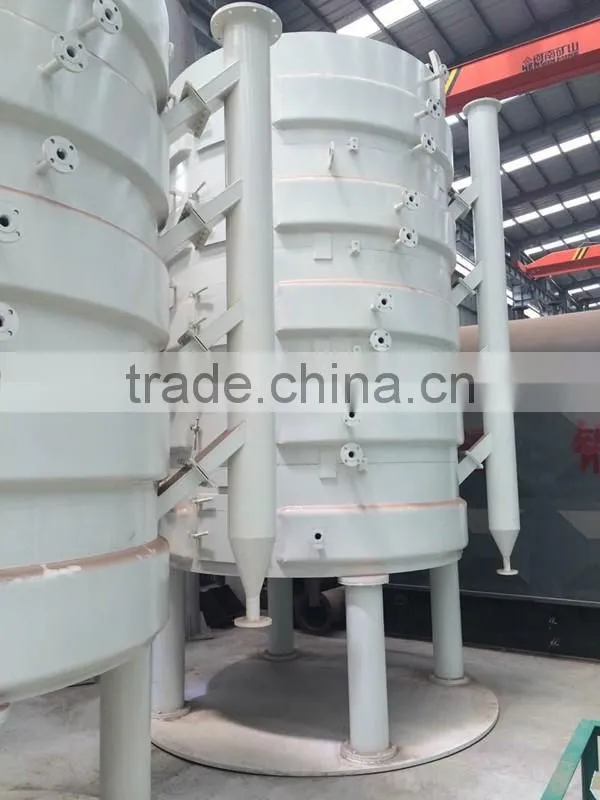

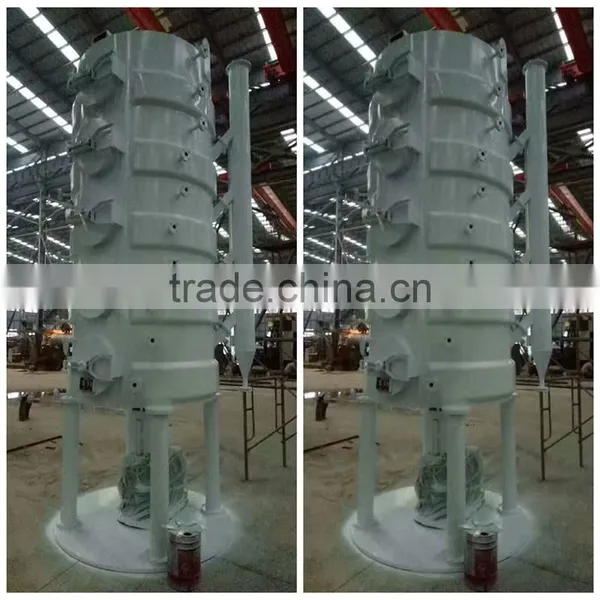

multiple layer vertical steam cooker for oil seeds pretreatment



The automatic steaming and stir-frying cauldron is one of the major equipments for oil processing.

It is used to steam and fry the plant embryo.Namely,it makes the raw embryo cooked by wetting,heating,steaming and roasting to contribute to processing oil and improving the oil quality.

Besdies,it also can apply to frying embryos of other fields in food,medicine,chemical industry,etc.

oil seeds steaming cooker for cooking oil pretreatment plant

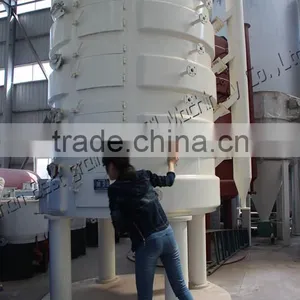

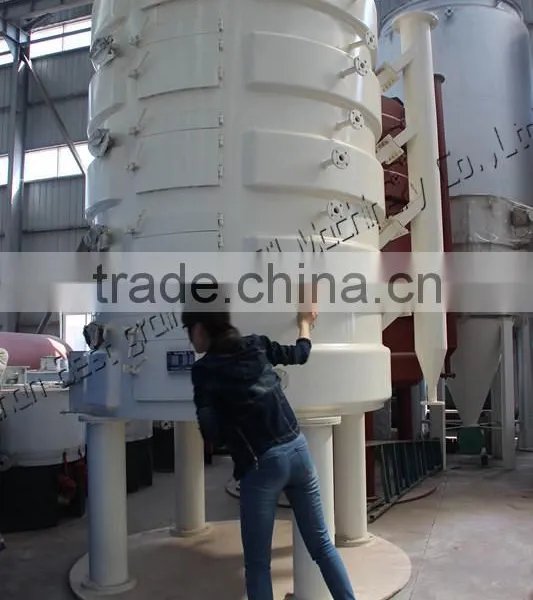

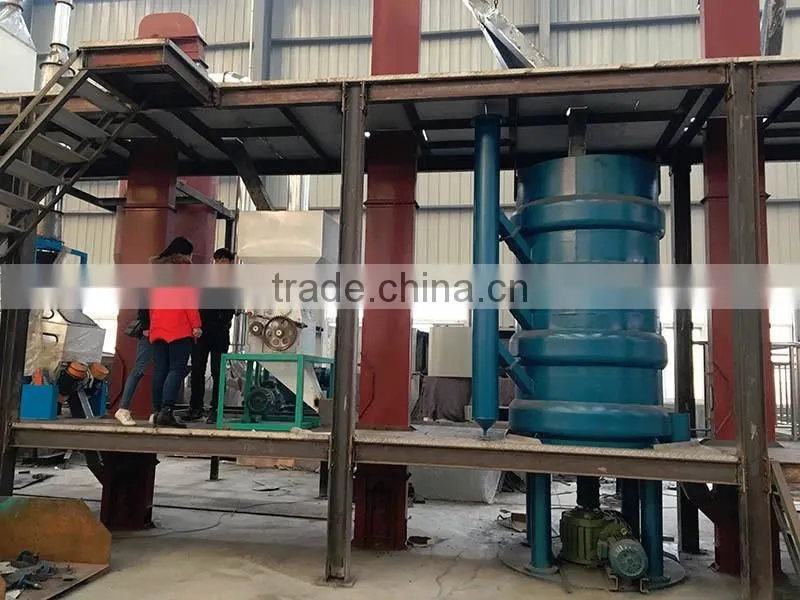

installed steam cooker:

oil seeds steaming cooker for cooking oil pretreatment plant

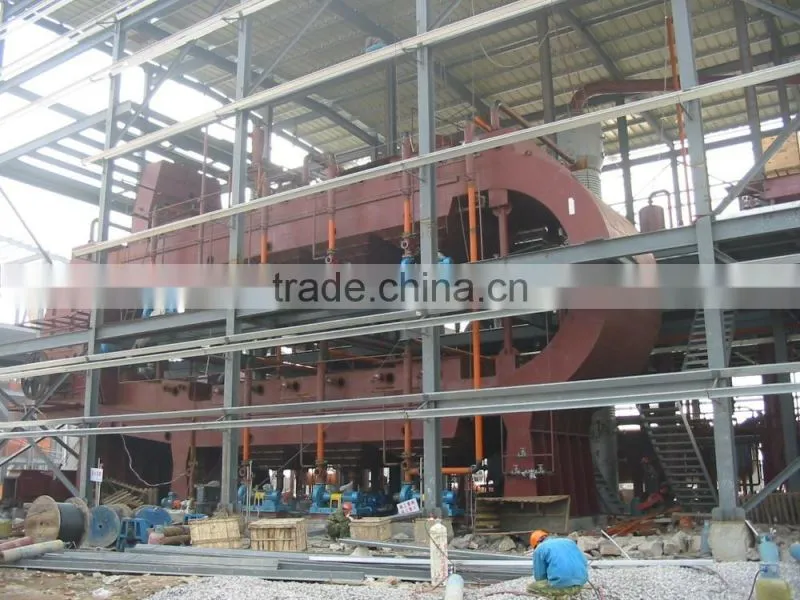

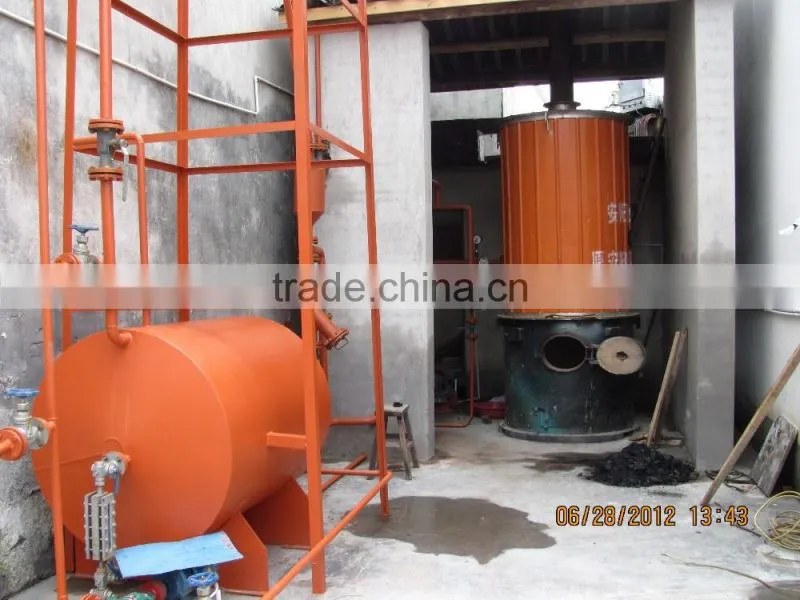

the heating system: conduction oil boiler:

oil seeds steaming cooker for cooking oil pretreatment plant

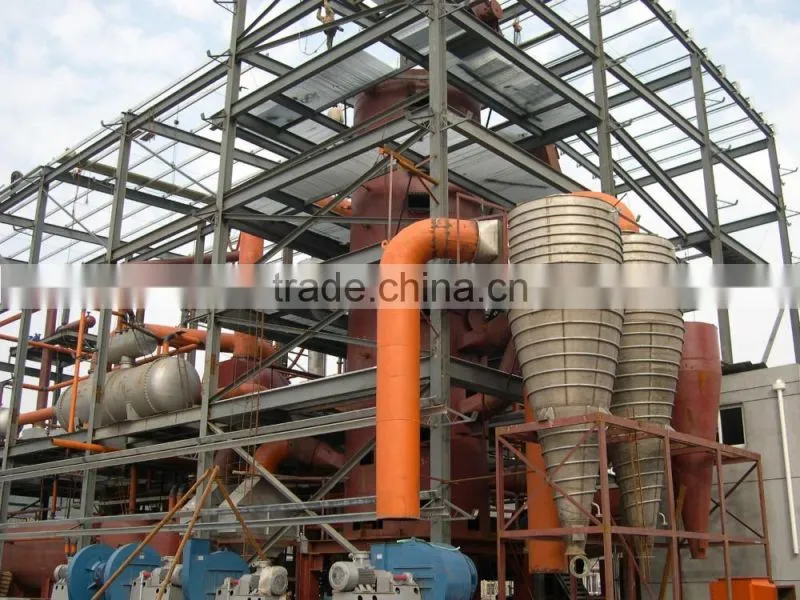

solvent oil extraction equipment:





the installed projecty for 2000Tons soybean :

oil seeds steaming cooker for cooking oil pretreatment plant



technical parameter of multiple layer vertical steam cooker for oil seeds pretreatment:





Model

Capacity(t/d)

Power(KW)

Heating Area(m)



Softening

Cooking





YZCL150x5

40-60

20-30

22

14.5

YZCL180x5

80-100

40-50

30

20

YZCL210x5

100-150

60-70

30

26.2

YZCL250x5

160-200

80-90

37

42

YZCL250x6

180-250

90-100

45

50.4

YZCL280x5

220-260

110-130

55

52

YZCL280x6

260-300

130-150

55

62

YZCL300x5

250-300

120-140

55

56.8

YZCL300x6

300-350

150-200

75

67

YZCL400x5

550-600

280-300

110

89.4

YZCL400x6

700-800

300-350

132

107

YZCL400x7

800-900

350-400

132

12



 Product Features:

1.Cooking oilseed,steam or conduction oil as medium.

2.Low energy consumption,stable operation,small occupied area and high production efficiency.

3.Simple structure,convenient installation,operation and maintenance,and low failure rate.

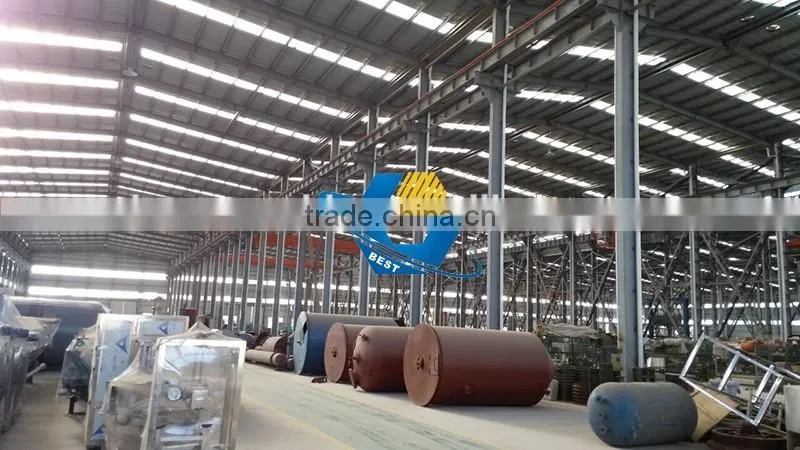

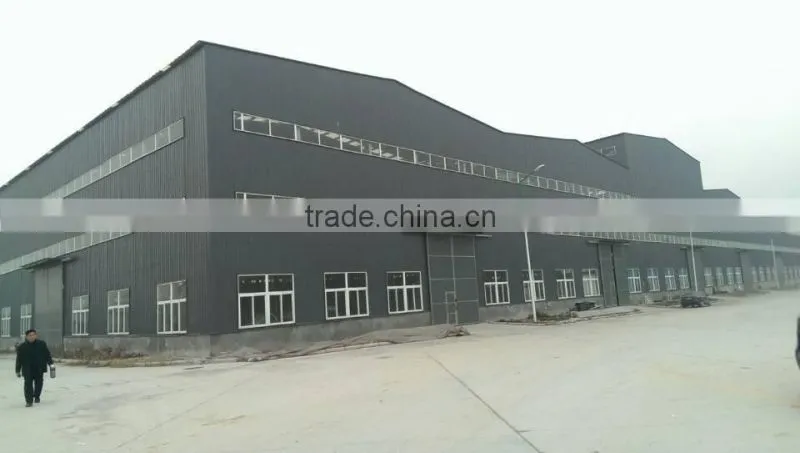

our company :

oil seeds steaming cooker for cooking oil pretreatment plant



oil seeds steaming cooker for cooking oil pretreatment plant



Company information :

1. Over 30 years of experience in grain and oil machinery processing.

2. Got CE ,ISO 9001:2008,FDA,SGS certificates approved.

3. Long term cooperation with famous gain colleges and mechanical design research institutes.

4. Keep doing research and application on oil equipment, protein extraction, phospholipid extraction, etc.

5. Equipped with modern manufacturing workshops,strictly inspection for materials and fabrication.

6. Overseas installation, commissioning, test-run and after-sales service is available.

7. Welcome to visit our factory anytime.



Main business :

1-10T/D Single oil press, oil mill,oil expeller for small scale oil production.

Big capacity oil production line:

10-500T/D oilseeds pre-cleaning, drying and storage turn-key project.

100-3000T/D solvent extraction workshop section project:

100-3000T/D solvent extraction workshop section project.

30-1000T/D oil continuous physical refining production line .

20-600T/D sunflower oil, rice bran oil, corn germ oil de-waxing turnkey project.
