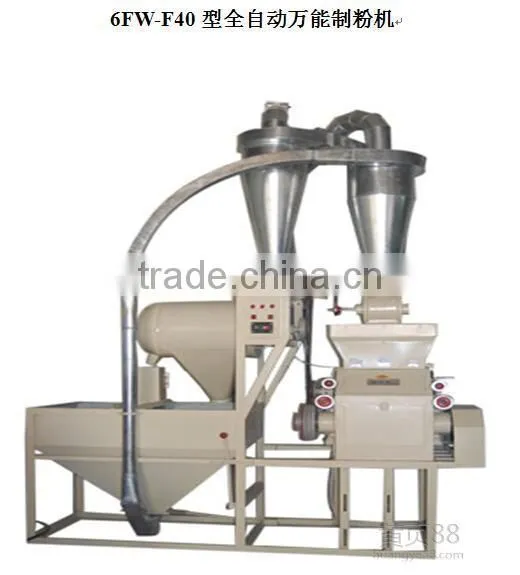

Name: 300-500Kg/H Self-feeding Roller Flour Mill for Rice
Related words: Rice Flour Mill
Application:
With the application of high pressure air blower,this machine could realize self-feeding.This can increase the milling capacity to a great extent.It can process many grains and seeds e.g. Maize,Beans,Sorghum,etc, is an ideal choice for small scale processing workshop. It is featured of low power consumption, high production, and good sealing without flying powder .
It is widely used to process wheat,corn,rice,etc.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Basic Processes of flour milling
1.Grinding
fragmenting the grain or its parts,with some dissociation of anatomical parts of the grain from one another.The succession of grinding is grouped into three systems:Break,Scratch and reduction.Each has a distinct objective.
2.Sieveing
classifying mixtures of particles of differing particle size into fractions of narrower particle size range.Names of the particular sieveing processes include:
scalping--sieving to separate the break stock from the remainder of a break grind;
dusting,bolting,dressing--sieving flour from the coaster particles;
grading--classifying mixtures of semolina,middles and dunst into fractions of restricted particle size range.
3.Purifying
separating mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents.
Working Principle:
The grinding in a roller mill is accomplished on a pair of rolls rotating in opposite directions.At the nip(where two rolls approach each other),the two surfaces are going in the same direction.The rolls are generally run at different speeds,with the fast roll going about two and a half time the speed of the slow roll.Thus,in addition to the crushing action as a large particle passes the narrow gap between the two rolls,there is also a shearing action because of the speed differential.
Main Features
2) utilization of compressed air to transport grain via sealed pipes, thus preventing the flour from dispersing into the work environment;
3) lower temperature of the finished product due to a more efficient process, thereby greatly improving the flour's quality.
Main Machine 1
Name:Horizon Bran Finisher
Brand: BEST
Original: CHINA
Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.
Main Machine 2
Name: Wheat Flour Purifier
Brand: BEST
Original: China
Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.
Main Machine 3
Name: Pneumatic Double Roller Mill
Brand: Best
Original: China
Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Main Machine 4
Name: Small Scale Stone Roller Mill
Brand: BEST
Original: China
Nowadays,Stone Mill is widely used in wheat flour milling production for pure natural flour(wheat,rice,corn,etc.). Comparing with large steel mill,Stone Mill could make flour with much higher nutrition value.
Pre-Sales Service
* Inquiry and consulting support.
* Proposal support.
*Visit our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine .
* Engineers available to service machinery overseas.
