Product Details

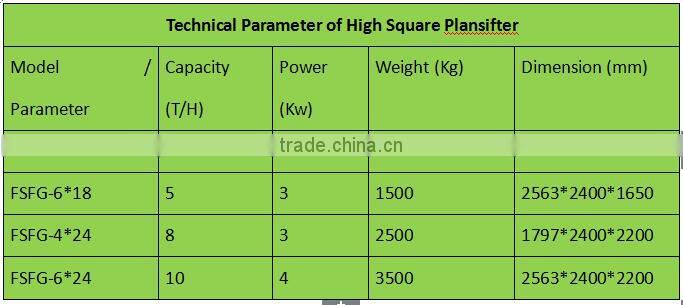

Condition: | New | Place of Origin: | Henan, China | Brand Name: | None |
Model Number: | FSFG-6*24 | Production Capacity: | 100% | Voltage: | 220V/380V |
Power(W): | 4kw | Weight: | 3500kg | Dimension(L*W*H): | 2563*2400*2200mm |
Certification: | ISO9001:2008 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
vibrating wheat flour siever stainless steel flour sifter industrial electric flour shifter flour mill plansifter . fsfg

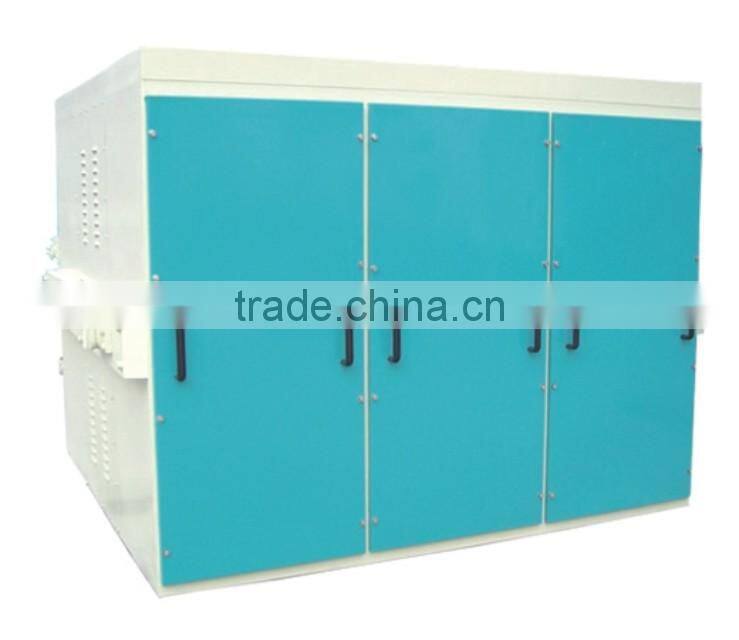

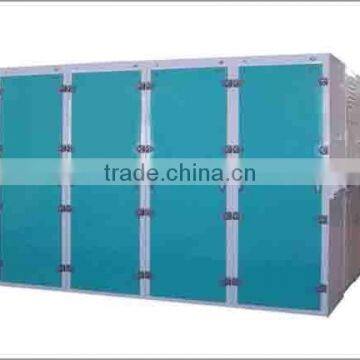

Name: Wheat Flour High Square Plansifter
Application:
High Square Plansifer is used to sift and grade various powdery material,is a very ideal sifter device for maize processing plant, fodder plant, alcohol plant. It is featured of low power consumption, high production, and good sealing without flying powder .
Brief Introduction:

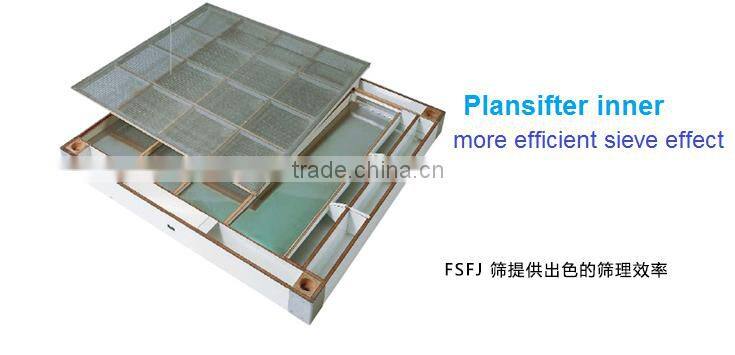

The plansifter is machine consisting of a vertical nest of horizontal sieve,the whole assembly gyrating in a horizontal plane.The mixture to be sieved is fed in at the top and falls from sieve by gravity.A single plansifter incorporate sieves of 4-5 different mesh sizes,thereby delivering 5-6 fractions of different particle sizes. A certain depth of stock on the sieving cloth is required to obtain a satisfactory sieving effect.Owing to the movement of the sieve,the stock resting on it becomes stratified;the finest particles work down until they are adjacent to the cloth,while the largest ride up to the surface of the stock.The overlying layers of medium and coarse particles thus tend to keep the finest particles in contact with the sieve cloth and assist their passage through the sieve apertures.
Working Principle:
The machine is driven through a bevel gear box which can be turned into any of four positions, so that an open belt drive may be taken from a line shaft either parallel to the longitudinal axis of the plansifter or at right angles to it.The gearbox incorporates a spherical driving member which allows the driving shaft to swing freely and slide up and down while the plansifter is wandering during starting or stopping.
Main Features
2) utilization of compressed air to transport grain via sealed pipes, thus preventing the flour from dispersing into the work environment;
3) lower temperature of the finished product due to a more efficient process, thereby greatly improving the flour's quality.
Main Machine 1
Name:Horizon Bran Finisher
Brand: BEST
Original: CHINA
Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.
Main Machine 2
Name: Flour Purifier
Brand: BEST
Original: China
Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.
Main Machine 3
Name: Pneumatic Double Roller Mill
Brand: Best
Original: China
Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Main Machine 4
Name: Small Scale Stone Roller Mill
Brand: BEST
Original: China
Nowadays,Stone Mill is widely used in wheat flour milling production for pure natural flour(wheat,rice,corn,etc.). Comparing with large steel mill,Stone Mill could make flour with much higher nutrition value.
Pre-Sales Service
* Inquiry and consulting support.
* Proposal support.
*Visit our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine .
* Engineers available to service machinery overseas.
