Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill

Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-1
Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-2
Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-3
Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-4
Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-5
Cereal Grinder Crusher Compact Broker Machine 10 Tons per Day Grain Flour Mill Machines Wheat Flour Mill photo-6
US$ 900 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
None
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name None
Model Number 300-500Kg/Hour
Production Capacity 100
Voltage 220V/380V
Power(W) 360kw
Weight 500kg
Dimension(L*W*H) 1450*850*1600mm
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

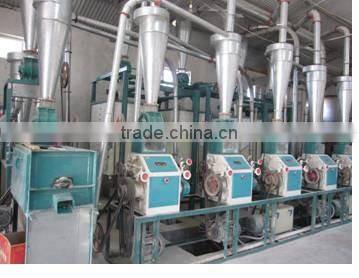

10 tons per day wheat flour mill machines

Product Description:
This set of machines has high efficiency and low energy consumption, which is designed by our professional engineers. The machine has high output rate with good quality flour.
Complete set of wheat or maize flour machine can be divided into THREE parts:
1. cleaning part   2. milling part   3. packing part

1. Cleaning Part

to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.

2. Milling part
 The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving.
(2) Sifter: to separate the flour,bran and other by-product, also separate large size and small size to ensure flour quality.

3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.

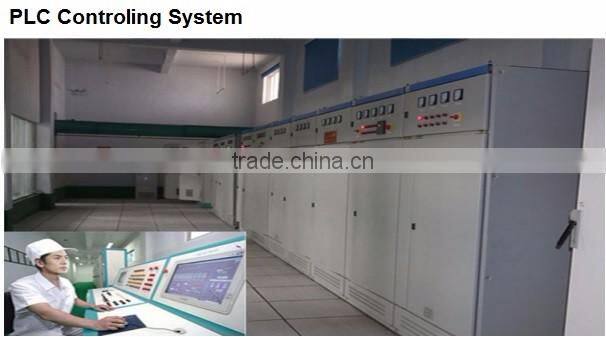

4. PLC controlling system

 To controlling the whole set of machinery to work well and showing the process of working.


Features of wheat flour mill machine:
1. Roller mills are manufactured precisely and controlled by manual or pneumatic mode. It can make better grinding effect comparing with other ordinary mills.
2. Complete sets of large wheat flour mill machine adopt various configuration modes for different choices. There are streamlined design, reasonable layout, beautiful performance .
3. It can be installed on a steel frame structure or in a concrete building.
4. The large wheat flour mill machine is with advanced technical process and flexible adjustment.
5. Good after-sales service and spare parts is supplied for complete set of large wheat flour mill machine.
Certifications
Detailed Images

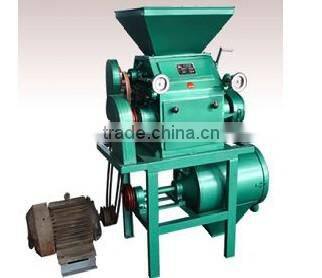

Main Machine 1

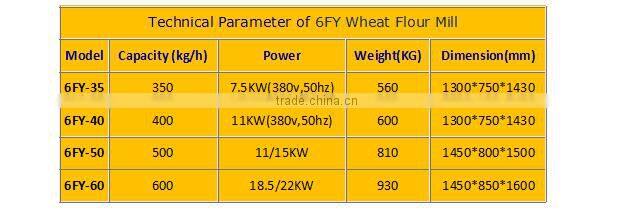

Name: 6FY Wheat Flour Mill

Brand: BEST

Original: CHINA

Applied to the grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Main Machine 2

Name: 6FC Wheat Flour Mill
Brand: BEST
Original: China

With self-feeding system,it is applied to the grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Main Machine 3

Name: Combined Cleaning Machine
Brand: Best
Original: China
This device combined crushing,rubbing,gravity stoner,auto-sieving,scouring,dampening all processes in one.
Features: Automatically wind feeding,compact structure small area occupation,good cleaning effect, low noise and power consumption,stable operating,a good mate for many kinds of milling machines.

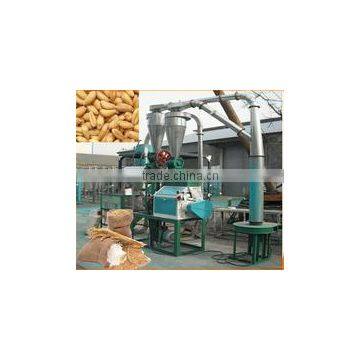

Main Machine 4

Name: Small Scale Wheat Flour Mill Plant
Brand: BEST
Original: China
 With self-feeding system,it is applied to the grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Proposal support.

*Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine .

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping & Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
