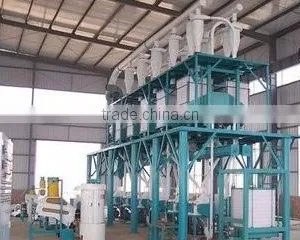

Help CenterAutomatic Wheat Flour Roller Mill Set 5 Ton per Day Premium Double Roller Flour Mill for Sale in Pakistan
Related Products
-
10 Ton per Day Automatic Wheat Flour Roller Mill Set Wheat Flour Mill FactoryUS$ 900 - 5,000MOQ: 1 Unit -
100T/Day Maize Flour Production Line Corn Flour Mill Grain Crusher Cereal Grinding MachineUS$ 1,000 - 50,000MOQ: 1 Unit
-
Small Wheat Flour Plant Stone Mill Grinder Machinery Multi-functional Stone Flour MillUS$ 900 - 2,500MOQ: 1 Unit
-
50T/Day Maize Flour Production Line Corn Grits Mill Plant Cereal Grain Crusher Grinding MachineUS$ 1,000 - 50,000MOQ: 1 Unit
-
20 Tons per Day Grain Flour Mill Machines Cereal Grinder Crusher Compact Broker Machine,flour Poduction Line Wheat Flour MillUS$ 900 - 5,000MOQ: 1 Unit
30 ton per day double roller flour production Line for sale in pakistan
First. Why choose Henan Best Grain and Oil Machinery Engineering Co.,Ltd. ?
1.> Our company has been set up since 1984, It has been awarded the "The quality-star enterprise of China", we have more than 30-years history in the manufacturing of grain and oil machinery.
2.> Our factory is also a group enterprise integrating scientific research, manufacturing, sales as on
3.> We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.
4.> We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries
Second. What can we supply to our customers?
1.> 5-500T per Day High Quality Flour Production line equipment manufacture,installation and Turnkey project;
2.> Equipment spare part supply;
3.> Project design and technology support.
Brief Introduction
This set of machines has high efficiency and low energy consumption, which is designed by our professional engineers. The machine has high output rate with good quality flour.

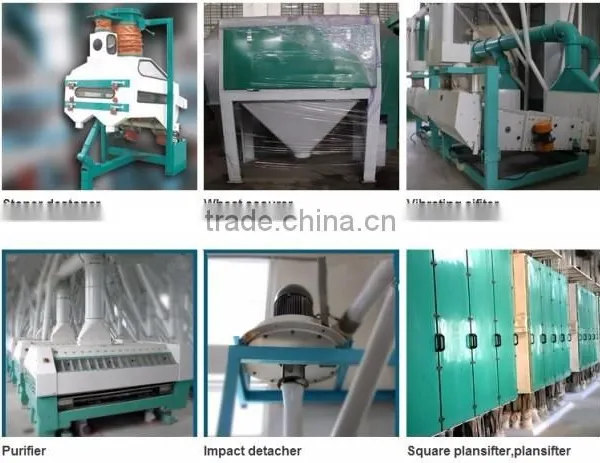

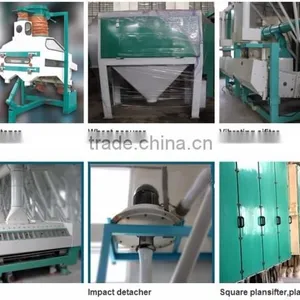

Complete set of wheat flour Plant can be divided into THREE parts:
1. Wheat cleaning part 2. Flour milling part 3. Product packing part
Wheat Cleaning Part 1--
Combined Grain Cleaner
Wheat Cleaning Part 2--

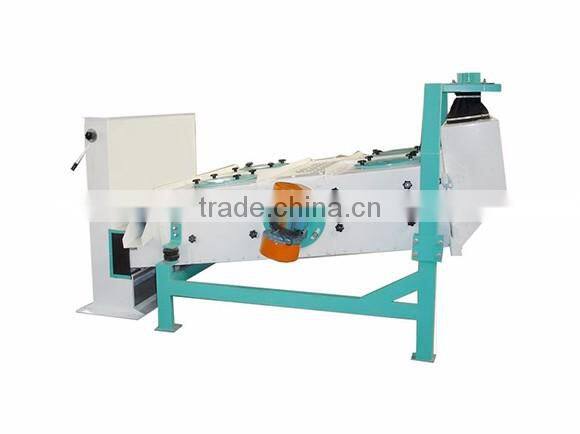

High Efficient Vibrating Sieve
Wheat Cleaning Part 3--

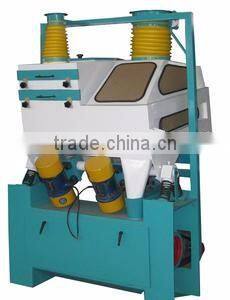

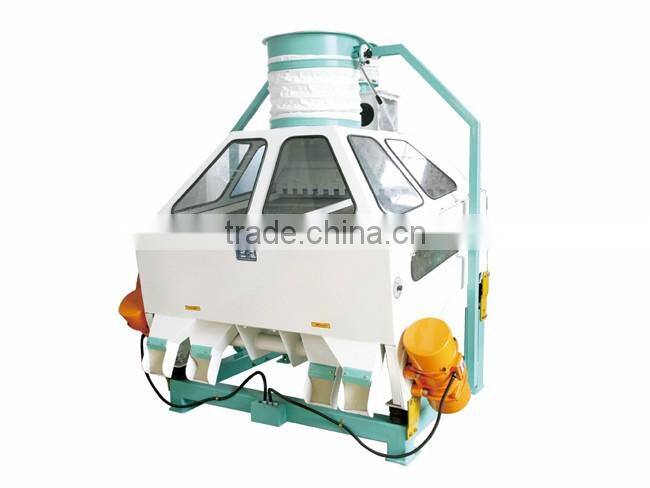

Gravity De-stoner
Wheat cleaning part 4-
Scourer
Wheat cleaning part 5-
Damper
Three Basic Processes of Flour milling Part
1.Grinding
fragmenting the grain or its parts,with some dissociation of anatomical parts of the grain from one another.The succession of grinding is grouped into three systems:Break,Scratch and Reduction.Each has a distinct objective.
2.Sieveing
classifying mixtures of particles of differing particle size into fractions of narrower particle size range.Names of the particular sieveing processes include:
scalping--sieving to separate the break stock from the remainder of a break grind;
dusting,bolting,dressing--sieving flour from the coaster particles;
grading--classifying mixtures of semolina,middles and dunst into fractions of restricted particle size range.
3.Purifying
separating mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents.
Flour milling Part 1
Wheat Mill
Flour milling Part 2

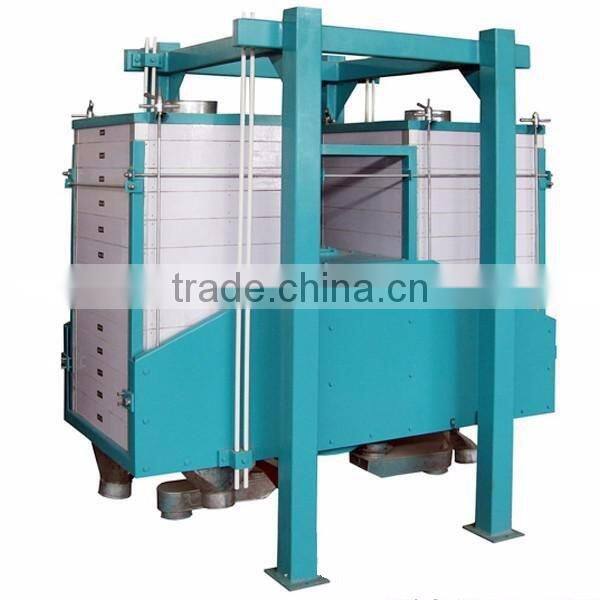

flour plansifter
Flour milling Part 3

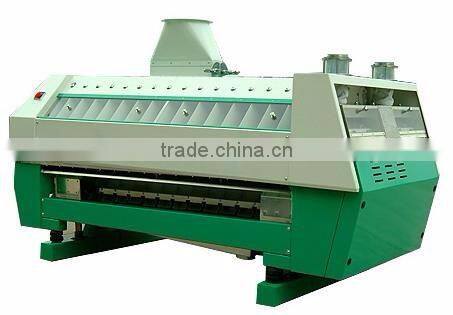

Purifyer

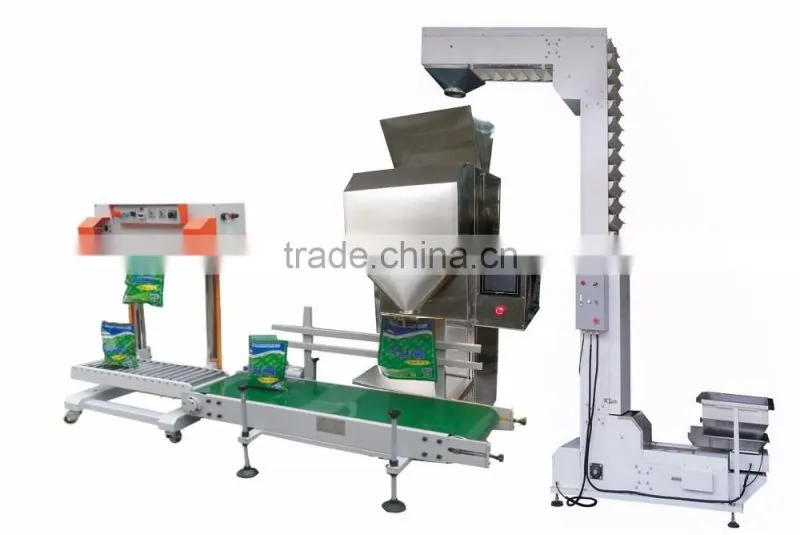

Flour Packing Machine
Weighing and packing
Flour Packing Machine

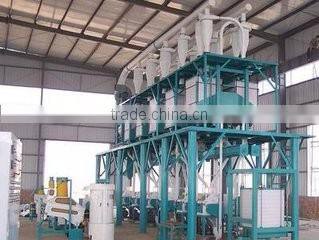

5-20T per day Small Scale Wheat Flour Milling Machine Set
Mainly include:
Flour Mill,Flour Sieve,Air Lock,Discharger, Cyclone,Blower , Pipe,Storage Hopper,etc.Main Features:
2) utilization of compressed air to transport grain via sealed pipes, thus preventing the flour from dispersing into the work environment;
3) lower temperature of the finished product due to a more efficient process, thereby greatly improving the flour's quality.
Main Machine 1
Name:Horizon Bran Finisher
Brand: BEST
Original: CHINA
Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.
Main Machine 2
Name: Wheat Flour Purifier
Brand: BEST
Original: China
Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.
Main Machine 3

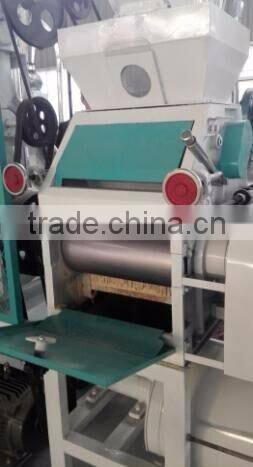

Name: Pneumatic Double Roller Mill
Brand: Best
Original: China
Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.
The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Main Machine 4
Name: Small Scale Stone Roller Mill
Brand: BEST
Original: China
Nowadays,Stone Mill is widely used in wheat flour milling production for pure natural flour(wheat,rice,corn,etc.). Comparing with large steel mill,Stone Mill could make flour with much higher nutrition value.
Pre-Sales Service
* Inquiry and consulting support.
* Proposal support.
*Visit our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine .
* Engineers available to service machinery overseas.
