5 Ton per day Grain mill Automatic Maize/Wheat Flour Milling Machine

5 Ton per day Grain mill Automatic Maize/Wheat Flour Milling Machine

First. Why choose Henan Best Grain and Oil Machinery Engineering Co.,Ltd. ?
1.> Our company has been set up since 1984, It has been awarded the "The quality-star enterprise of China", we have more than 30-years history in the manufacturing of grain and oil machinery.
2.> Our factory is also a group enterprise integrating scientific research, manufacturing, sales as on
3.> We have cooperated with Research Institute of Machine Design Company of Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
4.> We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.
5.> We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries
Second. What can we supply to our customers?
1.> 500Kg-500T per Hour Wheat Flour Production equipment manufacture,installation and Turnkey project;
2.> Equipment spare part supply;
3.> Project design and technology support.

5 Ton per day Grain mill Automatic Maize/Wheat Flour Milling Machine

 Roller Flour Mill,Wheat Flour Milling Machine

Wheat Flour Mill, Rice Flour Mill

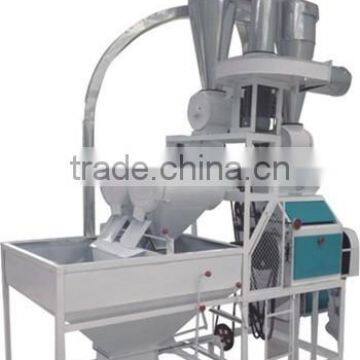

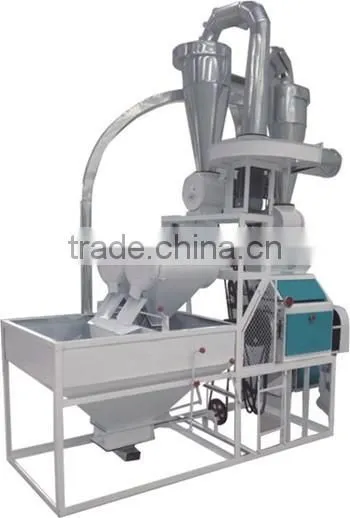

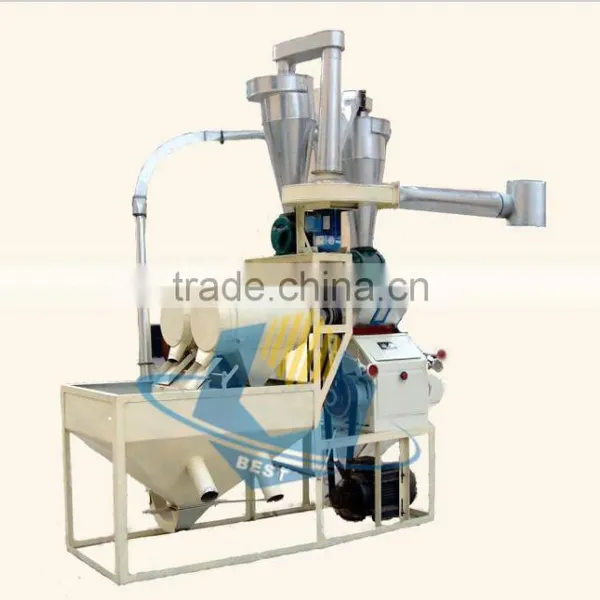

this machine set include Flour Mill,Flour Sieve,Cyclone,Air Pipes,Discharger,etc.

Application of wheat flour milling machine:

   With the application of high pressure air blower,this machine could realize self-feeding.This can increase the milling capacity to a great extent.It can process many grains and seeds e.g. Maize,Beans,Sorghum,etc, is an ideal choice for small scale processing workshop. It is featured of low power consumption, high production, and good sealing without flying powder .
It is widely used to process wheat,corn,rice,etc.
    The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Working Principle of wheat milling machine:

The grinding in a roller mill is accomplished on a pair of rolls rotating in opposite directions.At the nip(where two rolls approach each other),the two surfaces are going in the same direction.The rolls are generally run at different speeds,with the fast roll going about two and a half time the speed of the slow roll.Thus,in addition to the crushing action as a large particle passes the narrow gap between the two rolls,there is also a shearing action because of the speed differential.

Wheat Flour Process Flow :

Raw material→precleaning→cleaning→tempering→milling→packaging

Three Basic Processes of wheat Flour milling machine

1.Wheat Grinding

fragmenting the grain or its parts,with some dissociation of anatomical parts of the grain from one another.The succession of grinding is grouped into three systems:Break,Scratch and Reduction.Each has a distinct objective.

2.Flour Sieveing

classifying mixtures of particles of differing particle size into fractions of narrower particle size range.Names of the particular sieveing processes include:
scalping--sieving to separate the break stock from the remainder of a break grind;
dusting,bolting,dressing--sieving flour from the coaster particles;
grading--classifying mixtures of semolina,middles and dunst into fractions of restricted particle size range.

3.Flour Purifying

separating mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents.

Main Features of Wheat Milling Equipment Set

Main Machine 1

Name:Horizon Bran Finisher

Brand: BEST

Original: CHINA

Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.

Main Machine 2

Name: Wheat Flour Purifier
Brand: BEST
Original: China

Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.

Main Machine 3

Name: Pneumatic Double Roller Mill
Brand: Best
Original: China
Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.

The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Main Machine 4

Name: Small Scale Stone Roller Mill
Brand: BEST
Original: China
 Nowadays,Stone Mill is widely used in wheat flour milling production for pure natural flour(wheat,rice,corn,etc.). Comparing with large steel mill,Stone Mill could make flour with much higher nutrition value.
