Small Virgin coconut oil mill machinery with good prices
Highlights of virgin coconut oil press Machine :
1) Low temperature pressing ≤60℃,Low temperature processing ≤75℃
to extremely reserve the original nutrition and flavor of VCO (virgin coconut oil ).
2) Adopting Food grade stainless steel to manufacture all the copra process machines.
3) High oil recovery ratio, could totally reach as high as 60% of coconut meat.
First. Why choose Henan Best Grain and Oil Machinery Engineering Co.,Ltd. ?
1.> Our company has been set up since 1984, It has been awarded the "The quality-star enterprise of China", we have more than 30-years history in the manufacturing of grain and oil machinery.
2.> Our factory is also a group enterprise integrating scientific research, manufacturing, sales as on
3.> We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries
Second. What can we supply to our customers?
1.> 10-15TPD High Quality Virgin Coconut Oil (VCO) Production equipment manufacture,installation and Turnkey project;
2.> Equipment spare part supply;
3.> Project design and technology support.
Features of Virgin Coconut Oil--VCO
High quality virgin coconut oil is as clear as water when the temperature is above 26℃,and with light coconut sweet smell and pleasant taste.
When the temperature is under 22 ℃,the oil will become into white solid form.The lower the temperature,the firmer the solid will become.
VCO--- Virgin Coconut Oil
RBD CO---Refined Bleached Deodorized Coconut OilVirgin Coconut Oil Process Flow -- complete set coconut oil mill
Raw Material: Coconut Fruit
Finished Product: High Quality Virgin Coconut Oil
Process capacity: 10-20TPD
Process Flow of Small Virgin Coconut Oil mill machinery with good prices:
Fresh coconut → Peeling epicarp→ Dehulling mesocarp → Stripping endocarp→
Dewater for meat → Washing Fresh meat → Meat Crushing → Low Temperature Dryer(≤75℃) →
Low Temperature Oil Pressing (≤60℃) → precipitating and separating(centrifugation) →
Virgin Coconut Oil
1st. Step of virgin coconut oil mill
Peeling epicarp -- complete line of virgin coconut oil mill, this machine is used to peel the green epicarp of the coconut fruit.
2nd. Step of virgin coconut oil mill
Dehulling mesocarp -- complete line of virgin coconut oil mill ,this machine is used to peel the fibre mesocarp of the coconut fruit.
3rd. Step of virgin coconut oil mill
Stripping endocarp ,this machine is used to strip the black hard endocarp of the coconut fruit.after this step,the meat is exposed.
4th Step of virgin coconut oil mill
Dewater for meat,in this step the coconut will be cut into two section,the water will be collected for other production,the meat will be taken out of the shell.
5th Step of virgin coconut oil mill

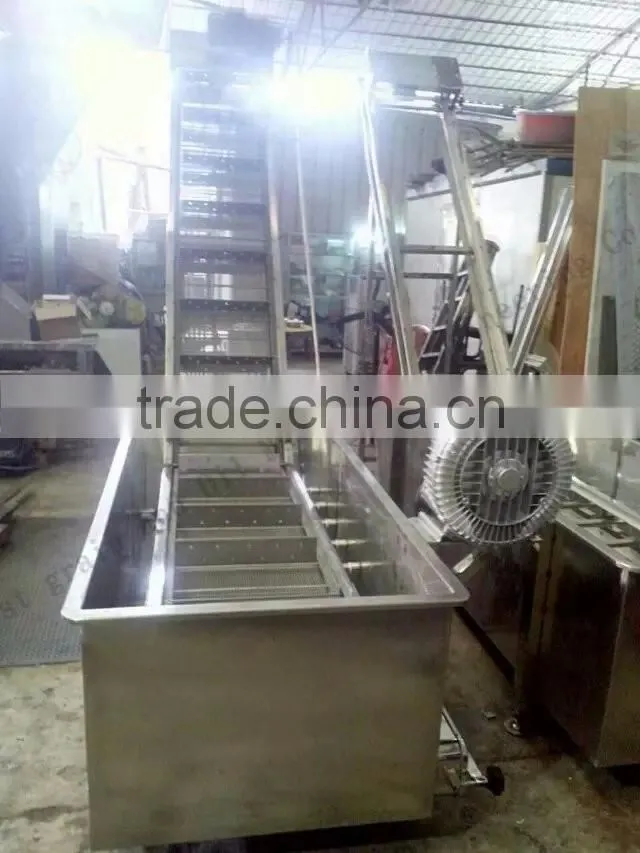

Washing the Fresh meat

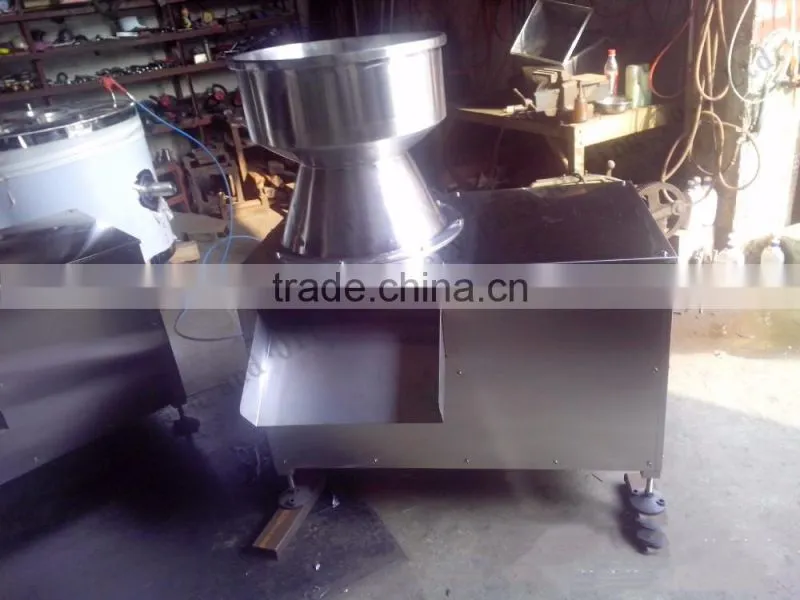

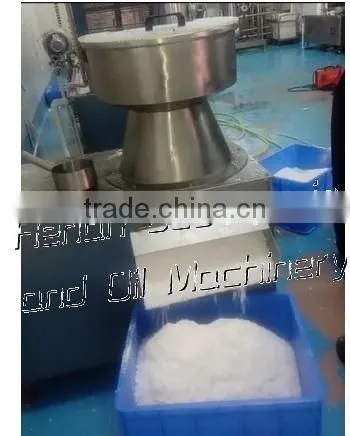

6th Step of virgin coconut oil mill
Fresh meat Crushing
this machine is used to produce shredded coconut stuffing
7th Step of virgin coconut Oil Plant

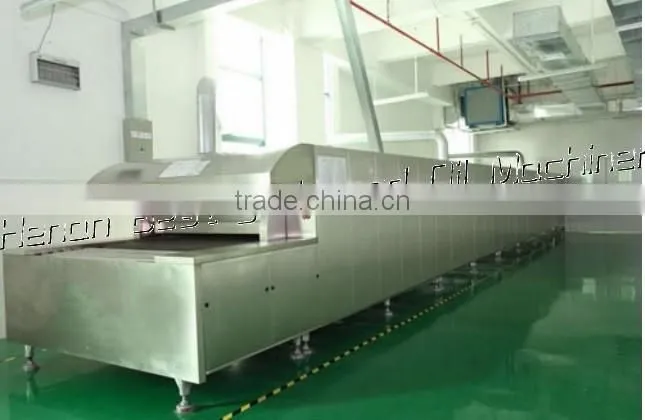

Low Temperature Dryer(≤75℃)
this step is used to dry the shredded coconut stuffing,
pretreatment for oil press
8th Step of virgin coconut Oil Plant

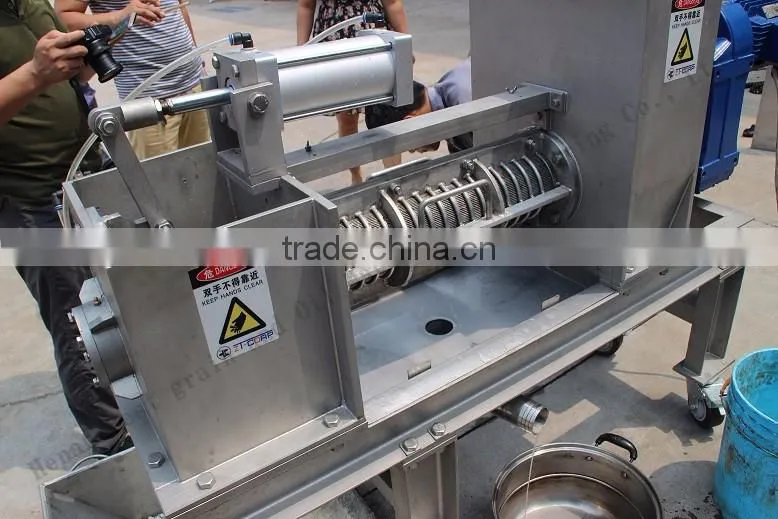

Low Temperature Oil Pressing (≤60℃)
for virgin coconut oil
9th Step of virgin coconut Oil Plant

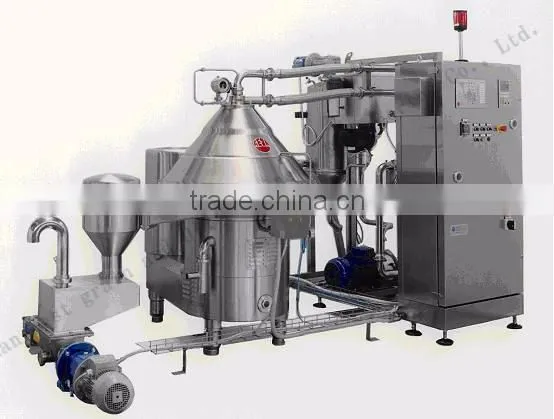

Oil precipitating and separating (centrifugation) ,this step needs about 3-5days to get pure virgin coconut oil.
10th Step of virgin coconut Oil Plant
Oil Bottling System for finished oil
Main Features of Small Virgin Coconut Oil Mill Machinery :
1) Simple structure in linear type ,easy in installation and maintaition.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Process Remarks of Small Virgin Coconut Oil Mill Machinery :
1.）From the beginning of the meat Extraction to the finish of drying process,the meat`s temperature is controlled below 75℃,and time duration no long than 4 hours.
2.）The temperature of the oil and meal is below 60℃ during the Oil pressing stage;
3.）Finally,through 3-5days`precipitation and centrifugation of the pressed crude oil ,could get High quality virgin coconut oil .

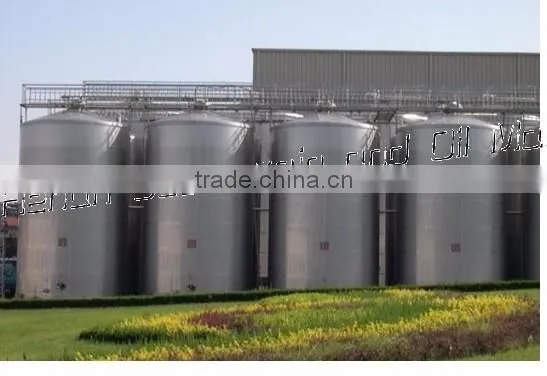

Project Image 1
Name: Vegetable Oil Refining Plant
Brand: Beiside
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Project Image 2
Name: Vegetable Oil Refining Plant
Brand: Beiside
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

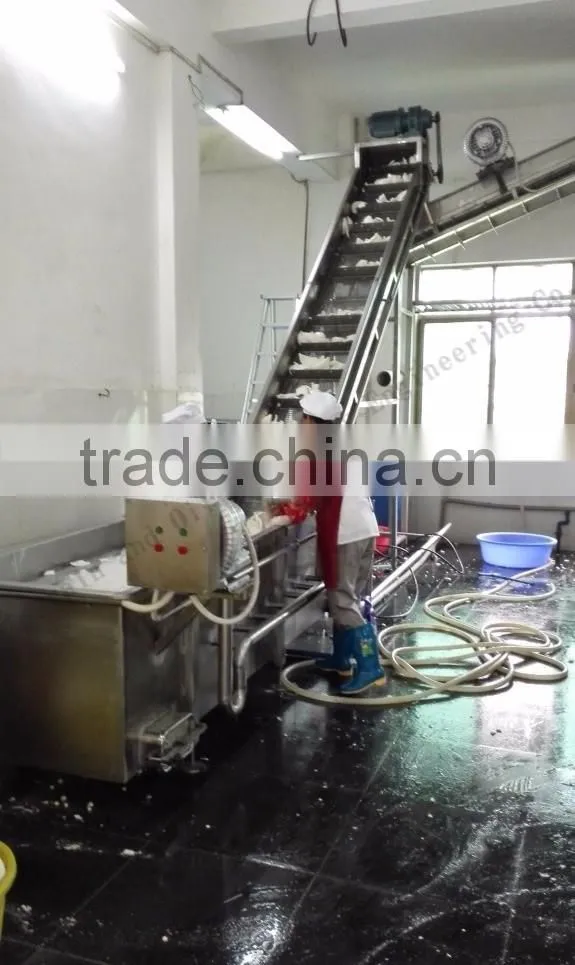

Project Image 3
Name: Coconut Meat Washing Plant
Brand: Beiside
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

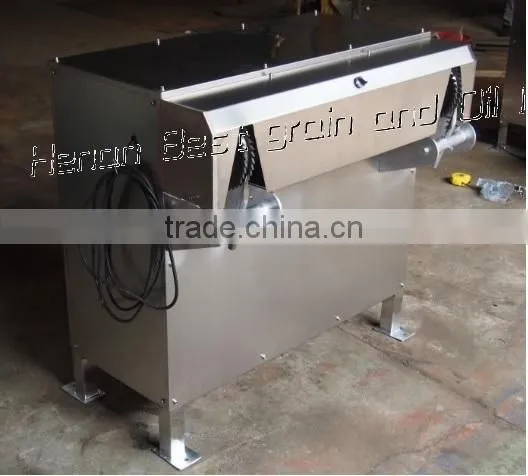

Project Image 4
Name: Dehulling Machine
Brand: Beiside
Original:China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
