Rice Bran Oil Making Machine With Good Price
US$ 4,990 - 96,800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Rice Bran Oil
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/ Tianjin / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sesame Oil Cold Press MachineUS$ 2,990 - 13,800MOQ: 1 Unit -
Automatic 220v Palm Kernel Oil Expeller Machine for MalaysiaUS$ 15,000 - 50,000MOQ: 1 Set
-
Small Coconut Oil Distillation Purifier Refinery MachineUS$ 4,990 - 96,800MOQ: 1 Unit
-
Palm Oil Deodorizing Machinery for Cooking Oil Processing PlantUS$ 15,000 - 50,000MOQ: 1 Set
-
20 TPD Spiral Ground Nut Oil Press Machine for PeanutsUS$ 2,990 - 13,800MOQ: 1 Unit
Condition
New
Usage
Other, Rice Bran Oil
Type
Other, Cold & Hot Pressing Machine
Automatic Grade
Automatic
Production Capacity
98%
Place of Origin
Henan, China
Brand Name
Beiside
Model Number
100TPD-Rice Bran Oil
Voltage
220V/380V
Power(W)
15.5kw
Dimension(L*W*H)
900*850*1550mm
Weight
11760kg
Certification
CE ,ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Rice Bran Oil Making Machine
Rice Bran Oil Extracting Plant, rice bran oil processing machine, China manufacturer Rice Oil Press machine,rice bran oil extraction machine ,rice bran oil machine price
Rice Bran Oil Making Machine
First. Why choose Henan Best Grain and Oil Machinery Engineering Co.,Ltd. ?
1.> Our company has been set up since 1984, It has been awarded the "The quality-star enterprise of China", we have more than 30-years history in the manufacturing of grain and oil machinery.
2.> Our factory is also a group enterprise integrating scientific research, manufacturing, sales as on
3.> We have cooperated with Research Institute of Machine Design Company of Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
4.> We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.
5.> We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries
Second. What can we supply to our customers?
1.> from 500Kg per Hour to 500TPD Rice Bran Oil Production and Refinery equipment manufacture,installation and Turnkey project;
2.> Equipment spare part supply;
3.> Project design and technology support.
1.> Our company has been set up since 1984, It has been awarded the "The quality-star enterprise of China", we have more than 30-years history in the manufacturing of grain and oil machinery.
2.> Our factory is also a group enterprise integrating scientific research, manufacturing, sales as on
3.> We have cooperated with Research Institute of Machine Design Company of Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
4.> We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.
5.> We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries
Second. What can we supply to our customers?
1.> from 500Kg per Hour to 500TPD Rice Bran Oil Production and Refinery equipment manufacture,installation and Turnkey project;
2.> Equipment spare part supply;
3.> Project design and technology support.
Process Description of Rice bran oil cold press machine:
The purpose of preparation is to extract a portion of oil by mechanical pressing while providing pressing cakes for extraction plant. It is a succession of several of the following processes: Bran Cleaning & Weighing, Cracking, Softening, Puffing,Flaking, Pressing, Oil Residue Extraction,Filling and Packing.
Description of Process of Rice Bran Oil Making Machine:
1. Cleaning & Weighing Section
Rice Bran from daily bin is treated by magnetic separator, weighing scale and screener with dedusting aspiration network to remove impurities.
2. Cracking Section
The purpose of cracking is to crack Rice Bran into small particles previous to softening and flaking, in order to improve the quality and capacity of the flaker.
3. Softening and Puffing Section
Horizontal drum softener is designed to adjust temperature and moisture of Rice Bran previous to flaking, improving oil yield greatly.
4. Flaking Section
The purpose of flaking is to turn the softened rice bran into thin flakes (from 0.3 to 0.35mm) for the subsequent oil extraction through mechanical pressing. In addition, flakes thickness can be adjusted through roll pressure adjustment device.
5. Pressing Section
Rice Bran is a kind of high oil-containing oilseed. Generally it is necessary to extract a portion of oil by mechanical pressing previous to subsequent process. Expeller with auxiliary cooker ensures material reach proper temperature and moisture. Pressing cakes containing residual oil from 14% to 18% is then treated by solvent extraction while crude oil is to be filtered.
6. Oil Residue Extraction Section
Due to high content of residue in crude oil, it is necessary to separate oil residue by oil drag conveyor firstly, crude oil then enters to settling tank for further separation. Collected residue is returned to pressing section while crude oil from settling tank is pumped to frame filter or leaf filter for further removing impurities.
7. Cooking Section,Filling and Packing
Cooling drag conveyor is designed to cool down pre-pressing cakes with high efficiency, then cakes is conveyed to extraction plant.
8.Related Keywords :
Rice Bran Pressing turnkey project China equipment manufacturer factory engineering supplier
Rice Bran from daily bin is treated by magnetic separator, weighing scale and screener with dedusting aspiration network to remove impurities.
2. Cracking Section
The purpose of cracking is to crack Rice Bran into small particles previous to softening and flaking, in order to improve the quality and capacity of the flaker.
3. Softening and Puffing Section
Horizontal drum softener is designed to adjust temperature and moisture of Rice Bran previous to flaking, improving oil yield greatly.
4. Flaking Section
The purpose of flaking is to turn the softened rice bran into thin flakes (from 0.3 to 0.35mm) for the subsequent oil extraction through mechanical pressing. In addition, flakes thickness can be adjusted through roll pressure adjustment device.
5. Pressing Section
Rice Bran is a kind of high oil-containing oilseed. Generally it is necessary to extract a portion of oil by mechanical pressing previous to subsequent process. Expeller with auxiliary cooker ensures material reach proper temperature and moisture. Pressing cakes containing residual oil from 14% to 18% is then treated by solvent extraction while crude oil is to be filtered.
6. Oil Residue Extraction Section
Due to high content of residue in crude oil, it is necessary to separate oil residue by oil drag conveyor firstly, crude oil then enters to settling tank for further separation. Collected residue is returned to pressing section while crude oil from settling tank is pumped to frame filter or leaf filter for further removing impurities.
7. Cooking Section,Filling and Packing
Cooling drag conveyor is designed to cool down pre-pressing cakes with high efficiency, then cakes is conveyed to extraction plant.
8.Related Keywords :
Rice Bran Pressing turnkey project China equipment manufacturer factory engineering supplier
Process Flow of Rice Bran Oil Making Machine
Ricebran→select→cooking(add 10% chaff)→pressing→crude oil→filtering→refining→finished oil
Certifications
Detailed Images

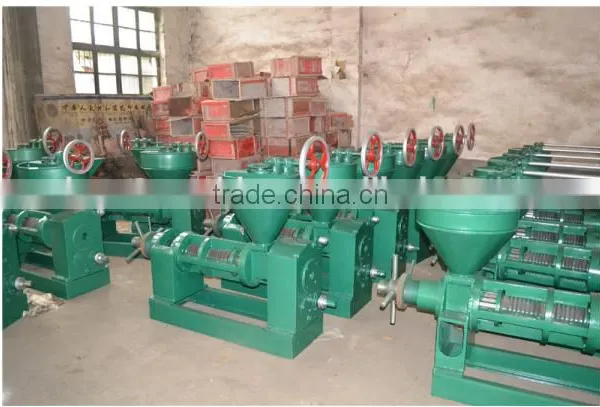

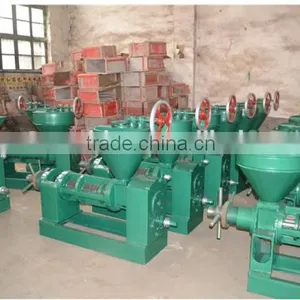

Machine Parts

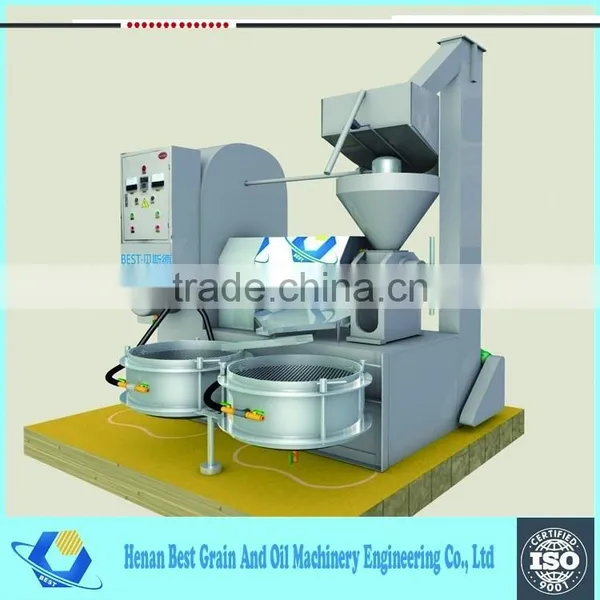

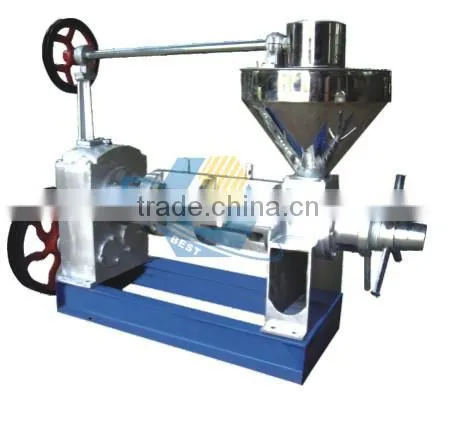

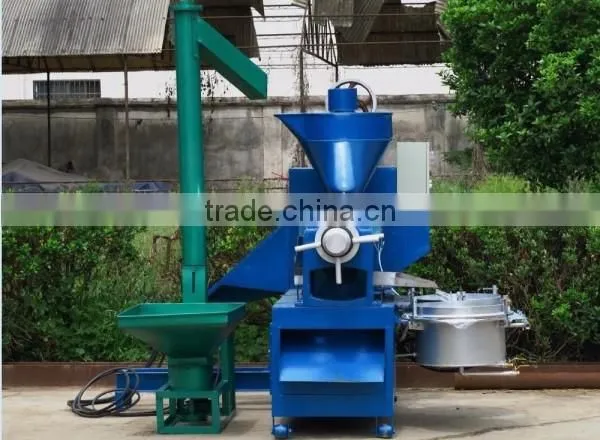

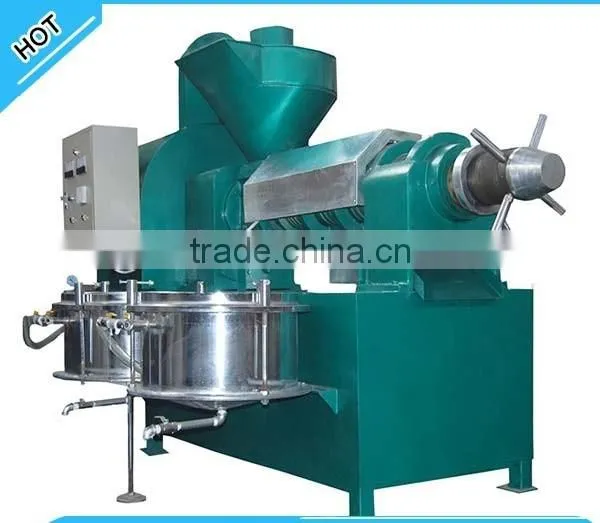

Name: Oil Pressing Machine
Brand: Beiside
Original: China
A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
Main Features
Name: Solvant Extraction Plant
Brand: Beiside
Original: China
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.
Main Features
Name:Oil Refinery Plant
Brand: Beiside
Original: China
The choke gear can regulate the resistance of the cake to the movement of the screw,and the pressure exercised on the cake.To maintain this pressure essential for expelling the oil,a positive feed system is required.
The feed system is frequently a worm conveyor,either vertical or horizontal,that presses the oil-seed into the screw-press at the feed-end.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
