Soybean meal processing machinery for oil solvent extraction plant
- 1000 Unit / Units per Month
- Qingdao/ Tianjin / Shanghai
- T/T Credit Card
-
used for stone pe-250x400 quartz small jaw crushers
-
low comsuption mini rock diesel engine jaw crusher
-
china manufacturer provide used jaw crusher price
-
high efficiency pe 400 x 600 old mini jaw crusher for sale
-
manufacturer provide toggle platepe 150x250 jaw crusher machine
-
pe 400x600 mobile jaw crusher price with spare parts
Product Details
| Condition: | New | Usage: | Soybean Oil | Type: | Other, Cold & Hot Pressing Machine |
| Automatic Grade: | Automatic | Production Capacity: | 98% | Place of Origin: | Henan, China |
| Brand Name: | Beiside | Model Number: | oil solvent extraction machine | Voltage: | 220V/380V |
| Power(W): | 11kw | Dimension(L*W*H): | 1910*610*765mm | Weight: | 11400kg |
| Certification: | CE, ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Soybean meal processing machinery for oil solvent extraction plant

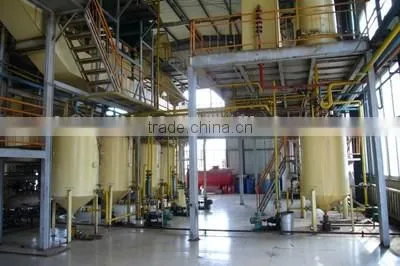

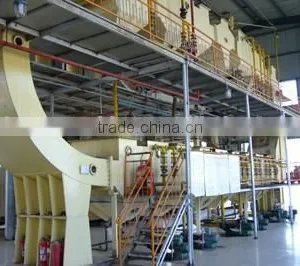

Introduction of Soybean meal processing machinery for oil solvent extraction plant
(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.

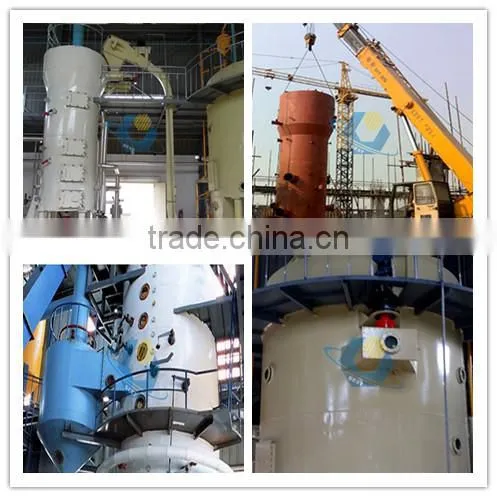

(3) Main parts: The extraction series includes rotary extractor, toaster, 1st evaporator,
2nd evaporator, stripping tower, condenser, etc.

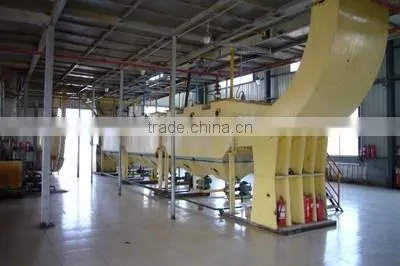

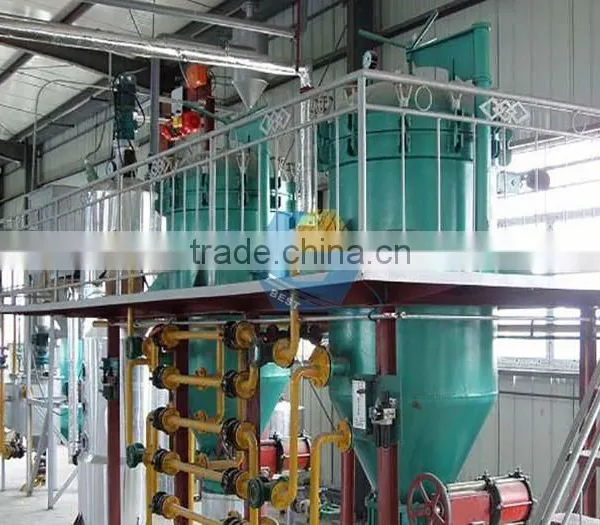

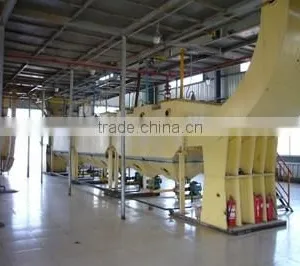

Main parts of Soybean meal processing machinery for oil solvent extraction plant
(1) Solvent pumps: continuously spray solvent to the rotary-type extractor;
(2) Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be
dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
(3) DTDC: usd to separate the solvent from the wet meal.
(4) Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10%
saline water to it. The phospholipid and impurities in the miscella will react with the saline wter,
at last the reactant precipitate, reaching the goal of purifying.
(5) Miscella tank 2nd: the purified miscella will be pumped into it.
(6) Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be
discharged to condenser for recycling.
(7) Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
Process Flow Chart of Soybean meal processing machinery for oil solvent extraction plant
Technical parameters of Soybean meal processing machinery for oil solvent extraction plant
Residual oil in meal ≤ 1%
Solvent consumption ≤ 2Kg/T (No.6 solvent oil)Crude oil moisture and volatile matter ≤ 0.30%
Power consumption ≤ 15KWh/T
Steam consumption ≤ 280KG/T (0.8MPa)
Finished meal moisture ≤ 13% (adjustable)
Residual solvent in finished meal ≤ 300PPM (qualified detonated experiment)
Extraction process of Soybean meal processing machinery for oil solvent extraction plant
2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
3. DTDC: usd to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , then add saline
water to it.
The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7. Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

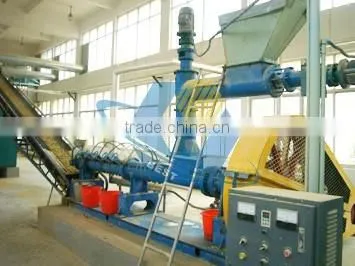

Machine Parts
Name: Worm assembly and barrel bars
Brand: Beiside
Original: China
A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
Main Features

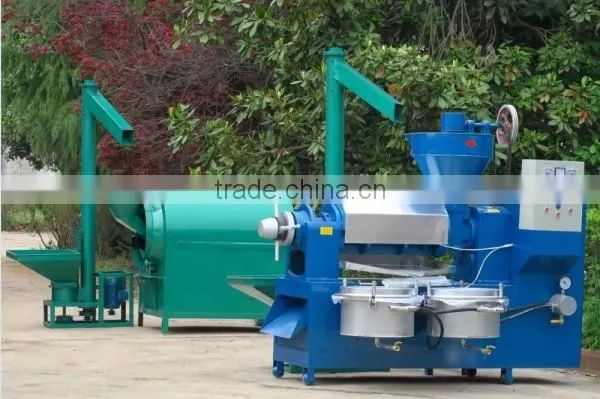

Name: Screw Oil Presser
Brand: Beiside
Original: China
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.

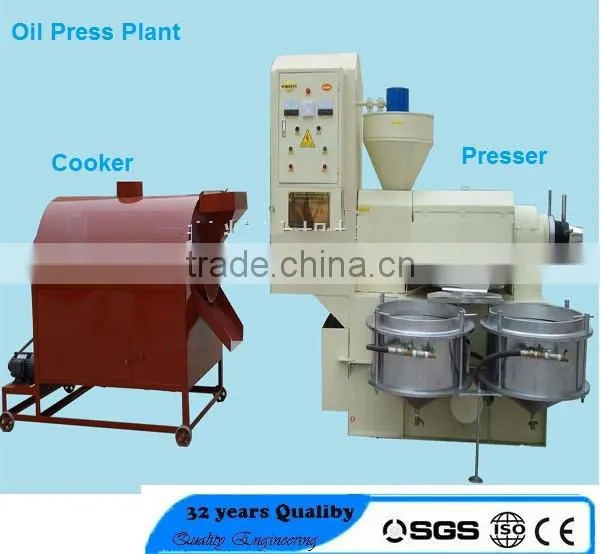

Machine Parts

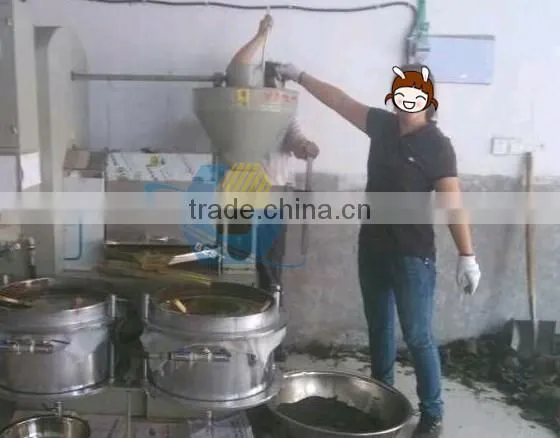

Name: Screw Oil Presser ,cooker
Brand: Beiside
Original: China
The design of the press must allow for this change of volume,and the friction betweent the cake and the cage must be maintained high enough to prevent the cake from rotating.The cake is expelled from the press through a choke gear,an adjustable cone forming an annular opening of variable size.
Main Features
Name: Scew Oil Presser
Brand: Beiside
Original: China
The choke gear can regulate the resistance of the cake to the movement of the screw,and the pressure exercised on the cake.To maintain this pressure essential for expelling the oil,a positive feed system is required.
The feed system is frequently a worm conveyor,either vertical or horizontal,that presses the oil-seed into the screw-press at the feed-end.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
