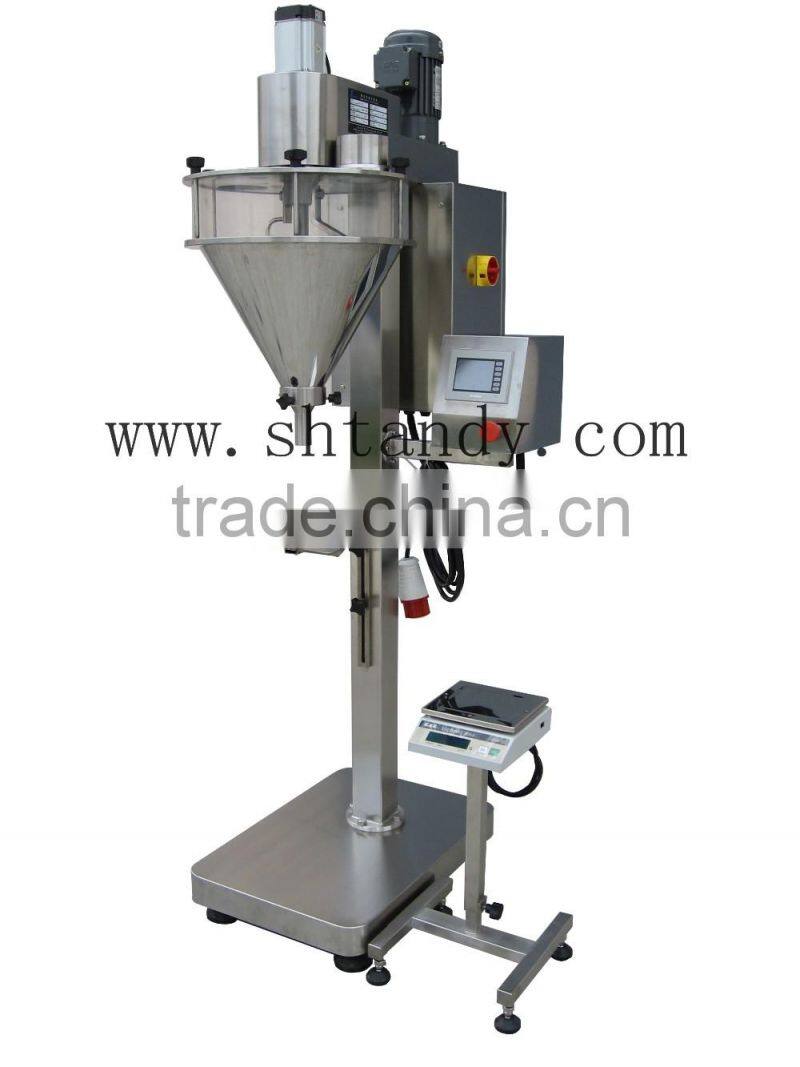

AUTOMATIC POWDER PACKING MACHINE
Descriptive abstract
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Main features
Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Model | DCS-1A-22 | DCS-1B-321 | DCS-1B-423 |
Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen |
Hopper | Quick disconnecting hopper 25L | Quick disconnecting hopper 50L | Split hopper 50L |
Packing Weight | 1 - 500g | 10 - 5000g | 10 - 5000g |
Packing Weight | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% | ≤ 100g,≤±2%; 100 – 500g,≤±1%; ≥500g,≤±0.5% | ≤ 100g, ≤±2%; 100-500g, ≤±1%; ≥500g, ≤±0.5% |
Filling speed | 40 – 120 times per min | 40 – 120 times per min | 40 – 120 times per min |
Power supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz |
Total Power | 0.93 Kw | 1.4Kw | 1.4Kw |
Total Weight | 130kg | 260kg | 280kg |
Overall Dimensions | 800×790×1900mm | 1140×970×2200mm | 1140×970×2200mm |
WE INSIST STRIVING,NEVER GIVE UP,
JUST FOR BE BETTER ENCOUNTER WITH YOU!
Pre-service:
1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory.
4.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
1 .advisory services: users encounter any problems in the use process, can call the company for technical support
2.warranty: warranty period of the product, if quality problems, the company responsible for the warranty service.
The user from the date of purchase, under normal circumstances if the product quality problems:
1. complete within one year free warranty,three years repair finite maintenance.
2. component damage free warranty for 1 years.
