milk powder mixing machine
Features of save water kitchen sink water mixer:

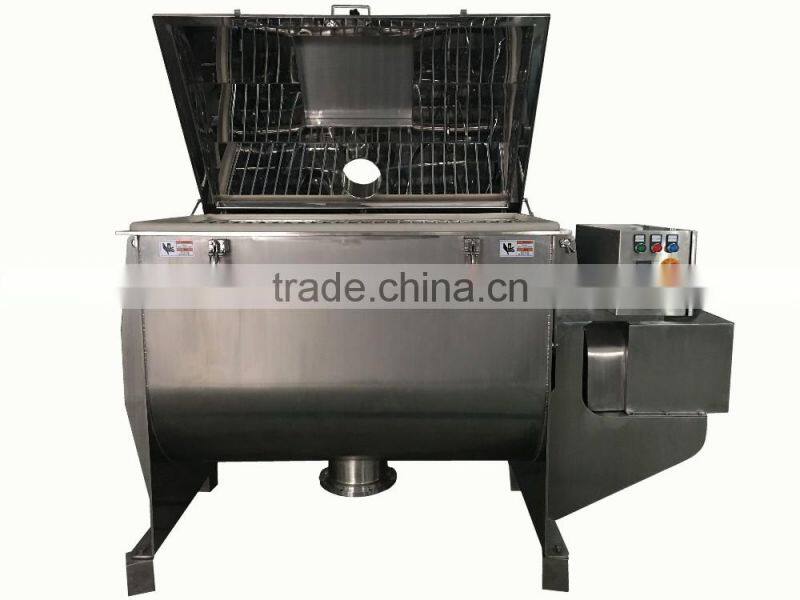

TDL horizontal ribbon mixer is used for application to, power and power; granule and granule; powder and a few liquid mixing; it is widely used in food, chemical industry, pharmaceutics, feedstuff, plastic, building material and so on; Customizing according to client’s specific requirement, it can be from 304,316L,321 and carbon steel etc. it can be according to GMP standard, too.
1. wide application for mixing material, for paste mixing even; keep granule mixing intact.
2. material proportion different 1:1000 ~10000 perfectly mixing;
3. Customizing according to client’s requirement such as hotting Cooling, pression, vacuum ect.
Reference paramete of save water kitchen sink water mixer:
| Type | Volume(L) | Coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight |
| TDL-200 | 200 | 0.4-0.6 | 4 | 53 | 2020X630X1700 | 300 |
| TDL-300 | 300 | 0.4-0.6 | 5.5 | 53 | 2300X700X1780 | 420 |
| TDL-500 | 500 | 0.4-0.6 | 7.5 | 45 | 2600X840X1850 | 600 |
| TDL-1000 | 1000 | 0.4-0.6 | 11 | 45 | 2930X990X2000 | 880 |
| TDL-1500 | 1500 | 0.4-0.6 | 15 | 39 | 3280X1070X2150 | 1260 |
| TDL-2000 | 2000 | 0.4-0.6 | 18.5 | 39 | 3620X1180X2320 | 1750 |
| If you need more technical parameters, please contact us. | ||||||
Principle of working:
TDL horizontal ribbon mixer consists of a mixing storage, helix blades and transmission parts. There is two tiers or three tiers of ribbon blender axis in the mixing container. The principle of working as below:
1.The outer helix will move the material from its two sides to the central part,
2. The inner helix will transfer the material to the two sides, performing convection mixing.
3. There is discharge exit on the centre of the u container bottom of mixer; The outer helix match with main helix make the materials to center exit discharging; it make u container no leftover in u container.
Discharge Mode:
Flap valve:
Advantage:can avoid discharge port mixing uneven etc problems.
Disadvantage: leakproofness is inferior to butterfly bamper.
butterfly bamper:
Advantage: leakproofness well
Disadvantage:discharge port mixing uneven problem

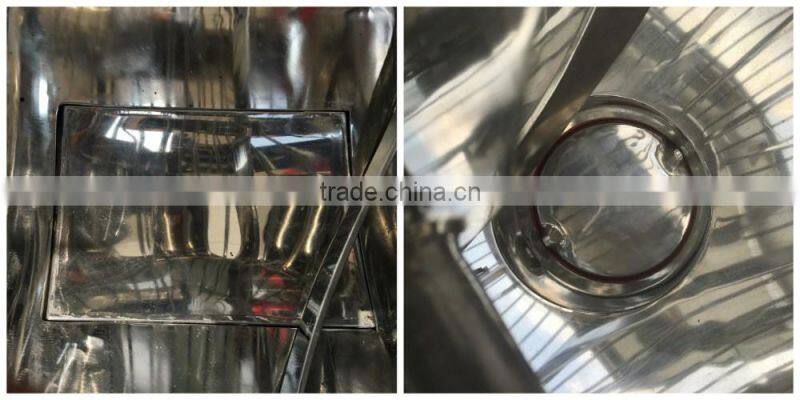

Ribbon mixer detail picture:

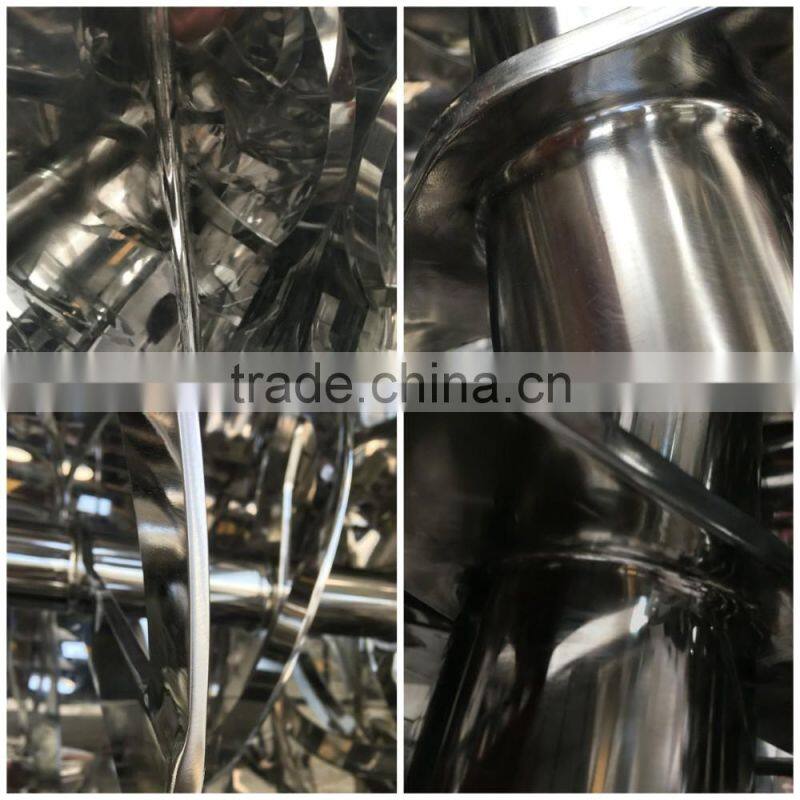

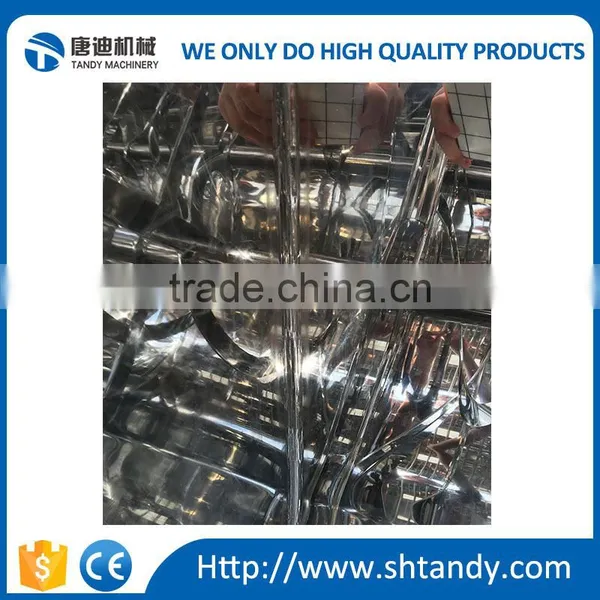

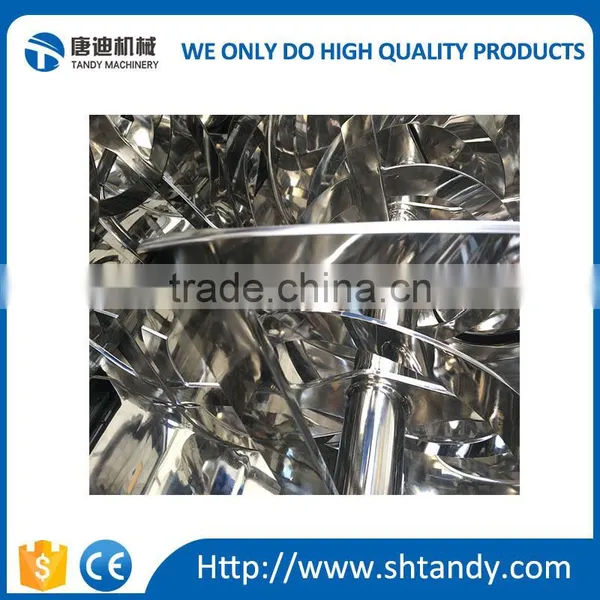

Inside of ribbon mixer is full mirrior polishing and spot welding
Principle of working:
TDL horizontal ribbon mixer consists of a mixing storage, helix blades and transmission parts. There is two tiers or three tiers of ribbon blender axis in the mixing container. The principle of working as below:
1.The outer helix will move the material from its two sides to the central part,
2. The inner helix will transfer the material to the two sides, performing convection mixing.
3. There is discharge exit on the centre of the u container bottom of mixer; The outer helix match with main helix make the materials to center exit discharging; it make u container no leftover in u container.
Application:

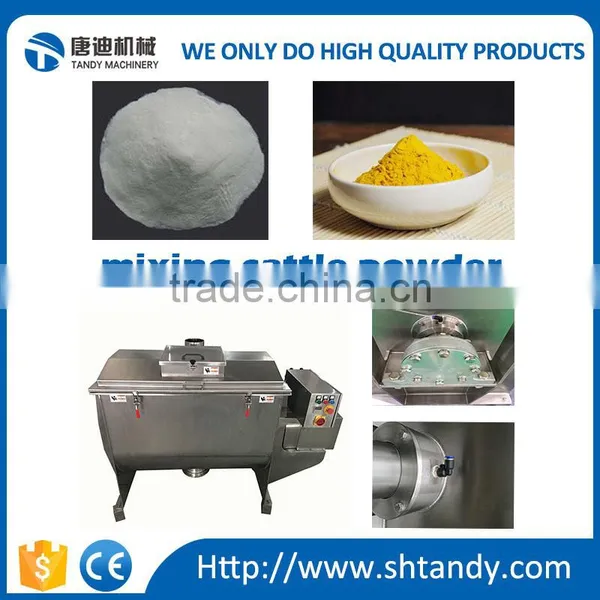

The ribbon mixer is widely apply in mixing powder and powder,geanule and granule and a bit liquid.it is used for food,chemical,pesticide,feeding stuff etc.
Different kinds of mixer:
our company is profession produce mixer including Ribbon mixer ,paddle mixer, V mixer ,HD series three dimensional mixer, plough blender ,vertical mixer..all of our company’s mixers can provide customization,if you have any different or special demand about mixer,please in any time to contact us ,we will try our best to give you a suitable scheme.
