The gas with powder goes into the dust collector through inlet hose under pressure, air expansion at this time, lower flow velocity will cause the large particles of powder separated from the gas with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to the filter’s outer wall with the air flowing direction and then clean by the vibration device. After purification, the gas goes out from the top outlet through the filter and filter cloth.

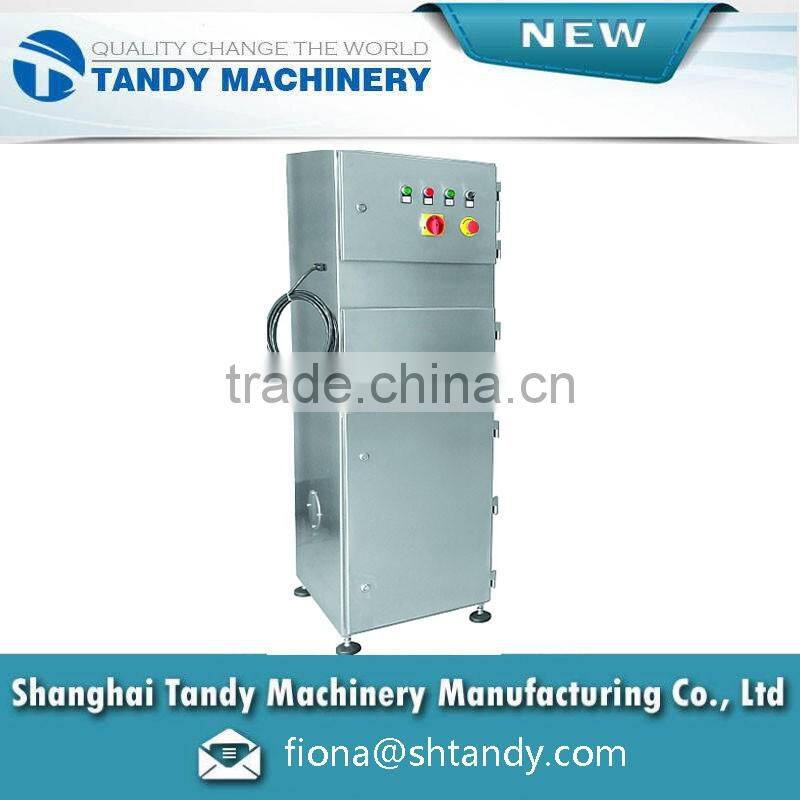

Pictures of industrial dust collector:
Main features of industrial dust collector:
1.Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
2.The single drum filter of folding micron grade can absorb more powders.
3. Special design of multi blade wind wheel with stronger suction ability.
4. One-key type vibration cleaning powders, be more efficient to remove the powders which attached the cylinder filter, clean dusts efficiently.
5. Adding remote controlling system, be convenient to distance controlling equipment.
6. Special insulation cotton reduce noises more efficiently.
Reference paramete of bag filter air conditioner:
| Model | Blowing rate(m3/h) | Pressure(pa) | Power(KW) | Equipment max noise(Db) | Dimension(mm) | Weight(KG) |
| TDCC-1.5A | 750-1050 | 940-690 | 1.62 | 60 | 680*600*1610 | 152 |
| TDCC-2.2A | 1350-1650 | 960-580 | 2.32 | 65 | 710*640*1740 | 190 |
| TDCC-3.0A | 1700-2400 | 1680-1100 | 3.12 | 70 | 770*670*1810 | 235 |
| TDCC-4.0A | 2650-3500 | 1680-1100 | 4.12 | 70 | 830*780*1880 | 290 |
| TDCC-5.5A | 3800-4500 | 1680-1100 | 5.62 | 75 | 910*760*1970 | 350 |
| TDLD-7.5A | 4800-7000 | 1680-1100 | 7.62 | 75 | 960*800*2020 | 420 |
| If you need more technical parameters, please contact us. | ||||||
Additional features of industrial dust collector:
1, Elegant & splendid
Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
2, High efficiency
The singlde drum filter of folding micron grade can absort more powders
3, Strong strength
Secial design of multi blade wind wheel with more stronger suction abiblity.
4, Convenient cleaning
One-key type vibraion cleaning powders, be more efficient to romove the powders which attached the cylindar filter, clean dusts efficiently.
5, Hommization
Adding romote controlling system, be convenient to distance controlling equipments.
6, Lower noises
Special insulation cotton reduce noises more efficiently.
It is especially suitable for pharmaceutical, mik powder filling production line and other powder processing.
