Home > Products > Conical mixer > Latest fashion hot sale promotion mixer for high concentration formula
Latest fashion hot sale promotion mixer for high concentration formula
- 100 Unit / Units per Month
- Shanghai Port
Product Details
Condition: | New | Mixer Type: | Agitator | Product Type: | Other, Food |
Application: | Powder | Additional Capabilities: | Granulating | Place of Origin: | Shanghai, China |
Brand Name: | Tandy | Model Number: | TDZ-300L | Max. Loading Capacity: | 300L |
Voltage: | Customized | Power(W): | 3kw | Dimension(L*W*H): | Custom Made |
Certification: | CE Certificate | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Latest fashion hot sale promotion mixer for high concentration formula
Features of mixer for high concentration formula:
TDZ double auger conical mixer is widely used on a variety of application in the industry such as food, chemical industry, pesticide, dyestuff, battery material, rare earth and other powder mixing ect. The application material can be: 304, 316L,321, carbon steel ect. The even mixing can be performed under 1 quarter to 1 hour. The features of this double screw conical mixer including:
1. for high standard mixing after full discharge without leftover.
2. softly mixing without damage to the fragile material;
3. effect of mixing under low energy and it is more adaptable to the reaction of chemical and physical

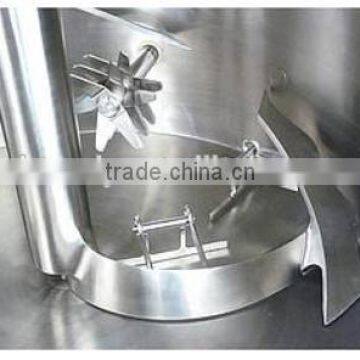

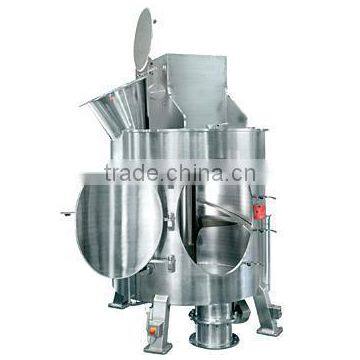

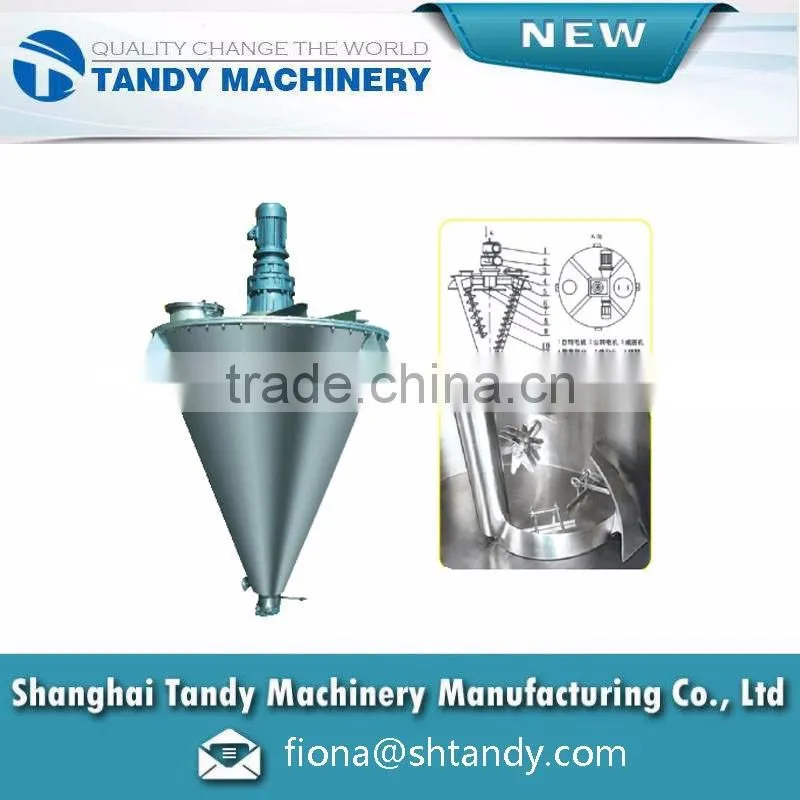

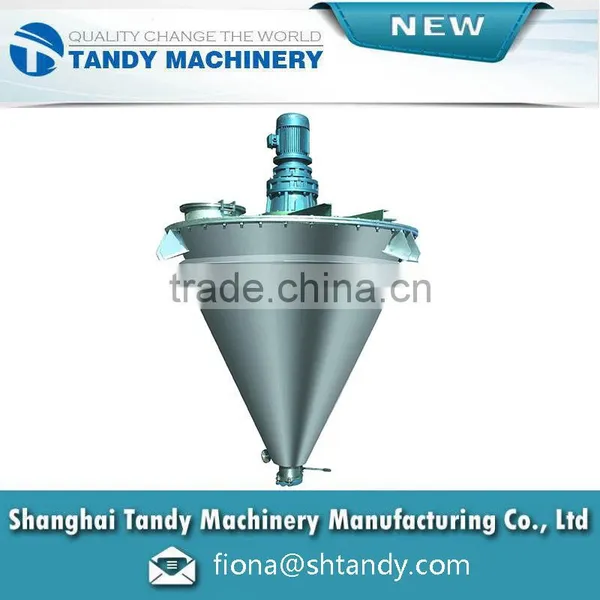

Picture of mixer for high concentration formula:
Principle of working:
TDZ double auger conical mixer rotates around its axes according to right of two internal asymmetric spirals, which install in the cantilever; mean while, the rotational force from the cantilever drives two spiral making revolution around conical chamber axle wire.
Double auger conical mixer come into being 4 direction forces:
1. 2 inner asymmetric spirals upgrade the materials through rotation.
2. Tumbler with low-speed rotation makes materials circulate motion.
3. Rotation and revolution of spiral make materials absorbed while diffuse to circle direction;
4. 2 flows materials upward, then go down to the center, which come into being a downward material flow; this way can full the bottom gap and form a convective circulation.
Reference paramete of mixer for high concentration formula:
Type | Volume(L) | Coefficient | Power(KW) | Size(mm) | Weight(KG) |
TDZ-300 | 300 | 0.4-0.6 | 3 | Φ950*H2060 | 500 |
TDZ-500 | 500 | 0.4-0.6 | 3 | Φ1150*H2350 | 600 |
TDZ-1000 | 1000 | 0.4-0.6 | 4 | Φ1580*H2840 | 1200 |
TDZ-2000 | 2000 | 0.4-0.6 | 5.5 | Φ1950*H3500 | 1500 |
TDZ-3000 | 3000 | 0.4-0.6 | 7.5 | Φ2170*H3760 | 2300 |
If you need more technical parameters, please contact us. |
Our factory:
Our Exhibition:
FAQ:
1. What’s your main product?
We are professional in mixing machine, conveying system, check weigher, packing machine and industrial dust collector etc., and also produce other machines used in the production line.
2. Are you manufacturer or trader?
We are manufacturer, we have own factory in Shanghai. Many foreign and domestic customers visit our factory every year. Welcome to visit our factory warmly.
3. When will you deliver the products?
The products will be shipped in 30 days after payment. And normally terms of payment we support is by T/T.
4. What about the packing for product?
Our packing is standard export package, seaworthy plywood cartons outside, and antirust plastic film inside.
5. How about your after-sales service?
Our products normal warranty is 12 months, and engineers are available to service machinery overseas.
6. Do you accept customers customized?
We accept kinds of customized of our products for customers.
