Commercial bbq Making Machine, Charcoal Extruding Machine
Introduction of the Hard Wood Sawdust Briquette Charcoal
Charcoal Extruding Machine can process all kinds of biomass wastes, such as bamboo(water content < 12% ), wood, shells, rice straw, wheat straw, and other granular (5 mm or less in length, diameter 3 mm), in the case of without any binder, after high temperature and high pressure process, extrusion into a rod-shaped pay solid rod with center hole.
The Charcoal Extruding Machine characteristics: fast good preparation (20 seconds out of the 60 cm), extrusion dense, screw propeller adopts precision casting, special wear-resisting material life for more than ten times higher than that of traditional thrusters; Forming the sleeve adopts special formula alloy precision casting, life can be up to a year; This cutting-edge technology not only makes the cost is greatly reduced, but also saves manpower.
Structure of the Charcoal Extruding Machine
1 hopper
2 heat insulation cover
3 heating circle
4 propellers
5 heating tube
6 taper sleeve
7 stents inner sleeve
8 stents
Application of Charcoal Extruding Machine
1. Professional Charcoal Extruding Machine are widely used for family to get warm.
2. These charcoals are with large demands for barbecue international markets
3. It can display the coal and heavy oil to burn steam boiler in industry.
4. The charcoals can be chemical raw material to deep process activated carbon, carborundum, crystal silicon and so on.
Material application:
1. The ideal size was identified to be 3-5mm wood sawdust
2. Moisture Ideal level was 8%-12 %.
3.Wood sawdust ,wood waste, rice husk, leaves, coconut shell, peanut shell and so on.
Advantages of the Charcoal Extruding Machine
1. Our Charcoal Extruding Machine absorbs the advanced technique in home and abroad
2. Innovative design and reliable quality
3. Stable and continuous working
4. High strength and toughness
5. Temperature control, durability, adaptability
6. High production capacity.
Process of the Charcoal Extruding Machine

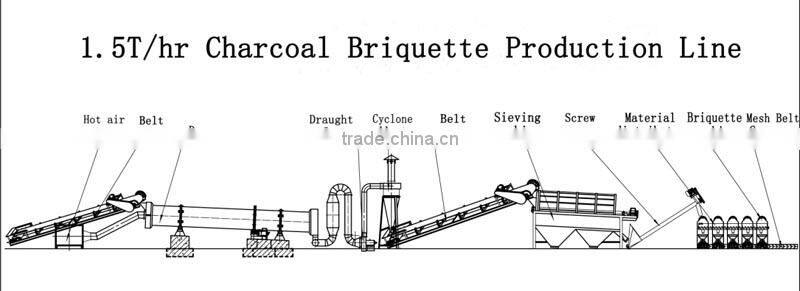

Crushing---drying---briquetting---carbonizing---finished products
Technical parameters of the Charcoal Extruding Machine
Model |
Power (kw) |
Capacity (kg/h) |
Packaging size (m) |
Gross weight (kg) |
Net weight (kg) |
FW-ZBJ50 |
15 |
160-200 |
1.7*0.66*1.5 |
600 |
500 |
FW-ZBJ50B |
18.5 |
250-300 |
1.9*0.8*1.8 |
750 |
680 |
ALC-ZBJ80 |
22 |
300-400 |
2.1*0.8*1.8 |
960 |
900 |
Photos of the Charcoal Extruding Machine
( Dimeter:50mm;60mm)
( Dimeter:80mm)
Finished Briquette from the Charcoal Extruding Machine
(Can be different shapes)
Charcoal (After carbonization)
Charcoal Extruding Machine Parts
Pre-sale service
Help you to choose suitable machines, design Charcoal Extruding Machine according to your special requirements, answer your questions timely and effectively.
On-purchase service
We will accompany with you to complete the acceptance of the equipment, assist to draft the construction scheme and detailed process
After-sales service
Company will sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators, if you have any questions for the Diesel Engine Briquette Machine just let me know feel free, by email, phone, whatsapp, wechat etc, we will reply you in shortest time
Packaging and transportation:
a, For a single machine, it will be packaged by Wooden case as exported standard, if a whole production line, we suggest packaging by container, which can ensure the safety of the machines, and eady to operate!
b, Since the machine is large and heavy, we suggest transport By Sea.
Fanway Charcoal Extruding Machine Factory:
ZHENGZHOU FANWAY MACHINERY MANUFACTURING CO.,LTD is the qualified pellet machinery manufacturer which has devoted in developing, designing and manufacturing top quality pellet making equipment, Charcoal Extruding Machine, Pellet Mill and pellet plant design; skilled labor assembly machines: feed pellet mill, wood pellet mill, fish feed pellet machine, hammer mill, feed mixing machine, sawdust drying machine, fish feed pellets cooling machine, pellets packaging machine, etc.
Furthermore our experienced and professional pellet plant project consultants can offer you turnkey wood pellet plant solution, animal feed pellet plant solution, fish feed pellet plant solution as well as pellets production solution.
FAQ
Q: Raw material for the Charcoal Extruding Machine ?
A: All kinds of biomass waste, such as crop straw, wood sawdust, coconut shell , rice hull, bamboo sawdust, peanut shell, sunflowers shell, cotton stalks, sesame straw, furfural dregs, corn cob and shrubs broken branches, etc
Q: Requirements about the raw materal?
A: Ideal size should be 1-5mm, ideal moisture should be 8%-12%
Q: Conversion rate between the material and charcoal?
A: Per Kilogram sawdust can make 0.4kg charcoal,
Q: what kind capacity do you have?
A: 150-200kg/h; 250-300kg/h; 300-400kg/h; 1Ton/h etc
Q: The diameter of the briquette can be?
A: 50mm; 60mm; 70mm; 80mm
Q: Shape of the briquette can be?
A: Hexagon; Octagon; Quincunx; Square; Triangle; Square
