Low cost poultry equipment used in chicken farm for making chicken food
- 50 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | FANWAY |
Model Number: | FY-DGP90 | Type: | Feed Pellet Machine | Voltage: | 380V,50HZ,3phase |
Power(W): | 32KW | Dimension(L*W*H): | 2100*1450*1350mm | Weight: | 950 kg |
Certification: | CE ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Low cost poultry equipment used in chicken farm for making chicken food
Application
This poultry equipment is used to produce variety materials into high-grade aquatic feed for fish, catfish, tilapia, shrimp, crab, cat, dog, fox, frog, pet bird, and other small animals,etc. Floating time of the feed pellets for fish can be adjusted by the puffing degree adjustment.
Working principle
After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.
Raw material
The raw material can be corn meal, wheat bran, rice bran, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, meat meal, etc.
- This poultry equipment can produce both floating and sinking feed pellets for fish. The floating feed pellets can float on the water surface at least for 12 hours, better to be digested, without feed waste and water pollution.
- The floating time can be controlled by the puffing degree adjustment
- Fish feed pellets diameter is 1-20mm, can be customized.
- The final feed pellets have unique shape and good taste, high nutrition and smooth textures.
Features
- Main parts, like sleeve and screw, of this poultry equipment are made of alloy material, wearable, and have long service life.
- Novel design, high production capacity and stably excellent performance.
- The high pressure punching device ensures the capacity and the quality of feed pellets, and the electric heating device improves the puffing rate.
- The feeding speed can be adjusted, to make it easier to operate and maintain even feeding performance.
- High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
also makes the pellets easily to digest.
- The cutting device can be adjusted to make pellets of different length.
- The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

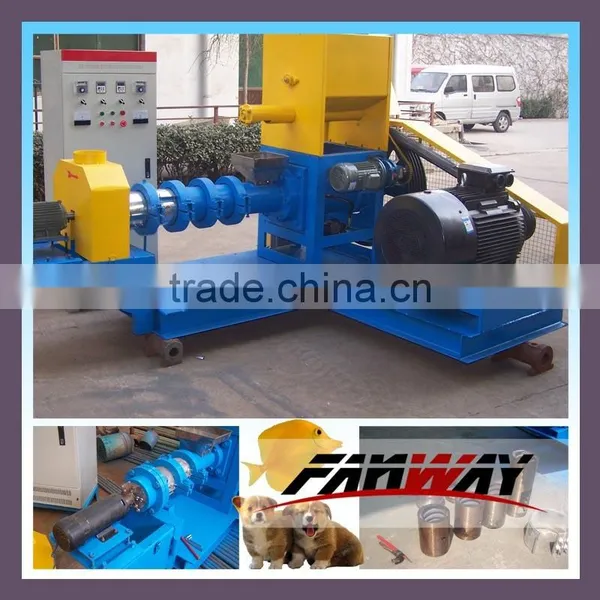

Model images
Parameter
Model | Capacity(t/h) | Motor power(kw) | Feed power(kw) | Screw Dia(mm) | Cutting power(kw) |
FY-DGP60 | 0.12-0.15 | 15 | 0.4 | 60 | 0.4 |
FY-DGP70 | 0.18-0.25 | 18.5 | 0.4 | 70 | 0.4 |
FY-DGP80 | 0.3-0.35 | 22/27 | 0.4 | 80 | 0.6 |
FY-DGP90 | 0.4-0.45 | 30/37 | 1.1 | 90 | 0.6 |
FY-DGP120 | 0.5-0.7 | 55 | 1.1 | 120 | 1.5 |
FY-DGP135 | 0.8-1.0 | 75 | 1.1 | 133 | 2.2 |
FY-DGP160 | 1.2-1.5 | 90 | 1.5 | 155 | 2.2 |
FY-DGP200 | 1.8-2.0 | 132 | 1.5 | 195 | 3.0 |
Spare parts
We will send 3 sets moulds, 1 whole set of wearing spare parts and service tool for free.
1. This poultry equipment will be packaged by export wooden case.
2. We will arrange the delivery within 15-20 working days after the receipt of the payment.
The whole production line |
