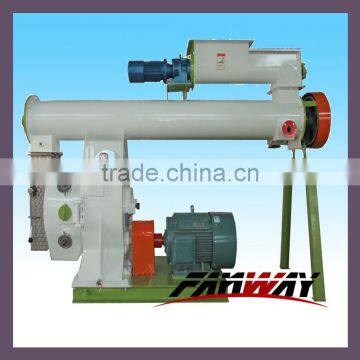

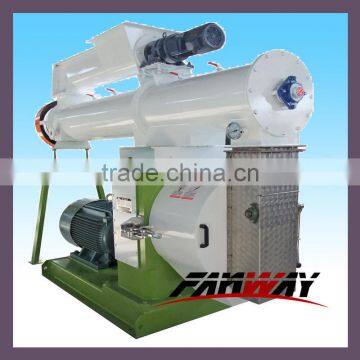

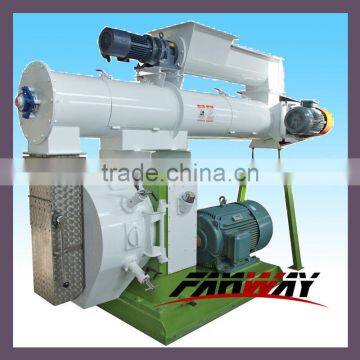

CE approved ring die animal feed pellet machine
1.Introduction of ring die animal feed pellet machine
Different from flat die pellet mill mainly used for making pellets for their own animals, ring die feed pellet machine for poultry is more efficient and suitable for industrial poultry feed pellets production-large farms or feed pellets factory. Equipped with conditioner, this animal feed pellet machine can make the material fully mixed and ripen, thus the finished feed pellets have more smooth surface and better quality. Featured by high throughput and low consumption, ring die poultry feed pelletizer has enjoyed great popularity.
2.Features of animal feed pellet machine
1. Built-in steam collection conditioner can mix and cook materials fully and uniformly to meet special needs and ensure high quality of final poultry feed.
2. Driven by high precision gear transmission system which ensures high productivity (about 20% higher than belt transmission) and low energy consumption.
3. Adopt imported bearings & oil seals to get better transmission performance, stable operation and less noise.
4. Feeding device adopts frequency conversion speed regulating motor to guarantee the particles quality.
5. Multiple aperture ring die for choice, excellent craft of ring die with long service life
6. The international advanced compensation type spring coupling device is of novel and compact structure, reliable and low failure rate.
7. Overload protection and electrical control system to ensure stable performance.
8. Tow or three jacket conditioners can be customized to upgrade to be aquatic feed pellet mill for making high grade feed pellets.
3.Application of animal feed pellet machine
animal feed pellet machine is widely used in the granulation of corn, wheat, beans etc. The output pellets are used as animal and poultry feedstuff in livestock farm, poultry farm, feed processing industry and aquaculture. Now, based on the outstanding features of its high throughput, low consumption and mature technology, ring die feed pellet mill has become more and more popular and possess broad market share at home and aboard.
4.Working Principle of animal feed pellet machine
The material is put into the screw feeder of animal feed pellet machine which can be easily adjusted for the feeding speed and getting proper material flow. After this, the material goes into a conditioner where hot steam can provide favorable conditioning. Then, the material temperature is maintained about 64-85 °C and moisture between 14-16% before entering the pressing chamber. In the pressing chamber, materials will naturally be compressed into pellet form through the die holes under the high pressure of rollers.
5. Technical Parameters of animal feed pellet machine
6. Feed pellet making production line
