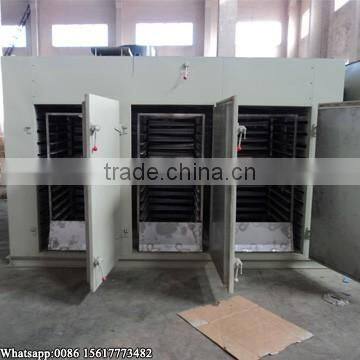

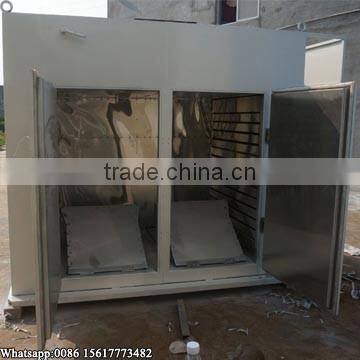

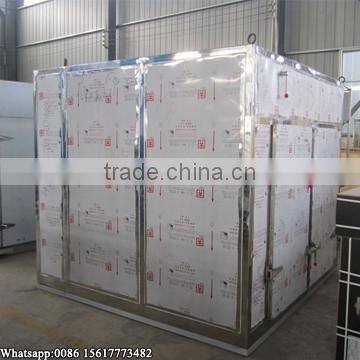

240 kg per batch cabinet hot air plantain chips drying machine with factory price
Brief introduction of plantain chips drying machine
Working principle: Hot air circulation inside the oven, and automatic temperature controlling system

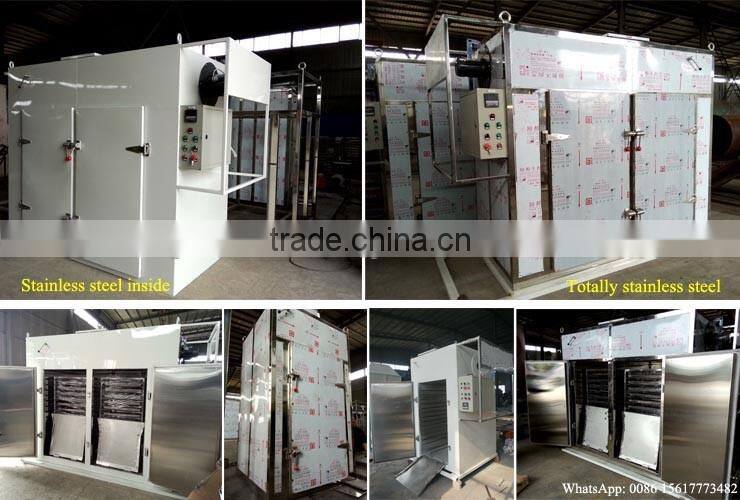

Body material: 1. Carbon steel outside and stainless steel inside;
2. Stainless steel both outside and inside;
3. All the drying trolleys and baking trays are made of stainless steel.
Type: Batch type
1. 60kg/batch
2. 120kg/batch
3. 240kg/batch
4. 360kg/batch
5. 480kg/batch.
Function: drying, dehydrating, dewatering, removing the surface water as well as the inside moisture.
Application of plantain chips drying machine
This machine can be used in many fields, such as food processing industry, fruit and vegetable processing industry, agricultural and sideline industry, seafood processing industry, medicinal industry,chemical industry, etc.
| Vegetable | Fruit |
Meat | Herb |
•Dried fruits: apple,lemon, berry, banana, kiwi, figs, pear, peach, pineapple, mango, jujube, plums, etc. |

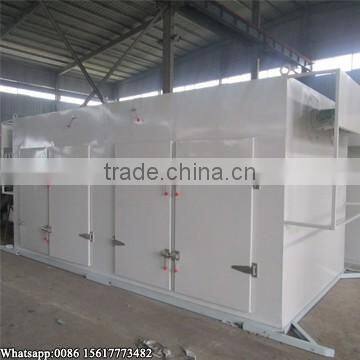

Different models of plantain chips drying machine
|
Model: CT-C-I Capacity: 120 kg/batch Fan power: 0.45 kw Total power: 15 kw Drying trolleys: 2 units Drying trays: 48 pcs Size: 2300*1200*2300 mm Weight: 600 kg Steam consumption: 18 kg/h |
|
Model: CT-C-II Capacity: 240 kg/batch Fan power: 0.9 kw Total power: 30 kw Drying trolleys: 4 units Drying trays: 96 pcs Size: 2300*2200*2300 mm Weight: 1800 kg Steam consumption: 36 kg/h
|
|
|
Model: CT-C-III Capacity: 360 kg/batch Fan power: 1.35 kw Total power: 45kw Drying trolleys: 6 units Drying trays: 144 pcs Size: 2300*3220*2000 mm Weight: 2000 kg Steam consumption: 54 kg/h |
|
Model: CT-C-IV Capacity: 480 kg/batch Fan power: 1.8 kw Total power: 60 kw Drying trolleys: 8 units Drying trays: 192 pcs Size: 4460*2200*2290 mm Weight: 2200 kg Steam consumption: 72 kg/h |
|

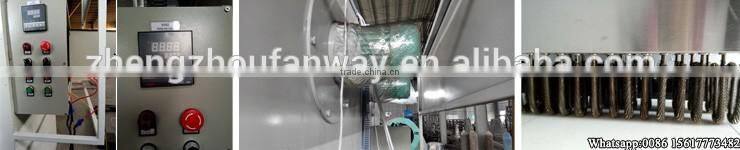

Parts of plantain chips drying machine
| Temperature controller Axial flow fan Heating pipes |

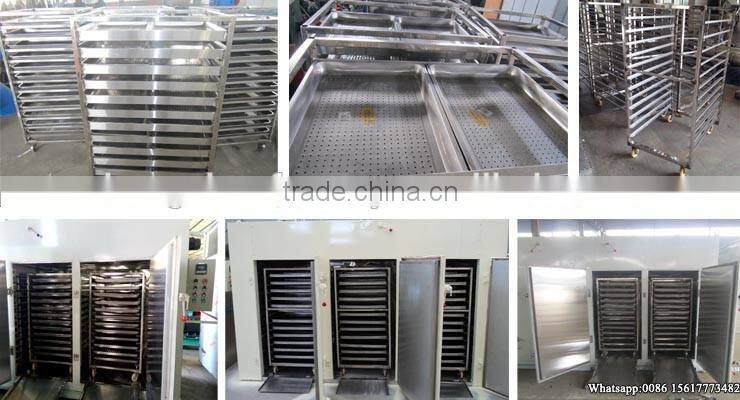

| Drying trolleys Drying trays |
Dehydrated samples of plantain chips drying machine
The drying time of this machine will vary by different materials, moisture content, sugar content, local climate, etc.
1.Fruits can be dried whole, or as slices, such as mango, papaya, and kiwi, etc. Alternatively they can chopped after drying, made into pastes, or concentrated juices.
2. Dried fruit is widely used by the confectionery, baking and sweets industries.
3. Food manufacturing plants use dried fruit in various sauces, soups, marinades, garnishes, puddings, etc.
Zhengzhou Fanway Machinery Manufacturing Co.,Ltd is a professional manufacturer of industrial hot air circulating drying machine. We have a strong and experienced steam, with more than 200 workers, engineers, and sales. Our machines have been exported to many places around the world, with good feedback and building long-term cooperation relationship with customers.

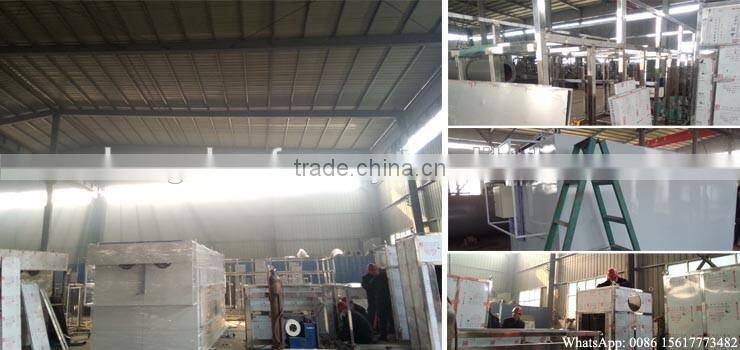

| Workshop | |||
| |

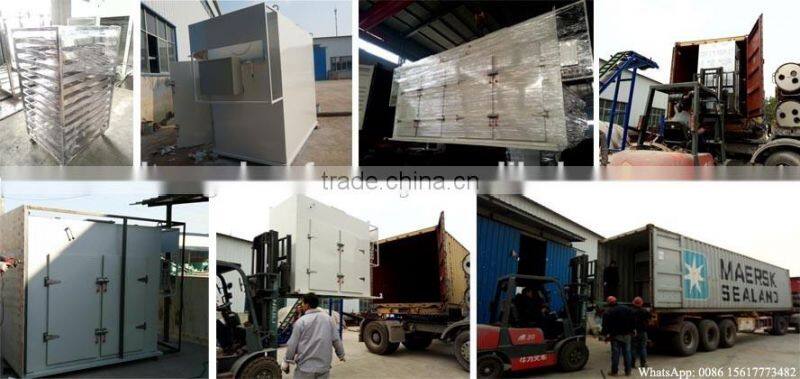

| Package | Delivery |
| |
| Heat efficiency | 1. The entire circulatory system is fully enclosed, to improve the heat efficiency from traditional 3-7% to present 35-45%, highest can reach 50%. |
| Operation | 2. Automatic temperature control system, easy to operate. Trolleys with wheels on the bottom. |
| Heating ways | 3. The heat source can be electricity, steam, gas, coal burning, or dual-use. And please note, usually the machine is equipped with electricity heating way, if choose other heating ways, the machine should work with a furnace. |
| Trolleys & trays | 4. The drying trolleys and drying trays are all made of stainless, and are included in the quotation offered. |
| Voltage to confirm | 5. Voltage can be customized. So please kindly tell us _phase, _V, _Hz when send inquiry. |
