Factory price fish feed mixer
Applied range of fish mixer
9HWS Series Double Shaft Mixer applies to the mixing of powders, granulate, flakes, and block for fodder, grain, chemical industry, medicines, pesticide and additive etc.
Product features
Short mixing time, high mixing uniformity: general materials in the mixture of 45 to 60 s per batch, cv ≤ 5% , can reduce mixing time, greatly improving the production efficiency; Mix does not produce segregation can continue to mix, material do graded phenomenon, and not because the specific gravity, particle size have bigger difference of physical properties lead to segregation, resulting in high precision mixture;
Discharge quickly, small residual amount, adopt double open the door at the bottom of the structure, so the discharge rapidly, less residue;
Large amount of liquid add; Have mixed soft, does not damage the material original features, so add hot or cold air system, as a dry, cool; With double row of chain sprocket chain drives the rotor of the two opposite rotation, transmission mechanism is unique, smooth operation, low abrasion;
Adopt unique chain tensioning mechanism, installation, adjustment fast and convenient; Slot machine adopts the unique "W" shape structure, small opening, big middle, lower part of the narrow, make chic modelling beautiful, cover an small area, less residue;
Discharging door sealing mechanism uses the mature technology, improve the sealing reliability. The standard Siemens (BEI to motor) motor, the reducer of GUOMAO.
Advantages of fish feed mixer
u Fast mixing speed and high mixing uniformity;
u Special design discharging structure, large door-open angle, swift discharging and little residue;
u Special design sealing system of discharging door, good sealing and no leakage;
u Multi-channel liquid adding system to meet multi-liquid adding demand of customer.
Technical parameters of fish feed mixer
Model |
Overall dimension(mm) |
Effective volume (m³) |
Mixing amount per batch(kg) |
Mixing time per batch(s) |
Mixing evenness CV% |
Power (kw) |
9HWS-100 |
1350*1420*1030 |
0.2 |
100 |
60-180 |
≤5 |
2.2 |
9HWS-250 |
1670*1650*1300 |
0.5 |
250 |
60-180 |
≤5 |
5.5 |
9HWS-500 |
2150*1960*1600 |
1.0 |
500 |
60-180 |
≤5 |
11 |
9HWS-1000 |
2600*2600*1860 |
2.0 |
1000 |
60-180 |
≤5 |
18.5 |
9HWS-2000 |
3150*3040*2400 |
4.0 |
2000 |
60-180 |
≤5 |
37 |

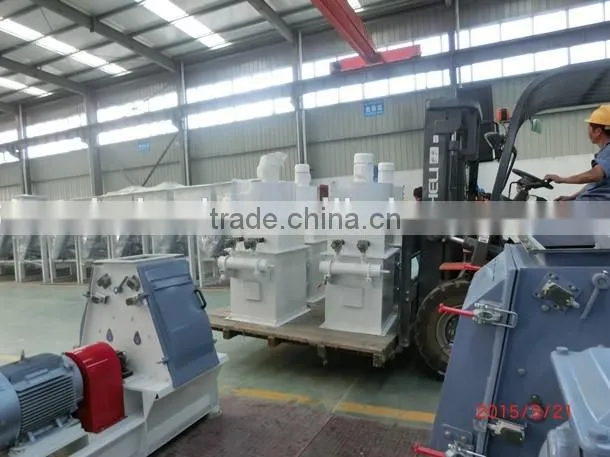

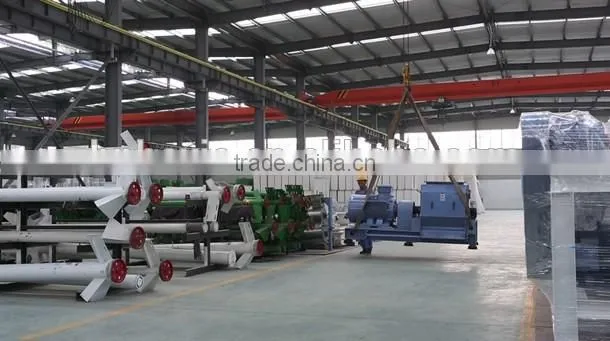

Pictures of fish feed mixer taked from our factory
Henan He Xie Machinery Equipment Co., Ltd.
Click here learn more our factory
Henan Hexie Group was established in 1992, occupying a total area of approximately 100,000 square meters and it is a diversified high-tech enterprise, engaged in research, production, sales and technical service of feed machinery, breeding equipment and animal pharmacy.Hexie Group provides a comprehensive, systematic and high-quality solutions for agriculture and husbandry industry, trying to build a grand blueprint of “ Harmonious world, world Hexie”.
More that 20 years, the group marketing network covers the business whole country in various provinces, autonomous regions, and its business has spread to South-East Asia, Central Asia, Africa, Europe, America and other 30 countries and regions, and won great trust from its customers. Welcome friends from all over the world to come for visit.
Our factory hope to establish a growing, healthy and mutually beneficial trade relationship with you!
