1-10Tons per Hour Chicken Feed Processing Machines

Henan He Xie Machinery Equipment Co., Ltd.
US$ 2,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HEXIE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai etc as your requirement
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name HEXIE
Model Number LYDM-1000M
Type Feed Pellet Machine
Voltage 380V
Power(W) 55kw
Dimension(L*W*H) 5500*2200*2100MM
Weight 10000 kg
Certification CE ISO SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

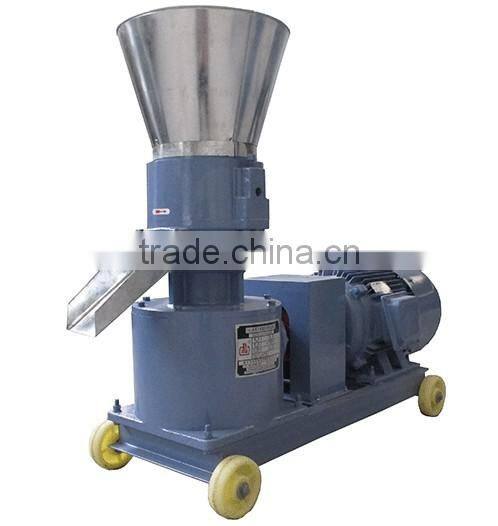

Chicken feed processing machines


Function:

*9KJ Series Flat Type Pellet Mill. After the mixer the materials through this machine and pelleted it at once time. At this processing it is no need add any hot water and no need eupiped the dryer. In the production process the material will be natural heat up to 70°the starch gelatinization, protein denaturation and clotting. The pellet curing from deep inside. Surface smooth, high hardness can be stored for a ling time.

*All screws is high strength screw with a magnitude of 8.8 -10.9. Especially the transmission assembly we in strict accordance with the standard car and the gear fastening torque is over other company about 15 times. All exposed screw galvanized with Plating dacromet surface treatment. Roller mill are all made of high quality alloy steel
*Widely used in different size of livestock, poultry, rabbit, cattle and sheep farms
Model
Drive type
Power（kw）
Roller Number
Capacity（t/h）
KJ-200
Gear drive
7.5
2
0.2-0.4
KJ-260
Gear drive
15/18.5
2
0.4-0.7
KJ-350
Gear drive
22/30
3
0.6-1.2
Products Show
Feed Grinder
Specification
66×60
66×80
Rotor diameter (mm)
660
660
Spindle speed (rpm)
2970
2970
Crushing chamber width(mm)
600
800
Hammer number(piece)
64
80
Power (kW)
55/75
90/110
Normal suction air (m3 /min)
31
57
Dimensions
2110*910*1160
2500*996*1293

Feed Mixing Machine

Pelleting Machine

Other Equipment

    SCQZ powder sieve


        Rotary distributor

SCQY scalping machine

Counter-current cooler

Extruder

Fan

Power Feed Processing Machine Unit

Model
Grinder configuration
Fixer configuration
Power
Capacity
HXFW-1000
9FQ510×200 /9FC350×120 grinder
9HWP-1000G feed mixer
33/29 KW
1-2 t/h
HXFW-1000B
9FQ510×200 feed grinder（no self-absorption）
9HWP-1000G feed mixer
34.5/30.5KW
1-2 t/h
HXFW-2000
9FQ510×200 feed /9FC350×120 claw grinder
9HWP-1000G feed mixer
33/29KW
1.5-2.5 t/h
HXFW-2000B
9FQ510×200 feed grinder（no self-absorption）
9HWP-1000G feed mixer
34.5/30.5KW
1.5-2.5 t/h
HXFW-3000
SFSP63×35 drop-type grinder
9HWP-1000G feed mixer
36KW
49.7 t/h
HXFW-4000
SFSP63×45 drop-type grinder
9HWP-1000G feed mixer
36KW
64.7 t/h
HXFW-5000
SFSP63×35 drop-type grinder
9HWP-1000D feed mixer
45KW
55.35 t/h

Feature:

HXFW-5000 SFSP63×35 drop-type grinder 9HWP-1000D feed mixer 45KW 55.35 t/h

1. Less investment, short construction period,quick effect.
2. Compact structure, cover an area of an area small, low height requirement about workshop.
3. Simple technology, convenient operation and maintenance, saving manpower.
4. Applicable to different scale farms, feed mills, choose to use

Our Company

Company introduction:

Henan Hexie Group was established in 1992, occupying a total area of approximately 100,000 square meters and it is a diversified high-tech enterprise, engaged in research, production, sales and technical service of feed machinery, breeding equipment and animal pharmacy. Its subsidiaries include Henan Hexie Feed Machinery Manufacturing Co.,Ltd, Henan Hexie Smart Breeding Equipment Co.,Ltd and Henan Hexie Animal Pharmaceutical Co.,Ltd. Hexie Group provides a comprehensive, systematic and high-quality solutions for agriculture and husbandry industry, trying to build a grand blueprint of “ Harmonious world, world Hexie”.


More that 20 years, the group marketing network covers the business whole country in various provinces, autonomous regions, and its business has spread to South-East Asia, Central Asia, Africa, Europe, America and other 30 countries and regions, and won great trust from its customers. Welcome friends from all over the world to come for visit.

Our Technology

Technology advance:


1) Process design keep up with the world development trends, according to customer requirements and the local resources situation the best technical solution design, overall layout is reasonable, the least cost of investment, every link, every detail is meticulous consideration, for the user reasonable and advanced.
2) A full set of equipment is stable and reliable quality, whole factory automation degree is high, through the advanced centralized control, implements the automatic control for production process, ensure the lowest operating cost.
3)Can built different scale full automatic feed plant, suitable for the big and middle feed product enterprise.
Model
Main engine configuration
Floor space（m）
Power
Capacity
Annual output 30,000 tons
12C-66×60-1000-350C
10×11.5×24
250 KW
5 t/h
Annual output 60,000 tons
16C-66×80-1000-420C
12×12×36
405KW
10 t/h
Annual output 120,000 tons
20C-66×60×2-2000-420C×2
12×19×28
736KW
20 t/h
Annual output 180,000 tons
24C-66×80-66×100-2000-520-PH200
12×19×29
1115KW
30 t/h
Our Certifications
Successful cases
FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer, which has almost 24 years of experience in this industry.

Q: Q: How long is your guarantee ?

A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem and experience.

Q: Will you send engineers to install the plant?

A: yes, but at an extra cost payable by the customer.
