2.2kw or 5hp 800kg/h Small Chaff Cutter Machine

2.2kw or 5hp 800kg/h Small Chaff Cutter Machine thumbnail-1
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine thumbnail-2
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine thumbnail-3
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine thumbnail-4
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine thumbnail-5
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine photo-1
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine photo-2
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine photo-3
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine photo-4
2.2kw or 5hp 800kg/h Small Chaff Cutter Machine photo-5
US$ 200 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
XT Machinery
Contact Supplier Request Quote Chat Now
Xinxiang Xingtian Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name XT Machinery
Model Number 93QS
Type Chaff Cutter
Voltage 220V
Power(W) 2.2kw
Dimension(L*W*H) 750*400*700mm
Weight 60 kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

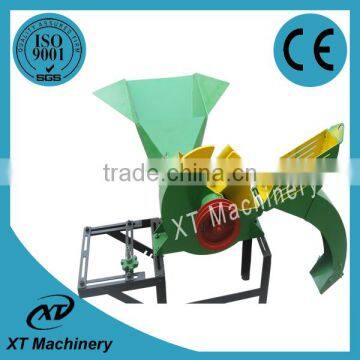

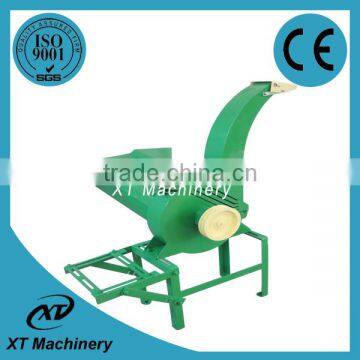

2.2kw or 5hp 800kg/h small chaff cutter machine

2.2kw or 5hp 800kg/h small chaff cutter machine

 Description



  2.2kw or 5hp 800kg/h small chaff cutter machine is generally used to chop dry or green silage/forage



such as grass, straw, vine, paddy, during dry season.



Specification

Size:               750*400*700mm

Weight:           60kg

Power:             2.2kw or 5hp

Blade Position: 0.1-0.3mm clearance between fixed and rotating blades

Cut length:       10-25mm

Capacity:         800kg/h

Blade qty;        3 pcs rotating

Belt type:        B

Belt qty:          3 pcs

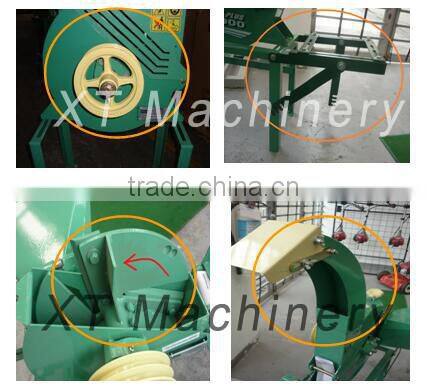

Features

1. Three rotating blades and three ventilating fins attached to this mini chaff cutter

2. Fly wheel driven by a 7'' diameter pulley with two B type belts

3. Four air-intake slots to avoid clogging

4. Robust support ready for electric motor or diesel/gasoline engine

5. Removable discharge neck
